DEGT-3500L
DEGT
8438400000

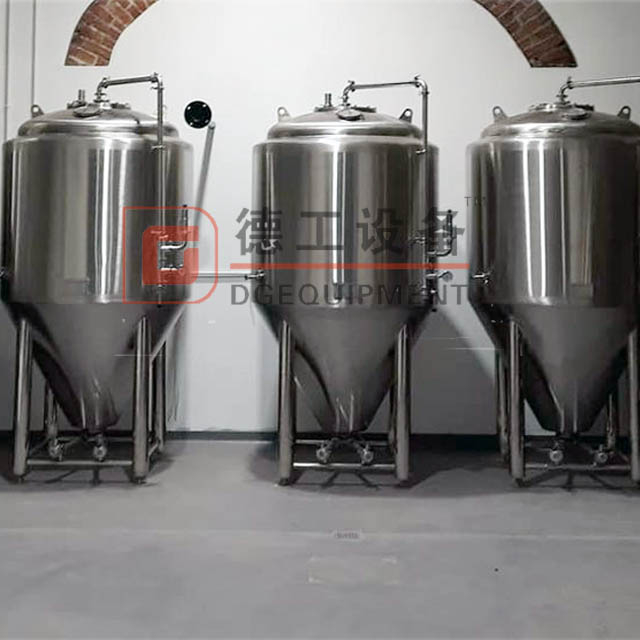

Stainless steel craft beer fermenter(fermentation tanks) are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermenters or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Fermentation tank & Bright beer tank
SUS beer conical fermenter tank for sale are also called CCT's (Cylindrical Conical Tanks),
FV's (Fermentation Vessel), beer fermenter, beer fermentation tanks, primary fermentor or unitanks, as they areused both for fermenting and lagering.
Fermenting is the process during which the yeast transforms the wort into beer.
Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Stainless steel fermenters can be individually temperature controlled through glycol jackets
and are mostly equipped with accessories such as overpressure and under pressure valve,
CIP cleaning jet, sanitary sample valve, manhole,etc.
Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)
Insulated with high density Polyurethane foam; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Dished head and 60 degree cone bottom
Sanitary side mounted manway with pressured door
TC connected CIP arm with 360° coverage spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary metallic sealed sampling valve
Mechanical safe valve PVRV 2 bar on CIP arm
Hydraulic shock pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Dry hopping port 4” TC with solid end cap
Request for special
Spundding valve. It works well at the primary fermenting period to release the exta pressure inside fermneter.
Carbonation stone: Help you do beer carbonation, thus the fermenter becomes unitank.
Level tube: this is equivocal design. some brewers like it to see the beer level, while some hate the hard cleanring it takes.
Glycol cooling system
Function: Used for cooling wort in heat exchanger when it finished the mashing in brewhouse, and cooling wort in fermentation tank in the fermenting period.
Component: Ice water tank, solenoid valve, glycol water ump, stainless pipeline and etc. It is the fourth part of 1000l industrial beer brewing equipment.
Capacity: 30bbl, the much volume you need, you will lessen the cooling time in the plate heat exchanger.
Cooling method: Two stage cooling (Glycol water and tap water work cooling).
Control method: Automatically by PLC controller cabinet.
Control system
If you want to know more, please get in touch with me.
