DGET- 300L
DGET
8438400000
DEGONG design and manufacture complete beer brewing equipment, all brewing systems can be designed according to customer’s requirement.We also can recommend a best brewing system to the customers who don't know much about the beer industry based on their brewing plan.
The 300L brewing equipment is widely used in pub, laboratory, home.The configuration is flexible depending on different working efficiency:Brewhouse combination is flexible according to your needs and daily work shift.
Features:
1.SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm
2.Tri-clamp connection for easy cleaning,sanitary hard pipe, butterfly valves, fittings
3. 25%-30% head space
4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.
5. 100% TIG welding with pure argon gas shield
6. Insulation: Polyurethane-thickness 100 mm.
7. Dished top and conical bottom
8.Temperature way：Double metal thermometer
9. Outsourcing surface: Weld polishing processing
10.Top mounted 360° coverage CIP spraying ball and port
11. Thermo well for high accuracy temperature sensor
12. 4pcs completely SUS304 heavy duty legs with leveling
13.Design Pressure:0.3mpa,Working pressure:0.15mpa
14.VFD control pumps,motor.
15.ABB motor for wort pump and hot water pump. World famous brand.
16.Electronic components are Siemens,Omron,Schneider,Danfoss brand

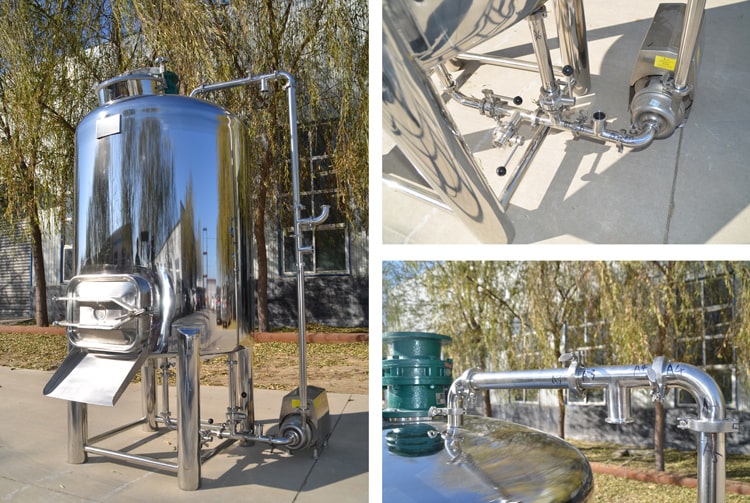

Except beer brewing equipment,we also can provide any types of stainless steel/copper brewing tanks,such as kombucha brewing tank,cold coffee tank,wine tank,distilling equipment.......And other auxiliary equipment,such as bottling machine,canning machine,sterilization machine....So if you have interest,welcome to contact me freely!
