DGET-500L
DGET
8438400000
The brewing required equipment is Miller→mashing tank→lauter tank→boiling tank→whirlpool tank→hot water tank→wort chiller→aerobic device→yeast adding tank→fermentation tank→bright beer tank→chiller→glycol tank→CIP cleaning system-control system.
Wort preparation and fermentation are the two most important parts in the whole brewing process. Wort preparation directly affects the degree of late fermentation, and fermentation directly affects the flavor and taste of the final beer.
The preparation of wort mainly includes the following processes: mashing, wort filtration, boiling, whirlpool, wort ventilation, wort cooling.
The preparation of wort will need 4 tanks with specific functions,which is mash tank,lauter tank,boiling kettle and whirlpool tank.Of course, the mashing system will contains all necessory items,such as chiller,pumps,motor,aerobic device,platform,and so on........
The 4 tanks with specific functions can be combined freely.
mash/lauter tank+boiling/whirlpool tank,Optional hot liquid tank
mash tank+lauter tank+boiling/whirlpool tank,Optional hot liquid tank
mash/lauter tank+boiling kettle+whirlpool tank,Optional hot liquid tank
mash tank+lauter tank+boiling kettle+whirlpool tank,Optional hot liquid tank
The heating method of the brewhouse can be eletric heating,steam heating and direct fire heating
Electric heating,it will need a electric heating pipe.Its advantage is save equipment cost,but for some other countries where electricity is very expensive,its using cost is expensive.Then they will choose direct fire heating and steam heating.The disadvantage of electric heating is that it is easy to occur paste pot.
Steam heating,it is the most stable and efficient heating method,but it will need a steam boiler(gas boiler,diesel boiler and electric boiler)and will add some equipment cost.
Direct fire heating method,for some countries where the electric is expensive and steam boiler using is very strict,this way is suitable.

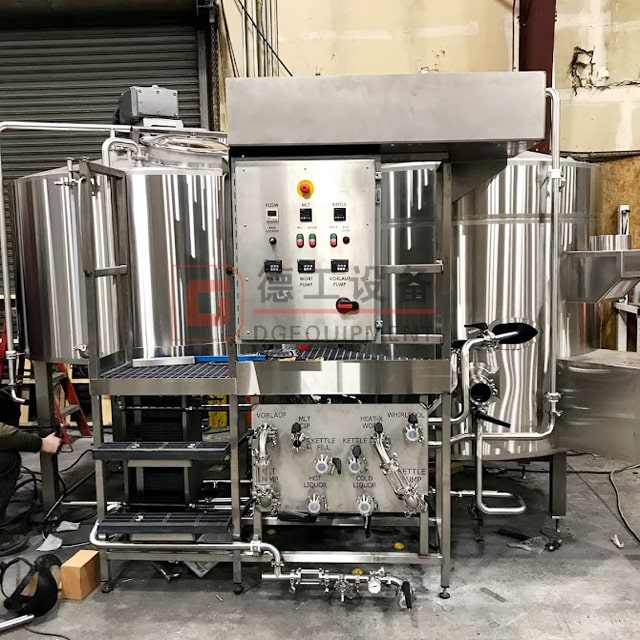

Most of our customer will choose the configuration of "mash/lauter tank+boiling/whirlpool tank,Optional hot liquid tank",so now we take it as a reference to introduce more details.
1.mash/lauter tank with Siemens VFD motor for raker,easy installation false bottom,,high accuracy temperature sensor,sparage ring and cleaning ball
2.Boiling/whirlpool tank with Siemens VFD motor for agitator,tangential port for whirlpool,with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
3.Hot liquid tank with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
Wort preparation details
Good brewing equipment is more accurate and can produce the desired beer with the minimum error. Besides, good brewing equipment will not suddenly break down during use, so as to avoid the cost loss caused by equipment failure.DEGONG always provide high quality equipment around the world.All of our equipment has passed TUV&ISO&CE&PED certification.If you are interested, please contact us for more details.
