| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Fermentation tank coolinig: | |
| Certificate: | |
| Quantity: | |

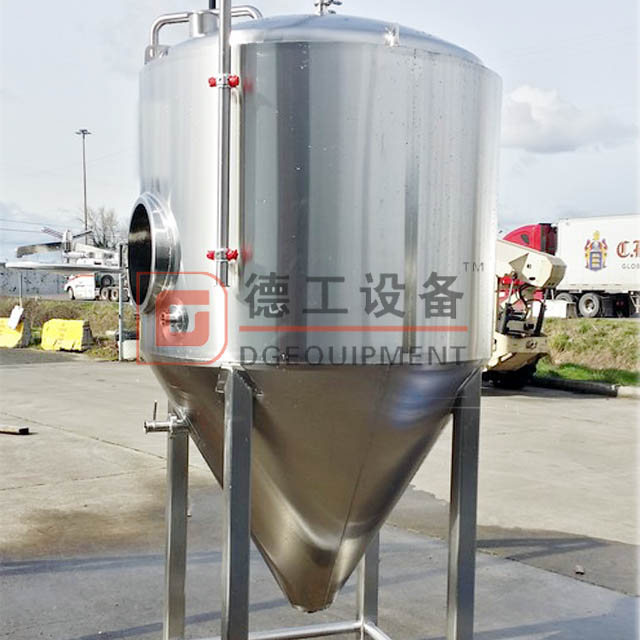

DGET-3000L
DGET
8438400000
There are three main fermentation methods, warm, cool and wild or spontaneous. Fermentation may take place in open or closed vessels. There may be a secondary fermentation which can take place in the brewery, in the cask or in the bottle.
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.4um, hygiene surface
60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top manway or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (safe valve) are standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not included)
Ladder hooks is available for special request
Dry hop ports and/or hop bag hooks in any fermenter of any size for special request
If you are would like to change, add, remove or modify any part of the tanks, we can accommodate that. Specific fitting sizes, changes and locations will be set during the design process after a deposit is taken.
mirror fermentation tank
stacked fermenter for our USA customers
the parts of fermentation tank
mechanical regulation valve&pressure valve
