20BBL commercial industrial automated beer brewing equipment for sale

From principle to manufacturing, our brewery equipment is made with our 100% attention and the state of the art manufacturing techniques. We refine every single detail of the brewery equipment to make sure it can meet customer's needs flawless. Completely sanitary stainless steel 304 for meeting the hygienic requests.

Brand :	SEW/ ABB/ Siemens/ Schneider/ Omron
Certificate:	CE ISO TUV
output:	20BBL per batch
Efficiency:	5-8 batches
Model:	DGET-20BBL
Availability:

Quantity:



Inquire Add to Basket

Model:
DGET-20BBL
Brand:
DEGONGET
Code:
8438400000

Product Description

With years of development and accumulation of capital, some of customers owning a microbrewery or homebrewery want to expand the brewery to 2000 or 2500L brewery system which typical belongs to industrial brewery system. As we all know, the configuration of brewery equipment can vary according to their different requirements. Hereby I will show you our standard 20BBL brewery system which is also customized if requested.

Production description

A set of 20BBL brewery equipment is generally consisted of 6 basic parts and additional parts if customers request. The following list indicates what the 6 parts are and what are included in each part in detail

System No.	Functions	Components
Milling system	To crush the malt so that the matters inside can be extracted easier	Grain miller Malt conveyor
Brewhouse system	Generally takes about 8 hours or so, to extract the useful matters including sugars, proteins etc... from malt by increasing the temperature	Mash/Lauter Kettle Whirlpool Wort pump Plate heating exchanger Platform
Fermentation system	The fermentaion period varies based on the type of beer. To convert the wort into beer by 2 reactions: aerobic respiration and anaerobic respiration	Fermentation tank Bright beer tank Beer hose Wort transferring pump Yeast dosing tank
Cooling system	To generate the cooling capacity for cooling down the temperature of the beer inside the fermenter and bright beer tank	Chiller Glycol water tank Cold water tank Glycol water circulation pump
CIP system	To clean each tank thoroughly after each batch or before reusing after being lying idle for long	Cart Sterilization tank Washing pump Sanitary tank
Control system	To control the whole brewing process, like the temperature of brewhouse tank, fermentation tank, etc...	Stainless steel box electric components including relys, sensors, signal wires,etc...
Accessories	Spare parts	Pipes, valves, gaskets, solenoid valves, hose, sight glass, heat insulation pipe, etc...
Auxiliary equipments	To assist brewery equipment to make good beer	It depends on customer's specific requests. Like boiler, water treatment equipment, beer filling machine, capping machine, kegs, keg filling and washing machine ,etc...

Technical parameters of 250BBL brewhouse and fermentation system

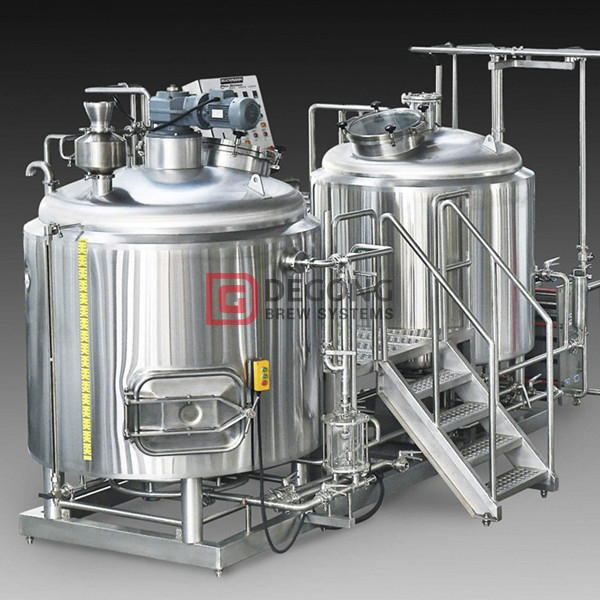

Beer brewhouse:

The brewery brewhouse is designed for brew any varieties of malt wort by the infusion method of mashing, and also the decoction method if there is an additional mash tun.

Technical parameters:

Use – mashing, mixing and wort boiling.

Position – vertical

Appearance – Cylindric, domed / conical top with conical inner bottom.

- Material body sus304

- Insulation- polyurethane 100 mm

- Cylindric and bottom milled steam heating – Max 3 bar pressure ensures 1°C/min heating speed.

- Complete pre-piped, pre-wired and test run prior to shipment.

Assembly:

- Top domed thermostatic hermetic closed glass manway door.

- Stainless steel mixer activated by 1.5 kw geardrive motor SIEMENS.

- Top domed lighted sight glass.

- Quick installed termo sensor PT100 connected to multi segments programmable controller

- Quick installed modular steam outlet condensator assembled with 0.5kw centrifugal water recycling pump for energy and water saving.

- Top domed cylindric hops grant for online hops insertion, adopted with wort circulation for effective mixing.

- Sanitary centrifugal 2.2 kw mash pump with VDF controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls X2 .

- Outlet/darainage connections –DN40

- Inlet connections –DN32

Fermentation system:

The fermentation area consists of a specific (at the customer’s choice) number of beer fermentation tank, also known as CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.

Beer fermentation tank has a cooling jacket over the entire height of the cylindrical part. CCTs from 1000 liters also have a separate cone cooling jacket. ССTs are insulated by polyurethane foam with 100mm thickness. The external covering of CCT is made of food mirror stainless steel.

The CCT is designed for internal pressure and can be used both for the primary fermentation and for the maturation (carbonation) of beer and the supply beer for filtering or bottling. The working pressure inside the CCT is up to 3 bar (can be adjusted by pressure bunging device).
