DGET-20HL
DEGONGET
8438400000
| Production description of 20HL brewing system |

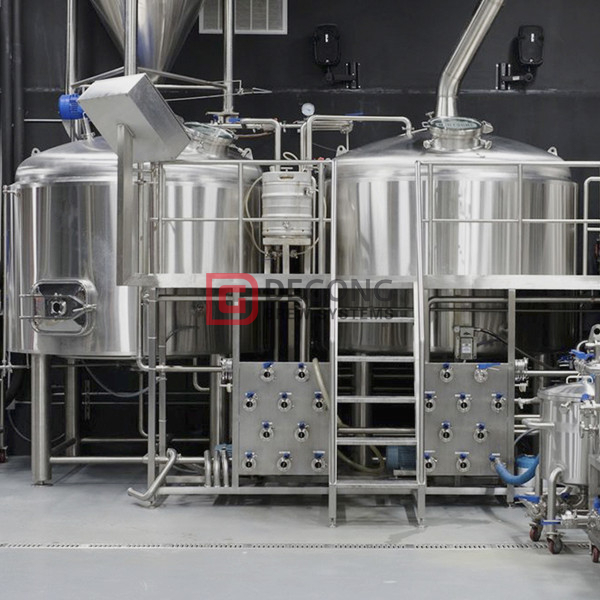

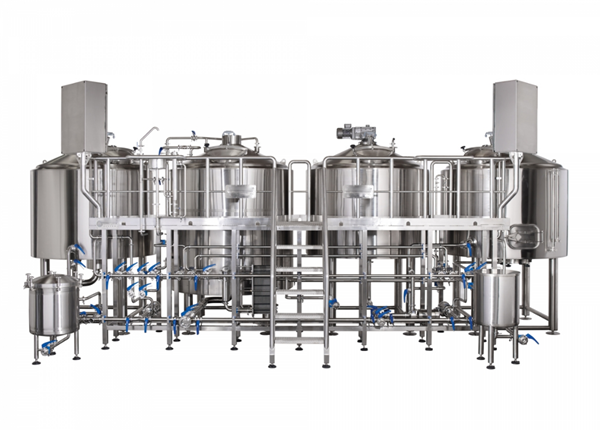

20HL brewery equipment is used for craft beer brewing. Every brewery equipment is planned and manufactured according to customers' requirements. Our R&D team has been working on the optimization of the brewing system from the principle to installation. With the 2-vessel brewhouse plush a hot water tank and a cold water tank, you can brew about 4-5 batches per day which means you can get up to 10000L beer per day. The system is semi automated so except that you need to switch the valves manually, the other parts are all automated.
| Standard configuration list of the 20HL brewing system |
| 40HL cold water tank | |||
| Main features of the system |
Mash/Lauter tun:
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
- Top domed thermostatic hermetic closed glass manway door.
- VFD agitator motor SIEMENS.
- Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.
– Quick installed Spray CIP balls.
Kettle/Whirlpool tank:
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.
– Quick installed Spray CIP

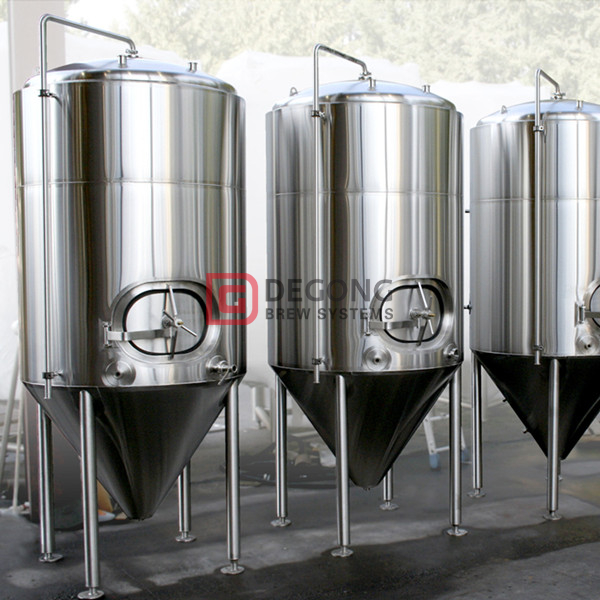

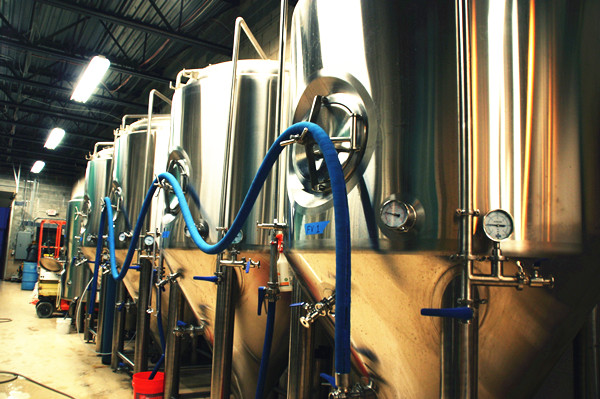

Fermentation tank
- Stainless steel 304 sanitary construction
- 100% TIG welded and sanitary polished
- Design pressure: 1.5-2 bar, test pressure: 3bar
- 4 heavy duty stainless steel legs with adjustable height and leveling footpads
- Interior shell: 304 stainless steel , thickness is 3 mm
- Interior is 2B and exterior finish bright polish, sanitary surface
- Tri-clamp sanitary fitting
- Vacuum & pressure relief valve
- Pressure gauge
- Thermometer gauge
- Sample valve
- Lifting lugs
- Ladder hooks, also designed to hold brewers hose when not is use
- Side manhole
- CIP arm and rotary spray ball 360 degree of coverage
- Dual zone cooling jacket with glycol inlet and outlet
- Rotation racking arm
- Dry hopping hole

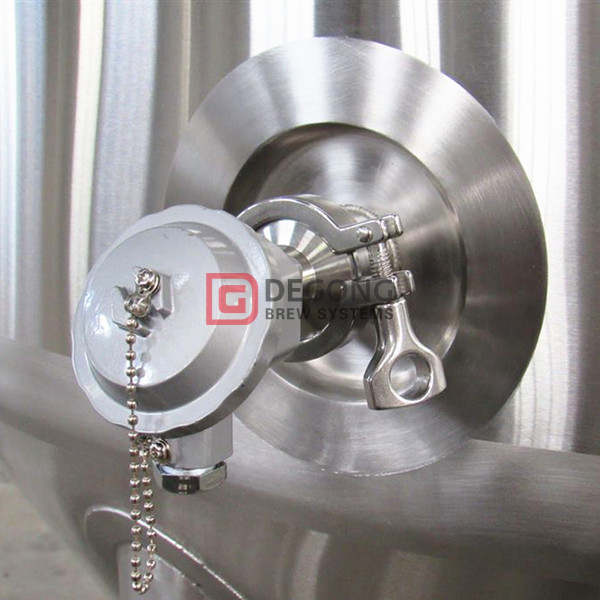

- Thermo-well (Temperature sensor is also included)
| Detailed pictures |
| Our services |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
| FAQ |
Q1.Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement.
Q2.Does your company offer OEM service?
Yes, We offer OEM service
Q3.What is your MOQ?
We do not have MOQ requirement for most of our products.
Q4.How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.
Our warranty is 1 year (Except the wearing parts)
Q5.Do you make product other than made of stainless steel?
We made stainless steel products only
Q6.Logistics mode
Shipping by Sea, By air, By Courier (DHL/UPS/FEDEX/TNT)
Q7.Payment
T/T, L/C, PAYPAL, ALIBABA ONLINE ORDER, CREDIT CARD, WESTERN UNION
