200L Nano Brewery Microbrewery Brewing System Homebrew Supply Near Me

The 200L equipment is very suitable for small bars and restaurants , as well as small breweries that sell fresh beer locally. There are more and more people who like to drink fresh beer, so there is a great demand for fresh beer in many barbecue restaurants. In order to retain a better flavor, fresh beer generally does not undergo sterilization and filtration, so the shelf life will not be very long. Therefore, the brewery providing fresh beer is generally not very large,  100L-500L equipment is the most suitable.

DEGONG beer brewery brewhouse come in multi-vessel configurations and feature SUS 304 construction with a brewer’s platform, wort pumps, grant, and heat exchanger. Our brewhouse systems are available in custom capacities and include automatic and semi-automatic controls.

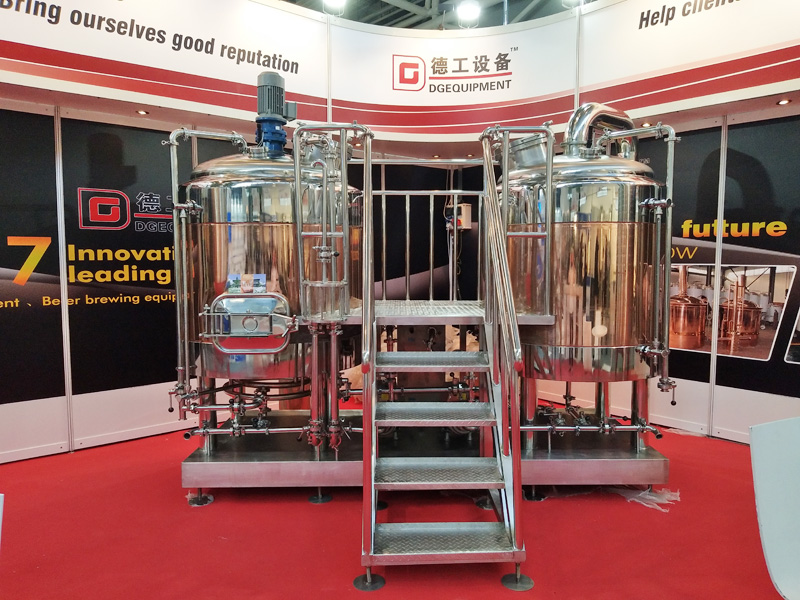

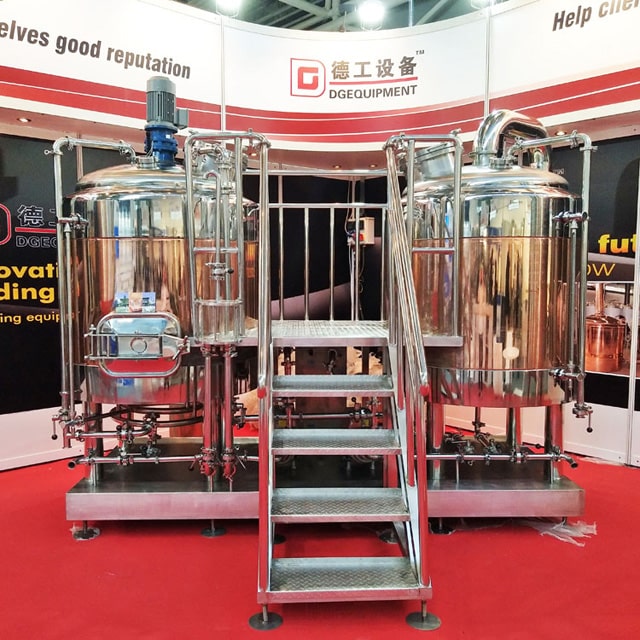

Introduction of mashing system

DEGONG brewhouse equipment is ideal for breweries of all sizes within craft brewing. We offer individual pieces of equipment including grist cases, mash and lauter vessels, boil kettles and whirlpools, both custom and used, as well as complete turnkey systems. We also offer full support, from brewery sizing to delivery and installation.

Heating method

• Steam heating:More efficiency,suitable for 1000L and more than 1000L brewhouse

• Electric heating:Save cost,suitable for brewhouse under 1000L

• Direct fire heating:If electric and steam is not convenient for the brewery,so we can choose direct fire heating

Component

mash/lauter tank with VFD Siemens/ABB Motor(Raker)

boiling/whirlpool tank with VFD Siemens/ABB Motor (Agitator)

hot liquid tank(Optional)

VFD CONTROL Pumps

Two stage plate heat exchanger

Operation platform

Hops filter

Aeration system

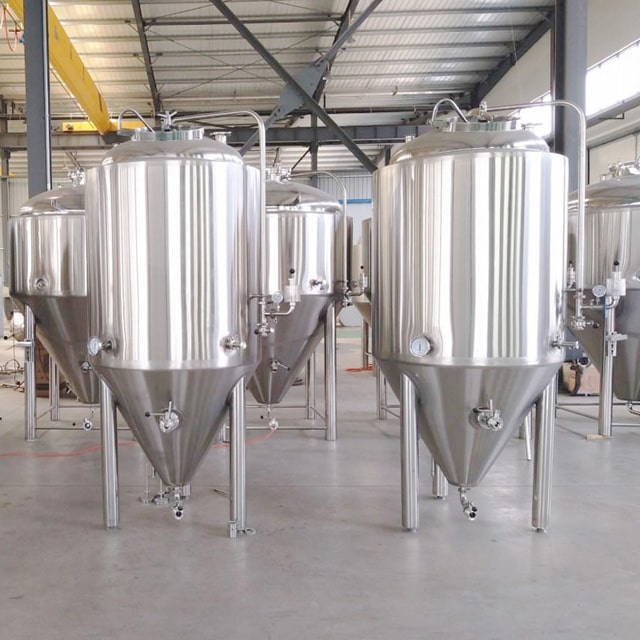

Introduction of fermentation tank

Fermenters can be customized based on brewhouse scale.We usually configure same capacity with brewhouse or double size of brewhouse. They are built for sanitary construction from 304 stainless steel; 60° cones with fully rotating racking arm assemblies come standard, along with dry hop ports and separate CIP and blowoff downpipes. Mechanical valve&pressure to supervise and adjust pressure in the tank.Sample valve on the tank’s body to check the fermentation degree.The outlet of the tank comes with a fully removable 3” port reducer to make yeast cake removal easier, and all tanks are fully jacketed and insulated for glycol cooling,temperature sensor to show the temperature in the fermenter.

A list of commen fermentation tank,so that you can check if it is suitable to your room.We can change according to your requirement.
