DGET-200L
Degong
8438400000
Quick view
Processing:
| Beer brewing | Applicable Industries:
| Hotels, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops
|
After Warranty Service: | Video technical support, Online support, Field maintenance and repair service | Condition: | New |
Place of Origin:
| Shandong, China
| Brand Name:
| DEGONGET |
Processing Types: | Alcohol | Voltage: | 380V or customized |
Power(W):
| 15-70Kw depends on capacity
| Dimension(L*W*H): | Depends
|
Weight: | Various in different models | Certification: | CE ,ISO,TUV |
Warranty:
| 3 years
| After-sales Service Provided:
| Field installation, commissioning and training, Engineers available to service machinery overseas
|
Equipment Material: | SUS304 or Red Copper M2 for outer shell | Thickness of Tanks: | 3mm for inner container/2mm for outer shell |
Color Availabl:
| Mirror SUS, Luxury red copper
| Heating:
| Electric/steam/direct fire heating
|
Heat Insulation: | Polyurethane with Thickness 80mm-100mm | Inner Polishing Precision: | 0.4 Micrometer |
Volume Design:
| 200L | Controlling System:
| PLC; HMI or Touch Panel |

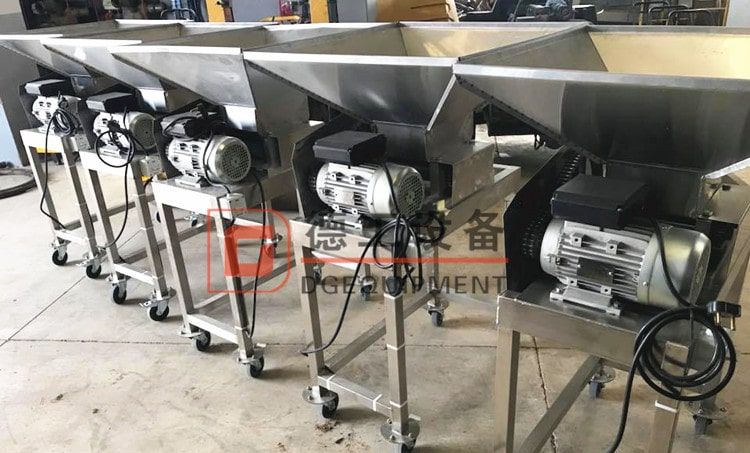

Malt miller
Particle adjustable rolling crusher
Flexible or steel auger for optional
300-500kg/h
Doubel roller
Nosie: 45db or so

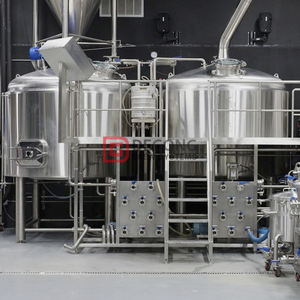

Brewhouse system
200L Mash/Lauter tun
200l Kettle/whirlpool tun
Steam heating method
Tubular glass level indicator
Tangential wort inlet
Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Heating exchanger: 10 square meters
Wort pump: ABB motor, VFD control
Wort aeration device
Yeast adding tank: 30L
Seamless food grade stainless steel 304 pipes

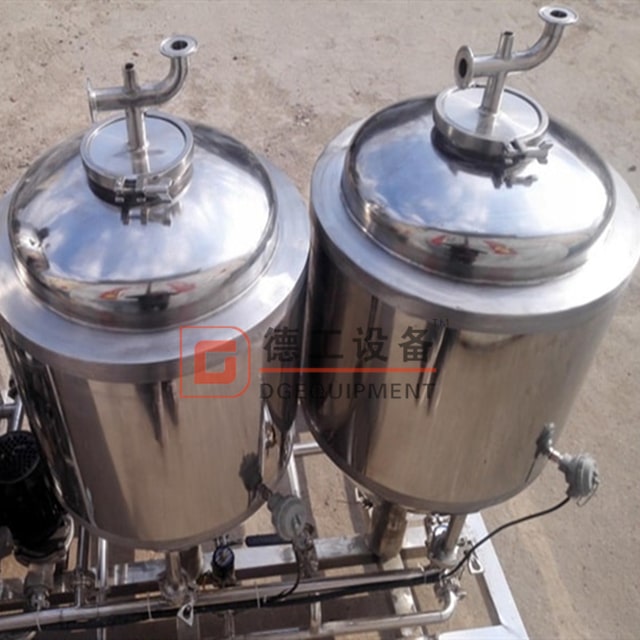

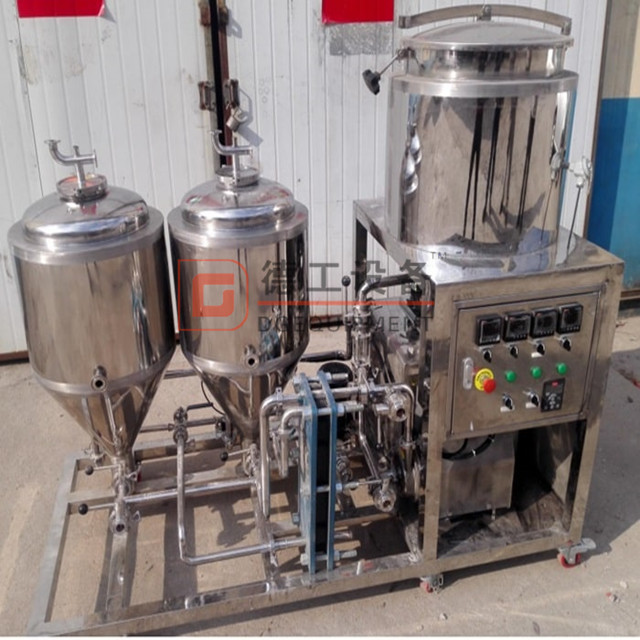

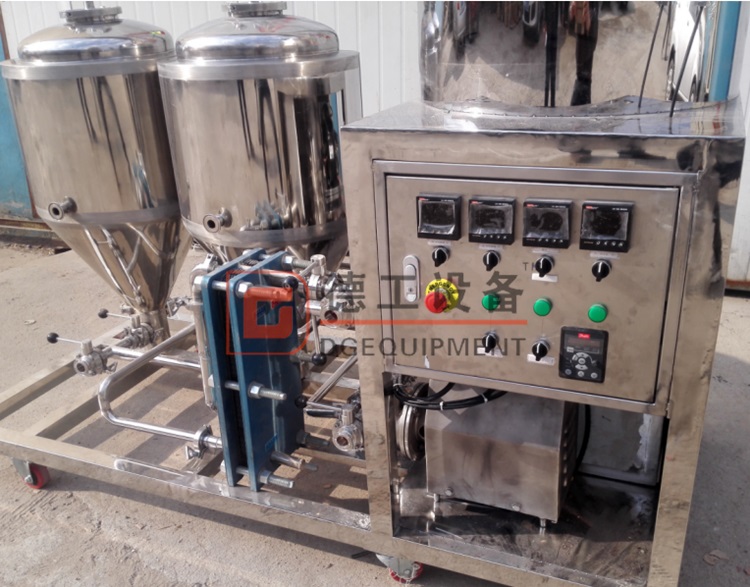

ALL in one equipment
The all in one beer brewing equipment is turnkey system with electric heating. It is easy to operate and you just need to connect it with power.The matrial can be choose from stainless steel and red copper.

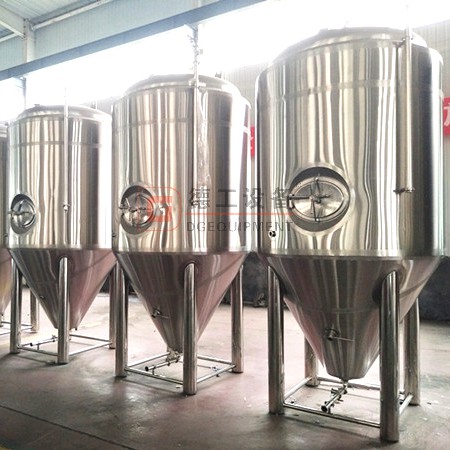

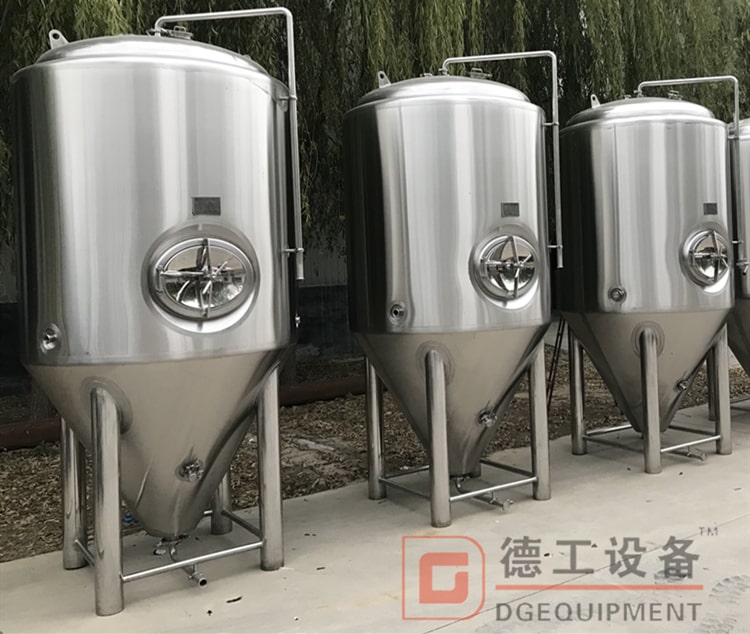

Fermentation tank
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm.
Surface: Finish2B – cold-rolled, annealed, pickled
Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Equipment with : cone 60°resist compression design，dripping 10.Temperature drop.
Cleaning System: All-round cleaning
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar
Cooling system
Cooling system is always consisted of circulation pump, glycol water tank and chiller. How to equip a suitable cooling system depends on the quantity and capacity of fermenters. The glycol water tank is for filling the glycol water. And the chiller is for generating the cooling capacity to reduce the temperature of the glycol water heated during the process of fermentation.

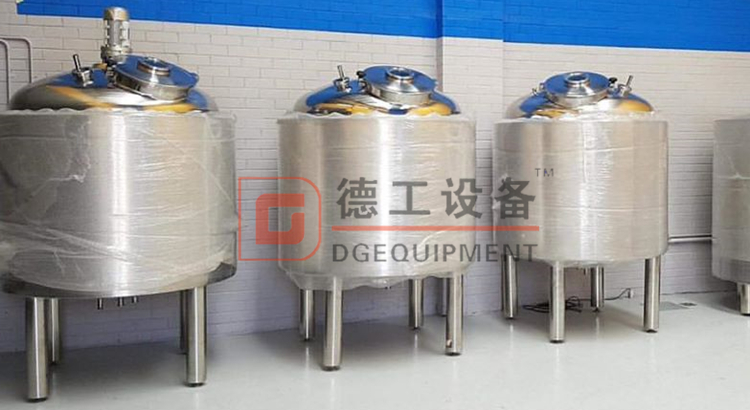

glycol water tank

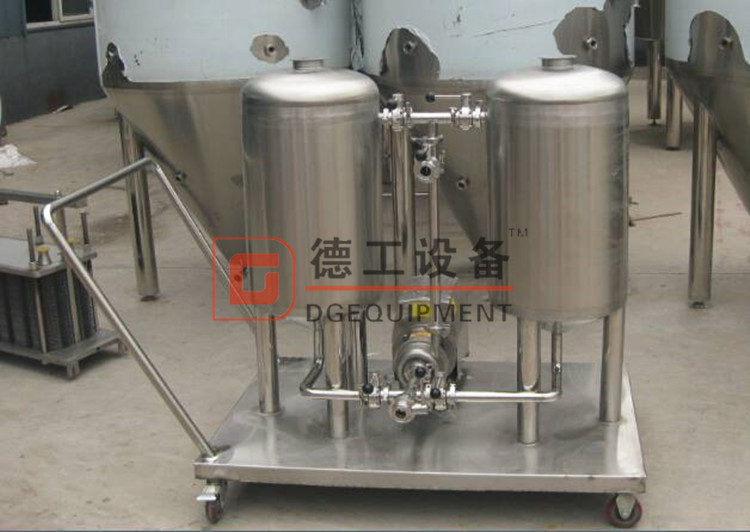

CIP system
CIP system is generally consisted of 2 tanks which are separately sanitary tank are alkali tank. For most micro brewery equipment, CIP system is with 4 wheels at the bottom of platform so it is removable. There is also a washing pump so that the mixture liquid or sole liquid can be transferred to clean tanks.

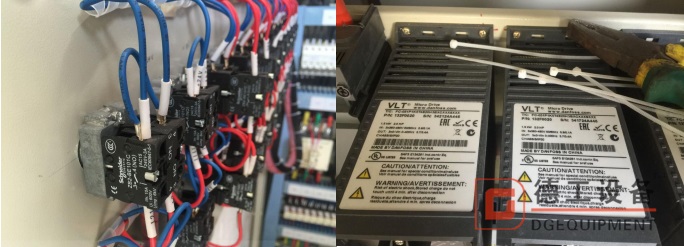

Control system
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.
control cabinet
Why choose us
Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.
Delivery
Time is vital for both of us,so we have professional team work and production line to make sure the delivery in time.
Certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components which all reach the food sanitary standard for customers. The quality, specification and function all meet the treaty of contract.
Contact us
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
Email:michelle@degonget.com
Whatsapp:+86 13656462501
Cellphone:+86 13656462501
