2000L stainless steel beer brewery equipment three vessels steam heated brewhouse with bottom agitator for Sweden

The 2000L beer brewing/brewery equipment is made for a Sweden customer.The brewhouse is 3 vessels brewhouse(mash/lauter tank,boiling/whirlpool tank and hot water tank) with bottom agitator.The pumps,agitator,raker will be controlled by VFD.The componont of the control panel is Siemens,Omron,Schenider,and it is accord with TUV standard.All of the material is food grade stainless steel 304.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000


2000L stainless steel beer brewery equipment three vessels steam heated brewhouse with bottom agitator  for Sweden

The 2000L beer brewing/brewery equipment is made for a Sweden customer.The brewhouse is 3 vessels brewhouse(mash/lauter tank,boiling/whirlpool tank and hot water tank) with bottom agitator.The pumps,agitator,raker will be controlled by VFD.The componont of the control panel is Siemens,Omron,Schenider,and it is accord with TUV standard.All of the material is food grade stainless steel 304.


8


Specifications

SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm

Optional heating style of steam, electric and direct fire for brewhouse tanks

Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard

VFD controlled reducer and wort pump

Assembly sanitary rotary spray balls for cleaning

PU insulation,thickness:100mm

Temperature sensor(RTD) in a thermowell

Rake and mash agitator assembly with top/bottom reducer



Component of beer brewery equipment



                                                                               Mill System


01

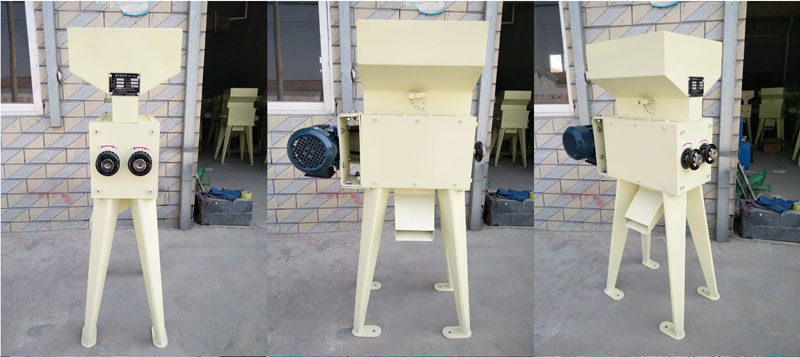

Mill Machine

1 piece

500-800Kg/h;

Breaker Roll Type; Adjustable mill degree;

Power:2.2kw; Voltage:230V; Model:Fm-011;

Faster Roller Speed: 700rpm

Crushing Particle Size: Adjustable

Ratio of Magnetic Metal Material:≤0.003g/kg

Temperature of Rollers after Production:≤56℃

02

Malt screw  auger

1 piece

Capacity:1000kg-3000kg/h;

Power:1.5Kw;

photobank


                                                                              Mash system

Name

Size/ Volume/ Quantity

Technical Parameter

3 vessels brewhouse

mash/lauter tank

Boiling/whirlpool tank

Hot water tank

Double wall stainless steel

Gross capacity:2600L

Useful capacity:2000L

Outer :Ø1700 mm;

Total height: 2600 mm;

Top of tank manhole size:φ350

Filter board gap≤0.7mm

Mix power:1.5KW

Mixing ratio:1:43
– 1pc


1.Material:Inner(SUS304),thickness:3.0mm; Out(SUS304),thinckness:2.0mm;

2. External-Jacket(SUS 304 thickness: 3.0mm;

3. Cylinder (sharp type, SUS304), thickness: 3.0mm.

4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.

5. 100% TIG welding with pure argon gas shield

6.  Insulation: Polyurethane-thickness 100 mm.

7. Dished top and conical bottom

8. Glass top manhole

9. Temperature way:Double metal thermometer

10. Outsourcing surface: Weld polishing processing

11. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

12. Top mounted 360° coverage CIP spraying ball and port

TC Easy clean

13. Stainless steel laser cutting False Bottom/Filter

14. Thermo well for high accuracy temperature sensor

15. 4pcs completely SUS304 heavy duty legs with leveling

16. Grain rake with VFD controled motor and gear reducer .

17. The use of advanced inverter control of motors, energy-saving mute. The Motor speed can be controlled and adjusted by transducer.

18.With sight light on top



Wort pump

VFD CONTROL;

ABB MOTOR



– 1pcs



Capacity:5000L/h

Stainless steel 304 food deliver pump;  Power1.5KW,  lift38m, Rev2880r/min

The use of advanced inverter control of motors, energy-saving mute. The Motor speed can be controlled and adjusted by transducer.





Hot water pump

VFD CONTROL;

ABB MOTOR



– 1pcs

Capacity:5000L/h

Stainless steel 304 food deliver pump;  Power:1.5KW,  lift:38m, Rev:2880r/min

The use of advanced inverter control of motors, energy-saving mute. The Motor speed can be controlled and adjusted by transducer.



Detailed description of brewhouse pipeline

– 1set

1.Hard pipings: Sanitary SUS304; Self-draining

Inline sight glass for checking wort clarity and color

2.12 meter sanitary reinforced brewery hose with TC

adaptors

3. Pipe filter keeping hot break from heat exchanger

4.Complete valves, fittings and all parts

5.Every weld to a smooth sanitary finish

6.Stainless steel manually butterfly valves TC

7.Steam piping &steam components for special

Two stage plate heat exchanger

30㎡  1 pieces

Function: Wort cooling

1.Two stages for glycol water and city/cold water (single

stage for optional)

2.Completely 304 SS Corrugated plates

3.Stainless steel back plates (Carbon steel cover for

optional)

4.Full detachable for regular thorough cleaning

5.Effective Cooling Area: 30M2

6.Design Pressure: 1.0Mpa

7.Design Temperature: 170

8.City water, glycol water, wort inlet and outlet

9.Size: 310*425*1010mm



Operation platform

–1set

Platform frame is constructed entirely of stainless steel with a stainless diamond plate deck. A stainless watertight electronics enclosure is mounted to the back of the platform. Stairs are constructed of stainless steel diamond plate deck material. Safety rail is constructed of stainless steel tube



External wort Grant

1set

Features: Buffer tank avoiding negative pressure in

lauter tun

1. Total wort volume approx 50L

2. Hinged stainless steel cover

3. Sight levlel glass

4. Drain valve

5. 304 stainless steel

6. All 38 sanitary tri-clamp connections



Wort aeration assembly

–1set

Features:

1. Stainless steel pipe assembly

2. Aeration stone

3. O2 10mm NPT ball valve O2 disconnect

4. 38 Sanitary tri-clamp connections

5. Built in sight glass

Hops filter

1set

Features:

1.Superior SUS 304

2.The hops can be fully filtered out

3.Filter Precision is 80-200um

4.Type:DN25-DN100


1




Fermentation system


Code

Name

Size/ Quantity

Technical Parameter

01

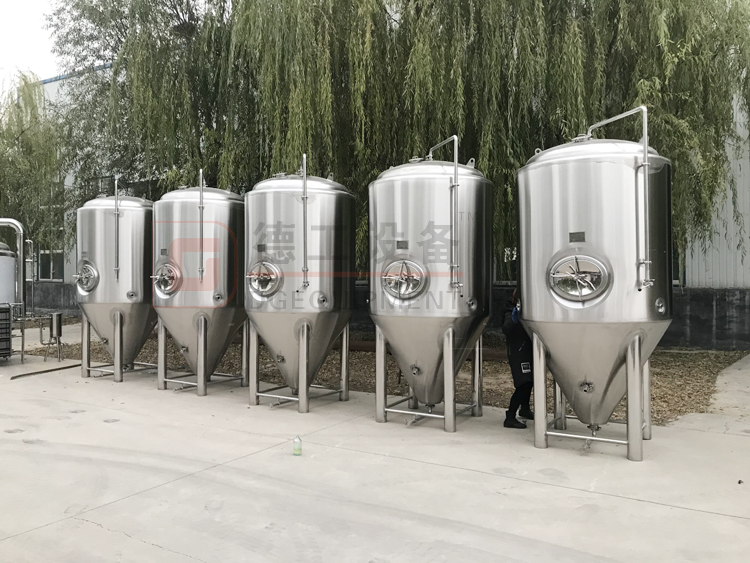

Fermentation tank

-5pcs

Double wall stainless steel tank;

Gross capacity:2500L

Useful capacity:2000L               Outer :Ø1500mm;

Total height: 3300 mm;

1. Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

2. External-Jacket(SUS304) thickness: 1.5mm;

3. Oval head cone bottom, thickness: 3.0mm.

4. Heat exchange area:5.1㎡

5. Equipment with : cone 60°resist compression design,dripping

6. 100% TIG welding with pure argon gas shield

7. Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

8. Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)

9. Interior full polished to 0.2~0.4 μm without dead corner

10. Insulated with high density Polyurethane foam 100mm

11. Glycol Jacket: Dimpled plate on cone and side

12. Stringent tank leakage test by water and pressured gas

13. Stringent Jacket leakage test by water and pressured gas

14. Sanitary side mounted manway with pressured door

15. TC connected CIP arm with 360° coverage spraying ball

16. CO2 blow-off arm with butterfly valve

17.Full sanitary metallic sealed sampling valve

18.Mechanical safe valve PVRV 2 bar on top

19.Hydraulic shock pressure gauge on CIP arm

20.Rotating racking arm and port on cone with butterfly valve

21.Tri clamp discharge arm with butterfly valve

22.Thermowell for high accuracy temperature sensor

23.4pcs completely SUS304 heavy duty legs with leveling

pad and legs support

24.Complete valves, fittings and all parts

25.Dry hopping port 4'' TC with solid end cap

26.Sanitary level tube and valves TC for special request

27.Pressure gauge Thermometer gauge Sample valve Dry Hop Port


7

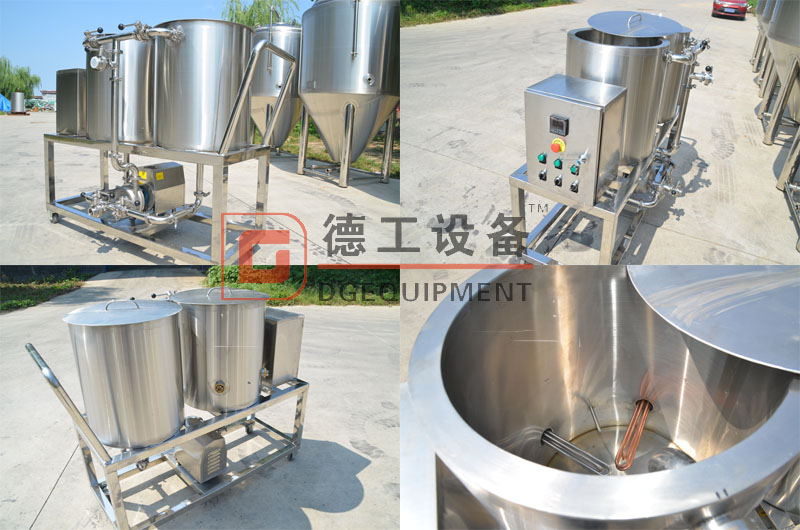

                                                                  Cleaning system


01

Washing pump

3000l/h

1pc

SS anticorrosion pump, Power0.75KW lift:18m Rev:2880r/min

02

Alkali tank

Useful capacity200L

– 1pc



Inner surface treatment:  welds grinded to Ra 0.6µm.

Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



03

Sterilization tank

Useful capacity:200L

– 1pc



Stainless steel304, thickness: 2mm

Inner surface treatment:  welds grinded to Ra 0.6µm.

Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



04

Control box

– 1pc

Cabinet Material: Anti-power Plastic painting

Assembling Style: Wall mounted Type

Electrical Components: World wide brand CE

certificated

CIP pump on/off

Heating elecment on/off

Temperature controller for special request

Auto on/off Timer for heating for special request

VFD control for CIP pump for special request


CIP

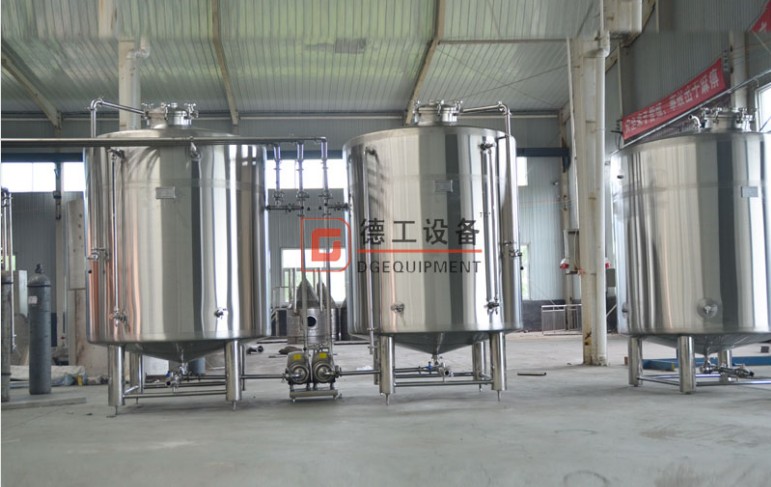

                                                                                                      Cooling system


01

Glycol tank

– 1pc

1.Material: Inner(SUS304),thickness:3.0mm;

Outer:2.0mm(Stainless steel);

2.Insulation: Polyurethane-thickness 100mm.

3.Temperature mode: PT100 temperature probe,temperature transmitting, temperature control panel display

02

Cold water tank

- 1pc

1.Material: Inner(SUS304),thickness: 3.0mm;

2.External-Jacket(SUS 304 thickness: 1.5mm;

3.Cylinder (sharp type, SUS304), thickness: 2.0mm.

4. Inner surface treatment: welds grinded to Ra 0.4µm.

5. Insulation: Polyurethane-thickness 100 mm.

6. Temperature wayDouble metal thermometer

7. Outsourcing surface: Weld polishing processing

8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

9.CIP 360 degrees Omni bearing cleaning

03

Refrigerating unit

-1pcs


Medium:Freon R-404A

Working voltage:230V


04

Circulate pump

– 2pcs

 Flow:3 m3/h, Lift:25m, Power:0.75KW;

Cooling

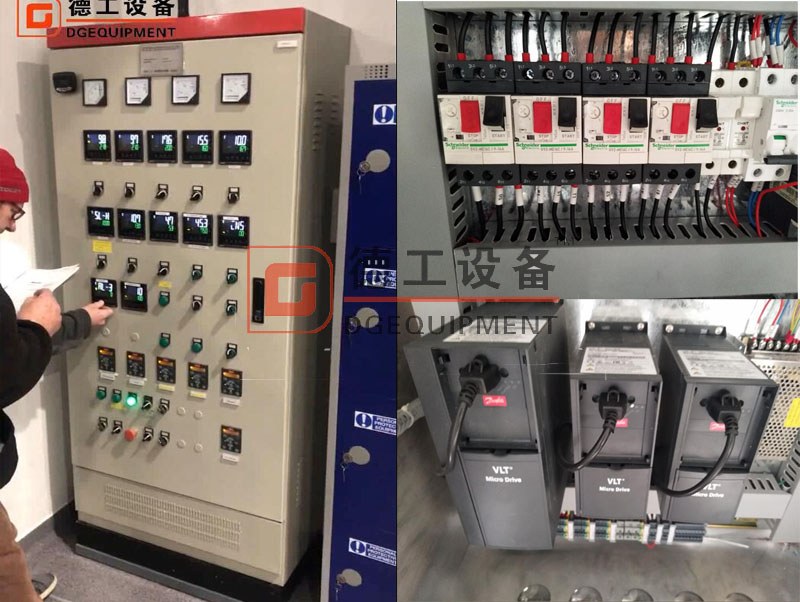

Control system

01

Mashing control

Manual operate

Instrument

Semi-Auto-control

European standard

Siemens,Schneider,Omron component

1 set



Mixing, rotation, wort pump

02

Fermenting control

Temperature, pressure, lamp

03

Cooling control

Machine unit, pump, temperature

04

Cleaning control

Cleaning pump

05

Miller control



control1 (2)

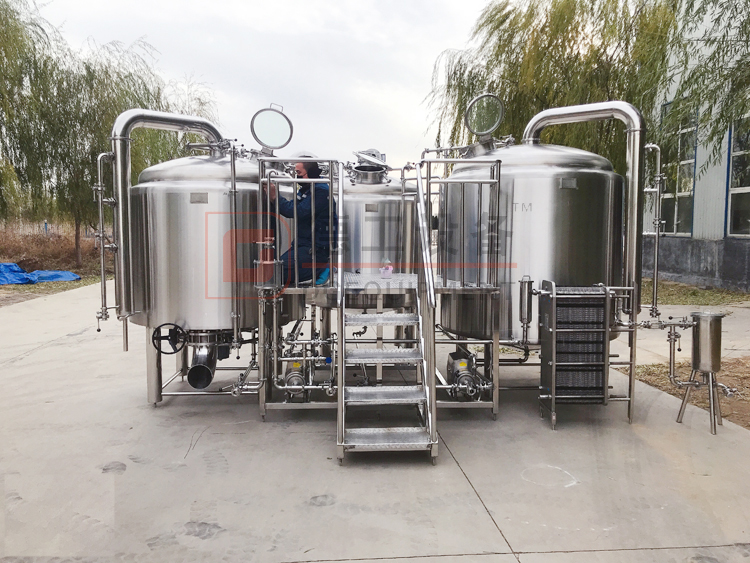

 Our equipment shows in customer's brewery



20190703163950605060

20190703164013131313

20190703164077337733

20190703164197319731

Delivery




FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we dont know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.

Auril
