DGET-2000L
DGET
8438400000

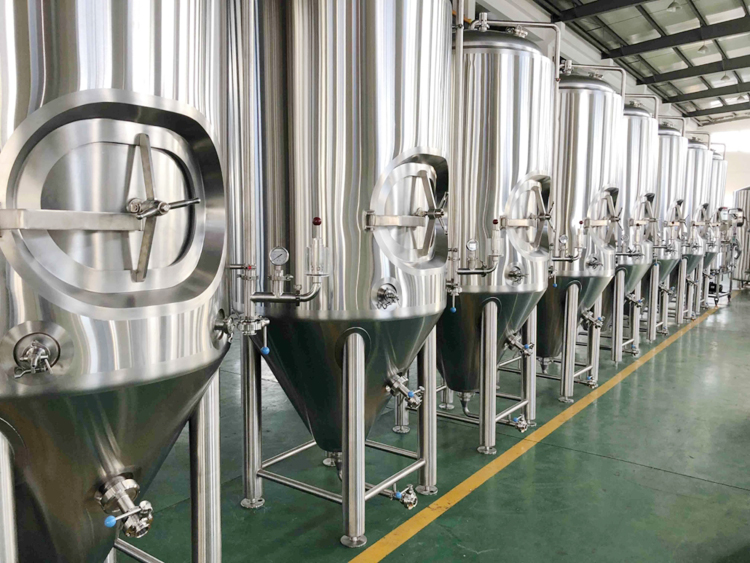

Beer fermentation tank is also known as Uni-tank ,the different point is that a combination use tank of fermentation tank and brite beer tank, which can carbonate CO2 into the unitank fermenter
Uni-tank with cooling jackets, insulation and cone bottom. All welding is done under protection-gas atmosphere; inside properly ground, outside ground, cooling jackets welded.Stainless Steel Fermentation Tank completed with a top dished head, fabricated going over to the body in rounding off shape.
| Dimensions | We can provide normal dimension if customer dont have special requirement.If have,we will Design suitable dimension according to customer’s requirement. |
| Capacity | Nominal capacity plus 25% |
| Top Head | Dished head |
| Lifting Lugs | 2 lifting lugs |
| CIP | Removable CIP & fixed spray ball (180° up, 65mm) on 1½” TC with 1½” TC line down to working height |
| Wall | Inner thickness 3mm;Outer thickness 2mm. |
| Bottom Cone | 60° cone angle, ”1½ knuckle radius to cone |
| Cooling Jacket | On sidewall and bottom cone – number of zones determined by tank size Maximum 0.3MPA working pressure, 1” to 1½” FNPT inlet / outlet |
| Legs | 4pcs completely SUS304 heavy duty legs with leveling pad and legs support |
| Insulation | 100mm polyurathane |
| Manway | Top manway or side manway |

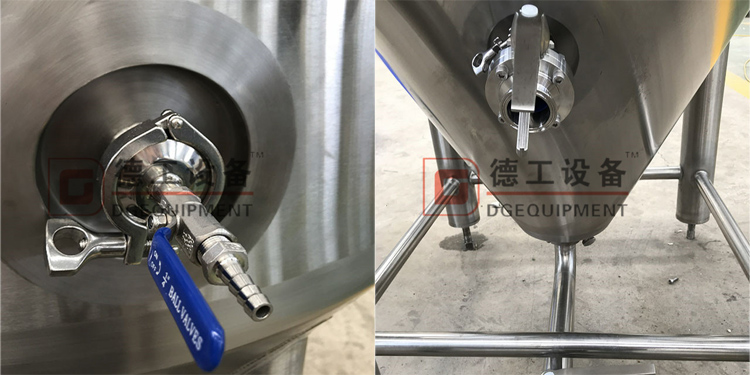

| Drain | 1½” TC butterfly valve c/w “J” pipe |
| Tank Material | All quality inspected 304 stainless steel alloy |
| Exterior Finish | 2B with all welds ribbon polished |
| Interior Finish | 2B with all welds TIG welded with heat stain removed |
| Tank Pressure | Maximum 0.3Mpa |

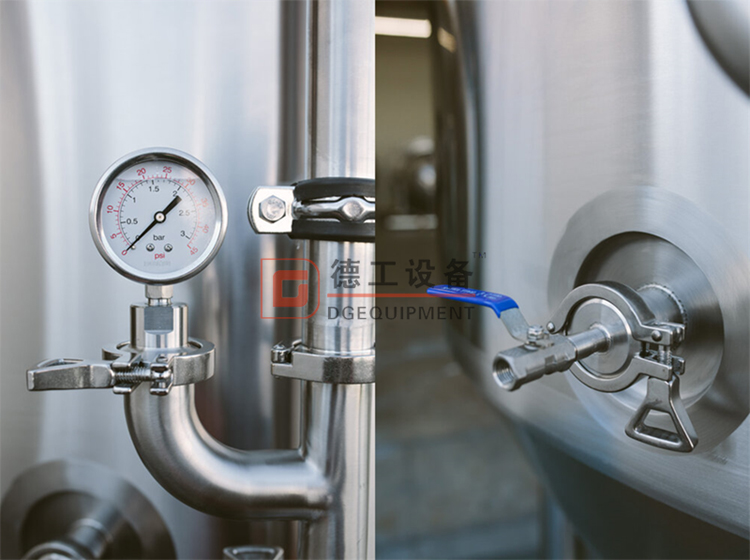

| All accessories on tank | •Full sanitary sampling valve •1½” TC Vacuum Pressure relief valve on top head •Mechanical relief valve 2 bar on CIP arm •Shockproof pressure gauge on CIP arm •Dry hopping port with solid end cap •Thermowell for high accuracy temperature sensor •1½” Raking arm •carbonation stone •1½” TC RSL Sample valve |
Main Features of 2000L beer fermentation tank/vessel:
Inner Shell: 4mm, 304 Stainless Steel
Outer Shell: 2mm, 304 Stainless Steel
Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar), designed to suit all types of craft breweries.
Inner cooling jacket design pressure 29psi (2 bar).
25% headspace for fermenting process.
Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish).
Shell and bottom cone cooling jacket for better temperature control.
Pillow Plate on shell body and cone; Omega laser welded and inflated.
Hook outside on the shell for ladders.
Other customization possibly available upon request.
