2000L professional industrial automated steel beer brewing equipment in Sweden

Production description

Our 2000L brewery equipment absorbs the mature,advanced beer brewing technology from Europe and USA ,and upgrades and improves the technology to meet different needs on taste, production or process. The whole system includes brewhouse system, fermentation system,cooling system, control system, CIP and Milling system .

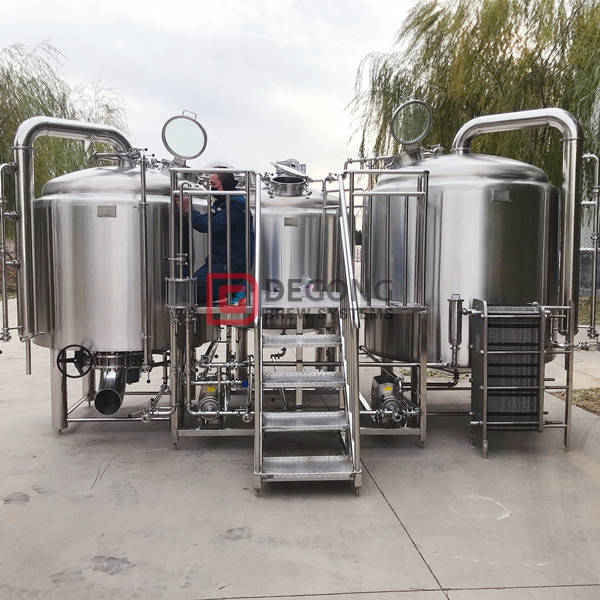

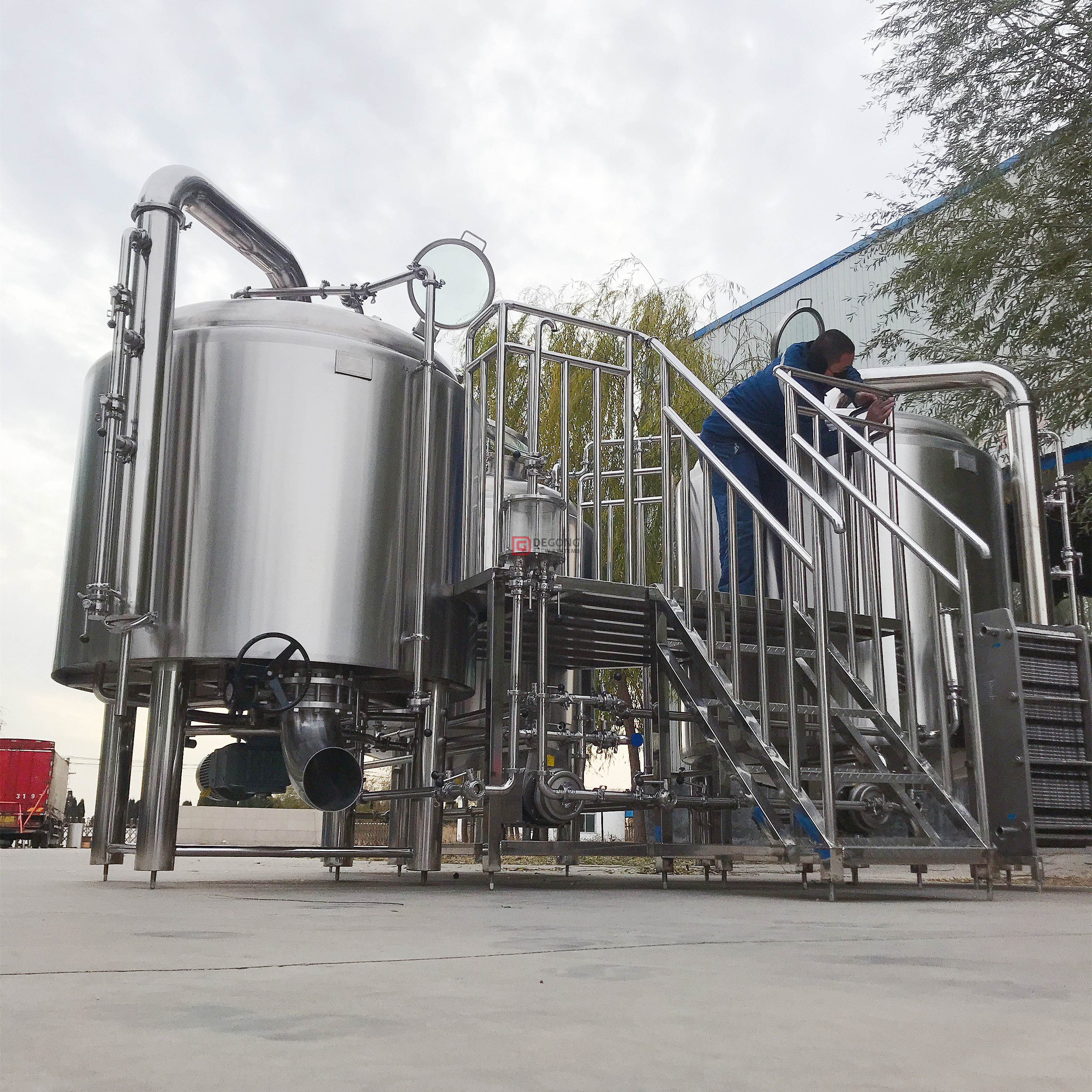

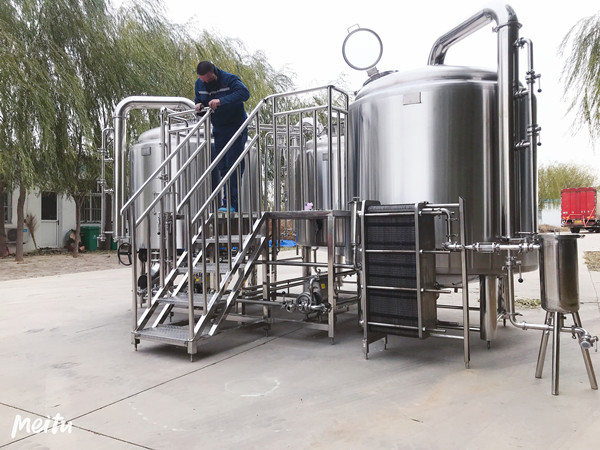

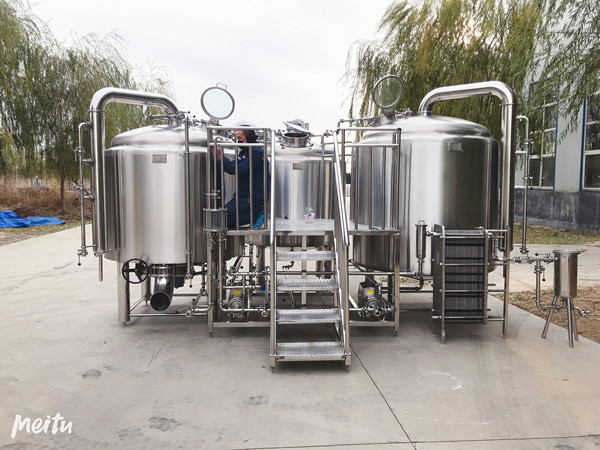

Gallery

Configuration list

Equipments Request	Components
1. Milling System	Malt Miller
2. Mashing System	Mash/Lauter Tun
	Boiler/Whirlpool tun
	Hot water tank
	Heat Exchanger
	Wort Pump
	Stiring Device (Optional)
	Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;
3. Fermenting System	Fermentation Tank
	Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;
4. Cooling System	Ice Water Tank
	Refrigeration Machine (Chiller)
	Centrifugal Pump
	Evaporator
	Ice Water Pump
	Relative Pipes and Valves
5. CIP System	Washing Tank
	Sterilization Tank
	Pump and Valve
6. Filter System	Kieselguhr Filter
	Membrane Filter
	Filtered Beer Tanks
7. Packing System	Fresh Keg Packing Machine
	Pop Can Packing Machine
	Glass Bottle Packing Machine
8. Controlling System	Mashing Control Panel
	Fermenting Control Panel
	Refrigerating Control Panel

Technical parameters

Brewhouse system:

25% head space reserved

Inner - stainless steel 304, thickness: 3.0mm

Outer- stainless steel 304, thickness: 2.0mm

Dimple jacket- stainless steel 304, thickness: 1.5mm

VFD wort pump and motor of raker & blender

Grist hydrator

Grain sight glass

Temperature controlled method

Insulation: PU, thickness: 100mm

Mirror polishing for inner surface

LED stackable light

Skid-proof working platform

CIP arm of 360 degree coverage

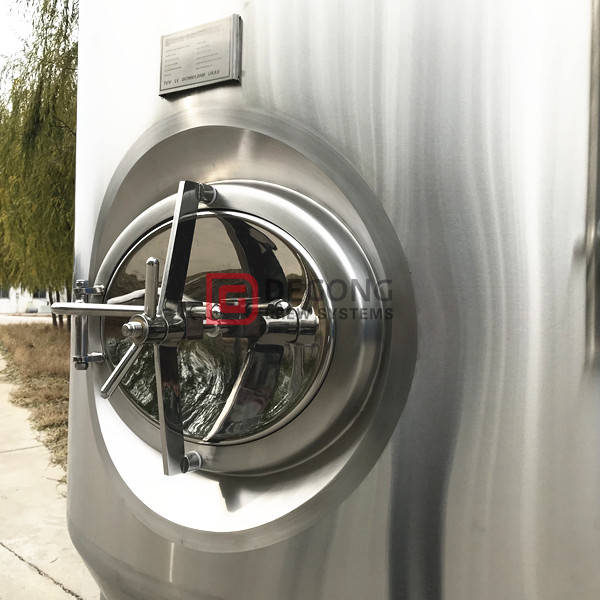

Tempered glass manhole

Fermentation system:

100% TIG welded with argon gas

25% head space reserved

Inner - stainless steel 304, thickness: 3.0mm

Outer- stainless steel 304, thickness: 2.0mm

Dimple jacket- stainless steel 304, thickness: 1.5mm

60 degree conical angle

Insulation: PU, thickness:100mm

Dry hopping hole

Vacuum valve

Pressure gauge/manometer

Thermometer/temperature sensor

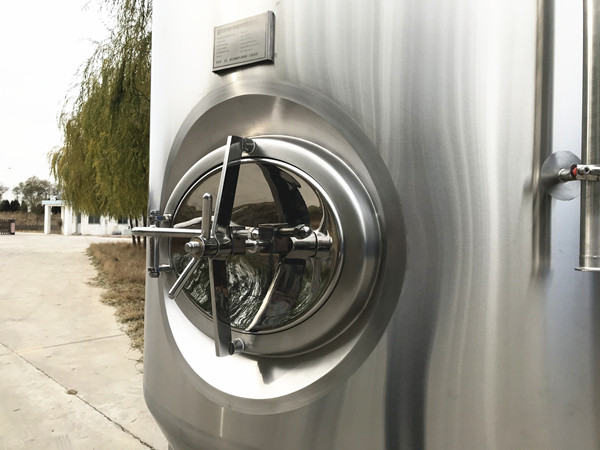

Side manhole

Mirror polishing for inside surface

Electronic flow meter

Sample valve

Racking arm

Dual glycol water cooling zones

Tubular glass level meter

Working pressure: 1.5-2 bar

Design pressure: 3 bar

Features

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Certificates

Our services

♦ Pre-sale:
Recommending suitable equipment according to customer requirements;customized process flow drawing;to design site layout according to the customer work site;craft beer project cost benefit analysis;providing several success project for your reference.

♦ Sale of services:
Timely communication with customers about equipment production schedules;guide customers to do site preparation work;to help customers handle the relevant business license procedures;help customers check and acceptance of the equipment,and coordinates delivery equipment

♦ After sale service:
Professional engineers free guide for installation;teach craft beef brewing technology;provide a variety of craft beer brewing recipe;supply of raw materials ;lifetime technical support



♦ Pledge:
From the customer contracted to buy our equipment the company will establish a special project file for tracking service.Our professional and technical service.Our professional and technical services staff will provide 24-hour technical support,if you have any questions,our technical staff will provide you with a reasonable solution at first time;make a solution within 12 hours if complex situations,engineer go to the scene to resolve the problem to ensure the normal operation of your equipment.
