From principle to manufacturing, our brewery equipment is made with our 100% attention and the state of the art manufacturing techniques. We refine every single detail of the brewery equipment to make sure it can meet customer's needs flawless. Completely sanitary stainless steel 304 for meeting the hygienic requests.

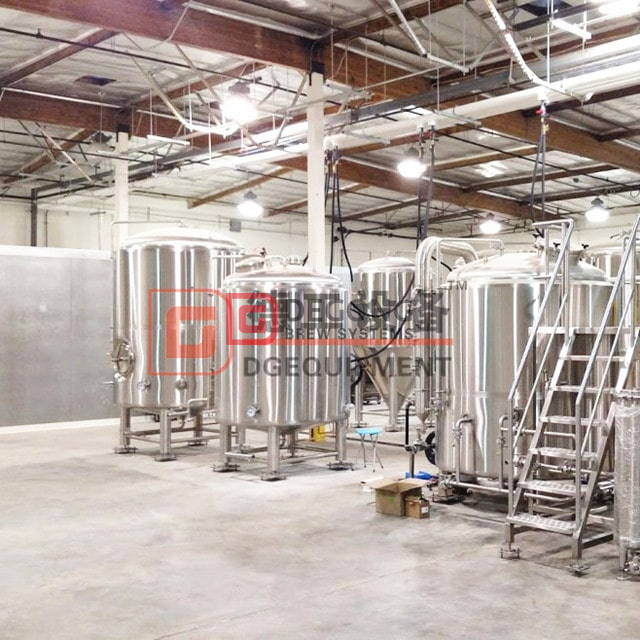

With years of development and accumulation of capital, some of customers owning a microbrewery or homebrewery want to expand the brewery to 2000 or 2500L brewery system which typical belongs to industrial brewery system. As we all know, the configuration of brewery equipment can vary according to their different requirements. Hereby I will show you our standard 2000L brewery system which is also customized if requested.
A set of 2000L brewery equipment is generally consisted of 6 basic parts and additional parts if customers request. The following list indicates what the 6 parts are and what are included in each part in detail
|Milling system||To crush the malt so that the matters inside can be extracted easier|| |
|Generally takes about 8 hours or so, to extract the useful matters including sugars, proteins etc... from malt by increasing the temperature|| |
Plate heating exchanger
|Fermentation system||The fermentaion period varies based on the type of beer. To convert the wort into beer by 2 reactions: aerobic respiration and anaerobic respiration|| |
Bright beer tank
Wort transferring pump
Yeast dosing tank
|Cooling system||To generate the cooling capacity for cooling down the temperature of the beer inside the fermenter and bright beer tank|| |
Glycol water tank
Cold water tank
Glycol water circulation pump
|CIP system||To clean each tank thoroughly after each batch or before reusing after being lying idle for long|| |
|Control system||To control the whole brewing process, like the temperature of brewhouse tank, fermentation tank, etc...|| |
Stainless steel box
electric components including relys, sensors, signal wires,etc...
|Accessories||Spare parts||Pipes, valves, gaskets, solenoid valves, hose, sight glass, heat insulation pipe, etc...|
|Auxiliary equipments||To assist brewery equipment to make good beer||It depends on customer's specific requests. Like boiler, water treatment equipment, beer filling machine, capping machine, kegs, keg filling and washing machine ,etc...|
|Technical parameters of 2000L brewhouse and fermentation system|

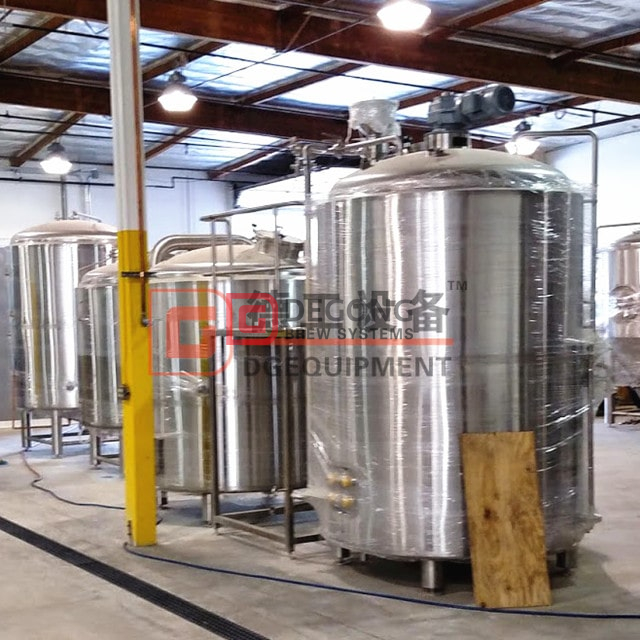

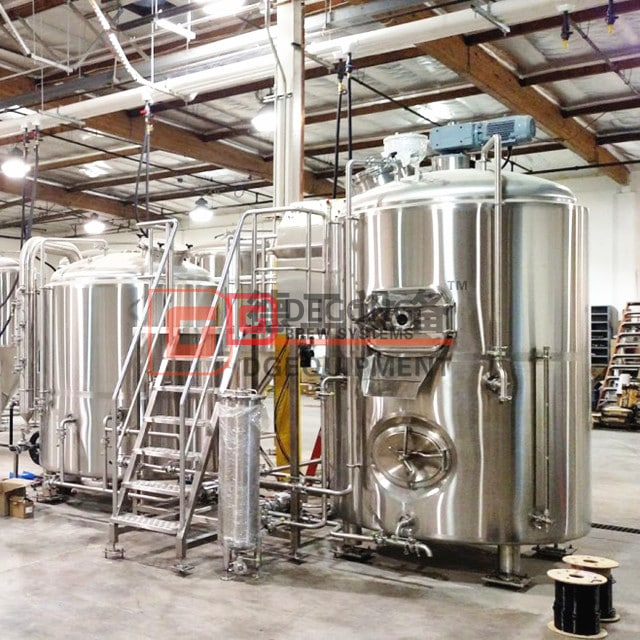

The brewery brewhouse is designed for brew any varieties of malt wort by the infusion method of mashing, and also the decoction method if there is an additional mash tun.
Use – mashing, mixing and wort boiling.
Position – vertical
Appearance – Cylindric, domed / conical top with conical inner bottom.
- Material body sus304
- Insulation- polyurethane 100 mm
- Cylindric and bottom milled steam heating – Max 3 bar pressure ensures 1°C/min heating speed.
- Complete pre-piped, pre-wired and test run prior to shipment.
- Top domed thermostatic hermetic closed glass manway door.
- Stainless steel mixer activated by 1.5 kw geardrive motor SIEMENS.
- Top domed lighted sight glass.
- Quick installed termo sensor PT100 connected to multi segments programmable controller
- Quick installed modular steam outlet condensator assembled with 0.5kw centrifugal water recycling pump for energy and water saving.
- Top domed cylindric hops grant for online hops insertion, adopted with wort circulation for effective mixing.
- Sanitary centrifugal 2.2 kw mash pump with VDF controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls X2 .
- Outlet/darainage connections –DN40
- Inlet connections –DN32
Top or side manhole which depends on customer’s request
Dry hopping hole
Pressure relief valve
Pressure bunging device
CIP spraying ball
Carbonation stone assembly
Cooling jacket inlet & outlet
Q1.Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement.
Q2.Does your company offer OEM service?
Yes, We offer OEM service
Q3.What is your MOQ?
We do not have MOQ requirement for most of our products.
Q4.How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.
Our warranty is 1 year (Except the wearing parts)
Q5.Do you make product other than made of stainless steel?
We made stainless steel products only
