DGET-2000L
DGET
8438400000
2000L Brewpub brewery system
Capacity:2,000L
Material:SUS304/316/
Heating method:Steam Heating
Welding：100% TIG welding
Polishing：Inside mirror polishing to 0.4-0.6μm
Configuration/Specification can do customized
The complete brewing system for brewpub mainly includes:
Malt miller, Brewhouse system, Fermentation system, Cooling system, CIP cleaning system and controlling system.
| 2000L brewpub Brewery system Unit | |||
| Items | Machines | Capacity | Quantity |
| Milling System | Malt miller | 500-800kg/h | 1 pc |
| Grist Conveyor | 1 pc | ||
| Brewhouse | Mash Tun | 2,000L | 1 pc |
| Lautering Tun | 2,000L | 1 pc | |
| Boiling kettle | 2,000L | 1 pc | |
| Whirlpool Tank | 2,000L | 1 pc | |
| Hot liquid tank | 4,000L | 1 pc | |
| Plate heat exchanger | 20M2 | 1 pc | |
| Transfer Pumps | 3M³/H | 5 pcs | |
| Fermenting | Fermenting vessel | 2,000L/4,000L | ≥6pcs |
| Bright beer tank | 2,000L/4,000L | 2pcs | |
| Cooling system | Glycol tank | Depends on customer's configuration | 1 pc |
| Chiller | Same as above | 2 pcs | |
| Pumps | 3M³/H | 2 pcs | |
| CIP Station | Alkali tank | 1 | |
| Sterilization tank | 1 | ||
| Pump | 1 | ||
| Control system | PID/PLC cabinet | Brewhouse/fermenting | 1 or 2 |
| Other Accessories | Including pipes, valves, flow meter,gauges and more | ||

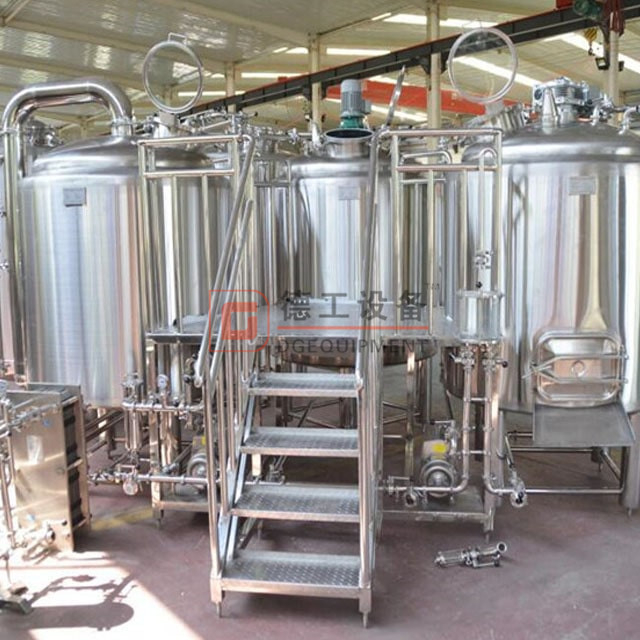

2 vessels brewhouse with HLT
This set of 2,000L brewery brewhouse is combined with Mash/lauter tun + Kettle and whirlpool tank and hot liquor tank, cold liquor tank, which was designed and installed for commercial brewery. The configuration as follows.
2,000L Brewhouse Unit
Mash/Lauter tun, Kettle and whirlpool tank
Single stage stage heat exchanger for wort cooling
Sanitary SUS 304 wort pump and HLT pump
Special designed balance tank horizonal, full stainless steel
Water leaking work platform
4,000L hot liquor tank/cold water tank
Eelectric heating through electric flange
Sanitary centrifugal pump for hot water transfer
Level gauge
6 * 2,000L Fermentation Unit
Standard stainless steel 60 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
2*2,000L Bright Beer Unit
Standard stainless steel 150 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
Stainless steel fermenting vessel side manway shadowless
