We manufacture and supply brewhouse sizes from 50L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.
|Thickness of material (mm):|
By learning each brewers individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.

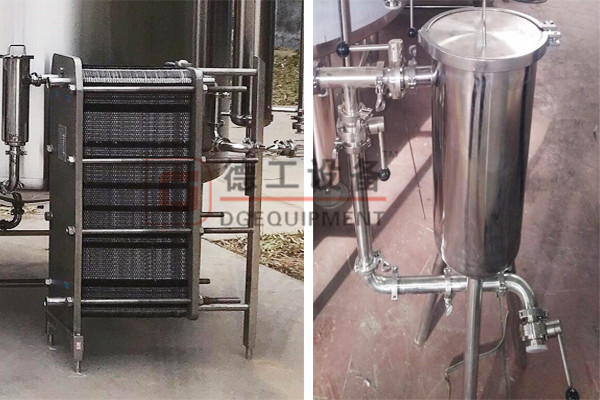

A set of brewhouse system with plate heat exchanger
|Features of brewery equipment|
The wort brew machine consists of the following components:
Functional tanks :
1. Mash tank / Wort boiling tank / Whirlpool tank – Multifunction vessel for the mashing of malt grains in watert and for the boiling of wort with hops. The tank is equipped with the tangential inlet for the final centrifugal separation of hops from wort.
2. Filtering tank – the tank wit special sieve to separation of malt rests from wort before boiling wort with hops.
3. Heating tank – tank equipped with electric heating elements and the oil heat exchanger serves to the heating of water, mash and wort.
Basic equipment :
Main frame for easy transport of pre-assembled machine
Removable stairs for easy access to the tanks and control elements
Pipe system with valves, filters, sightglasses a control elements
Heating system for mixing and boiling of wort based on oil as a heat transfering medium with the electric heating elements
Integrated wort cooler (optional accessory) with the aeration candle
Electric system for measuring and manual or automatic control of the wort brewing process
Control panel with touch display (only semi-automatic and fully-automatic version)

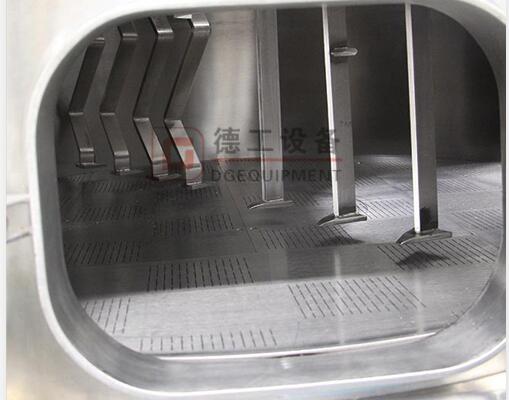

False bottom filter
Optional equipment (for surcharge) :
Condenser of vapors from the wortbrewing process with the stainless steel ventilator and regulation system (optional accessory)
Lift mechanism of the stirrer in the filtering tank (optional accessory)
Malt humidifier (optional accessory)
Special centrifugal pump designed for high temperatures up to 115°C with the cooling system of the shaft seal with very long lifetime and liquid anti-leak protection (optional accessory)
Electric switchboard cabined made of stainless steel (optional)
Induction flowmeter (only for the semi-automatic and fully automatic versions)
Stainless steel 304
Internal and outer surface finish
Interior Shell: 2B/mirror plate; TH=3mm
In argon protective atmosphere / grind and polished
Polyurethane 100 mm
ABB stirring motor
Heat exchanger and yeast add tank
Brewhouse system components
The fermenter has a dimple jacket in both the cone and the barrel.
This ensures that efficiencies are maximized and time needed to control the temperature of your product is minimized. Available in several finishes, our tanks not only serve to raise the bar on production standards, they can also be customized to visually represent the quality and attention to detail put into the product our clients produce.
The outer and inner tank is constructed using high quality sus304 stainless steel and features a glycol cooling jacket which acts to boost glycol cooling performance, and to maintain lower lagering temperatures.
304 stainless steel, 2B finish
Conical bottom standard at 60 degree; other options are available
Fixed stainless steel legs and bases with adjustable legs
Large diameter legs;
Preformed dimple cooling jackets within cladding
Shadowless manway standard
Stainless steel pressure/vacuum relief valve
Shell and cone insulated and clad
Pressure gauge and outlet
Execute your brewing process with confidence for years using our fermentation tanks! Made from 304 or 316L stainless steel coming with either dual or multi-zoned glycol jackets, our fermentation tanks are the ultimate choice in fermenting wort into beer.
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
