We manufacture and supply brewhouse sizes from 50L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.
| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Manhole: | |
| Quantity: | |
By learning each brewers individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.
A set of brewhouse system with plate heat exchanger
| Features of brewery equipment |
Brewhouses are comprised of several key pieces of brewing equipment. The mash tun, lauter tun, brew kettle, and whirlpool, in the skilled hand of the brew master, convert grain that has been milled through a specialty grain mill, into sweet liquid called “wort”. Wort is subsequently fermented and finished in specialized beer tanks called fermenters and brite tanks.

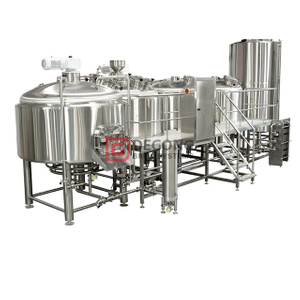

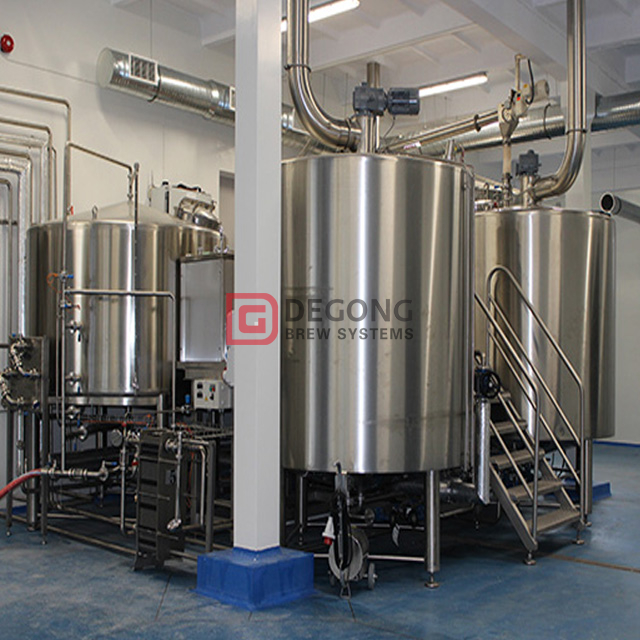

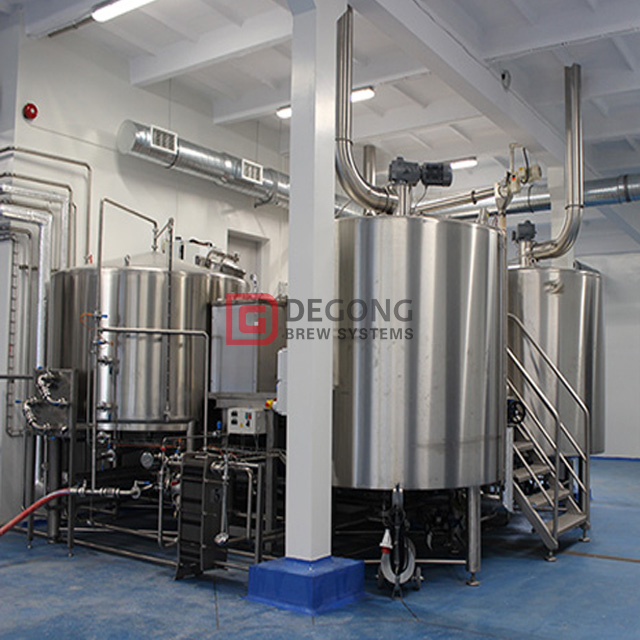

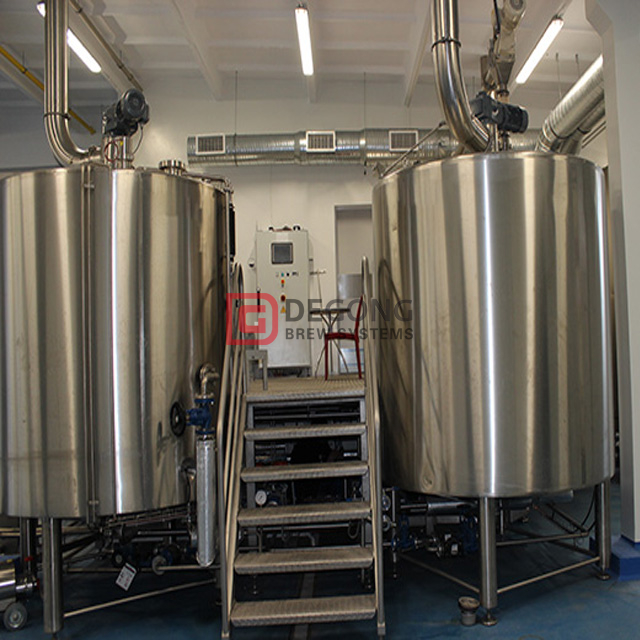

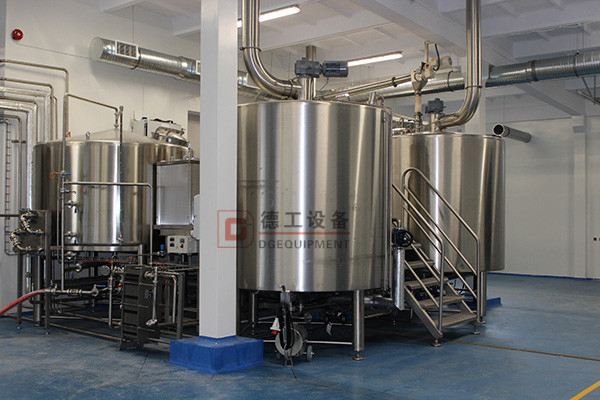

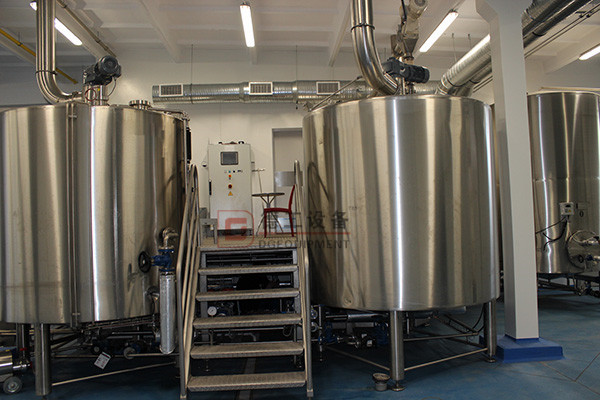

2000L stainless steel 2 vessel brewhouse system

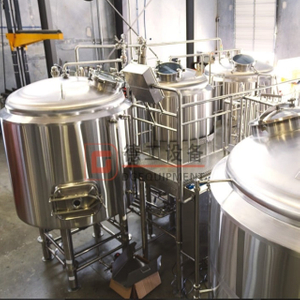

Mash system
| Mash/Kettle Tun | 2000L | Material:SUS316L/SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | |||
Dimple, coil jacketed for steam heating,electric | |||
ABB stirring motor | |||
100mm rock wool for insulation | |||
Round glass manhole, dish head,with temperature | |||
Lauter/Whirlpool Tun | 2000L | Material:SUS316L/ SUS304/copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
100m rock wool for insulation | |||
Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | |||
Lauter plate: milling | |||
Racking device,positive turn cultivating spent grain,reverse discharging spent grain | |||
Tangential whirlpool inlet | |||
With cleaning tube, with standard washing ball,cleaning pipeline ISO32 | |||
Hot liquid tank | 2000L | Material:SUS316L, SUS304,copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
100mm rock wool for insulation | |||
Top dish head, bottom conical head, round glass manhole | |||
Dimple, coil jacketed for steam heating,electric heating tube, combustion chamber | |||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | |||
Heat exchanger | SUS304,Two stage cooling | ||
Wort oxygenator | SUS304, venturi principle with sight glass | ||
Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held | |
Wort pump | China top brand, Sanitary SUS304 | ||
Hot liquid pump | China top brand, Sanitary SUS304 | ||
Pipe and fittings | As design | Completely SUS304,including platform and steps |
Filter plate
Exterior and interior of the control cabinet
Fermenter fatures:
The fermenter has a dimple jacket in both the cone and the barrel.
This ensures that efficiencies are maximized and time needed to control the temperature of your product is minimized. Available in several finishes, our tanks not only serve to raise the bar on production standards, they can also be customized to visually represent the quality and attention to detail put into the product our clients produce.
The outer and inner tank is constructed using high quality sus304 stainless steel and features a glycol cooling jacket which acts to boost glycol cooling performance, and to maintain lower lagering temperatures.
Fermentation tank with side hatch

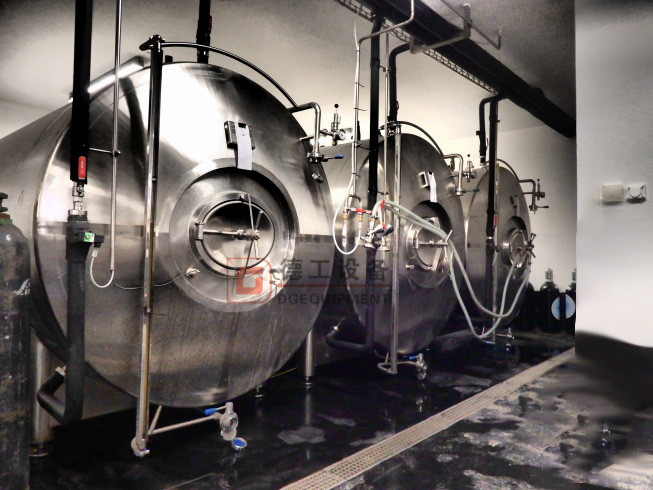

Horizontal lager tank for mature beer

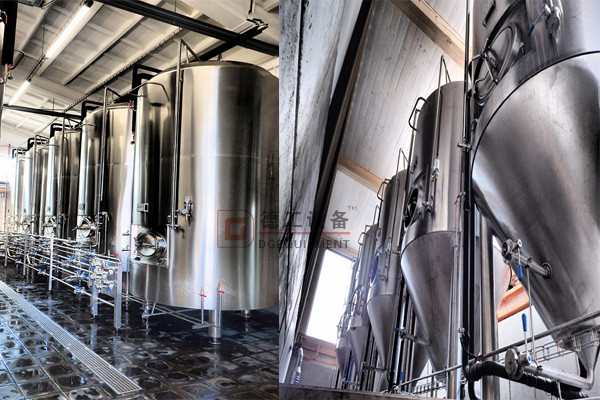

Brewery equipment in cellar
Fermenter equiped:
304 stainless steel, 2B finish
Conical bottom standard at 60 degree; other options are available
Fixed stainless steel legs and bases with adjustable legs
Large diameter legs;
Preformed dimple cooling jackets within cladding
Shadowless manway standard
Stainless steel pressure/vacuum relief valve
Sample valve
Shell and cone insulated and clad
Brewery fermenting vessel components
Execute your brewing process with confidence for years using our fermentation tanks! Made from 304 or 316L stainless steel coming with either dual or multi-zoned glycol jackets, our fermentation tanks are the ultimate choice in fermenting wort into beer.
