Thickness of material (mm): | |
---|---|
Insulation: | |
Material: | |
fermentation tank Manhole: | |
Availability: | |
Quantity: | |
DGET-10HL
DGET
8438400000
We outfit 2, 3, 4 vessel and combination “combi” systems. Tank design, platform design, automation features and process piping are a few of the multiple ways in which DGET designs for space,for budget and for expansion.

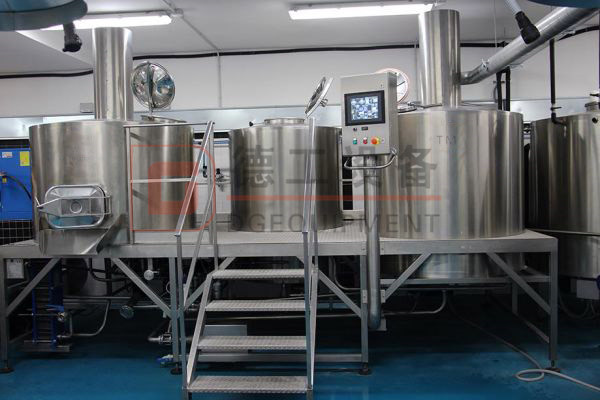

Work platform with staircase and guardrails. The central layout provides easy access to all workstations and connections, as well as great control and supervision over the entire work process. The anti-slip and washable surface provides a safe work environment and easy maintenance.
Material: Stainless steel 304
Brewhouse system 2 vessel : |
Mash system
| Mash/Kettle Tun | 1000L | Material:SUS316L/SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | |||
Dimple, jacketed for steam heating,electric | |||
ABB stirring motor | |||
100mm polyurethane for insulation | |||
Round glass manhole, dish head,with temperature | |||
Lauter/Whirlpool Tun | 1000L | Material:SUS316L/ SUS304/copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
100mm polyurethane for insulation | |||
Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | |||
Lauter plate | |||
Racking device,positive turn cultivating spent grain,reverse discharging spent grain | |||
Tangential whirlpool inlet | |||
With cleaning tube, with standard washing ball,cleaning pipeline | |||
Hot liquid tank | 1000L | Material:SUS316L, SUS304,copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
100mm polyurethane for insulation | |||
Top dish head, bottom conical head, round glass manhole | |||
Dimple jacketed for steam heating,electric heating tube, combustion chamber | |||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | |||
Heat exchanger | SUS304,Two stage cooling | ||
Wort oxygenator | SUS304, venturi principle with sight glass | ||
Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held | |
Wort pump | China top brand, Sanitary SUS304 | ||
Hot liquid pump | China top brand, Sanitary SUS304 | ||
Pipe and fittings | As design | Completely SUS304,including platform and steps |
Spent grains port
Pipeline and wort pump

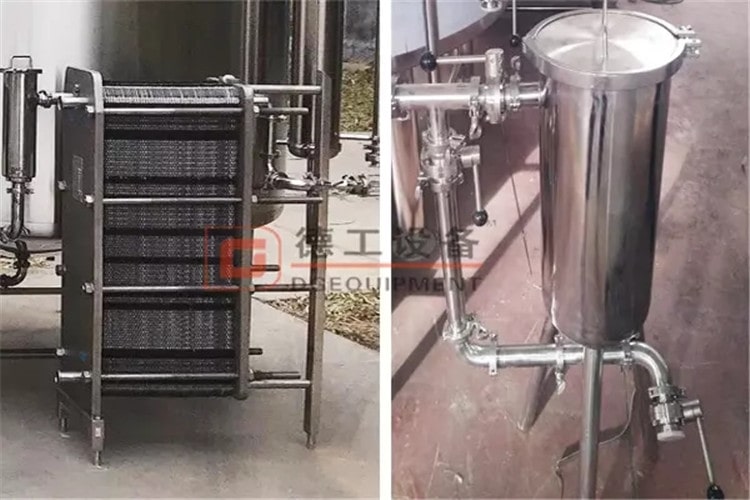

Two stage plate heat exchanger and yeast add tank
Control panel (mashing, fermenting, cooling)
Fermentation tank features: |
Cylindrical-cone fermentation tank
Main Features:
All material according to standard. Inner Shell: 3mm,304 Stainless Steel;Outer Shell: 2mm, 304 Stainless Steel
Inner cooling jacket design pressure 15psi
25% head space for fermenting process.
70/80/100mm Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B or #4 (brushed stainless) stainless steel plate
Shell and bottom cone cooling jacket for better temperature control.
Pillow Plate on shell body and cone;
Hook outside on the shell for ladders.
Other customization possibly available upon request.
Detailed of fermentation tank
Main Components:
Manhole on the top or front
Level Indicator (standard) for inner tank.
Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
Built in rotary spray ball within the inner tank for cleaning.
Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
Other customization possible upon request.

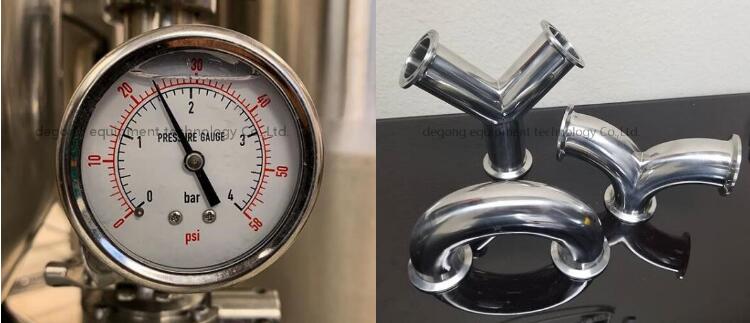

Pressure gauge and connector

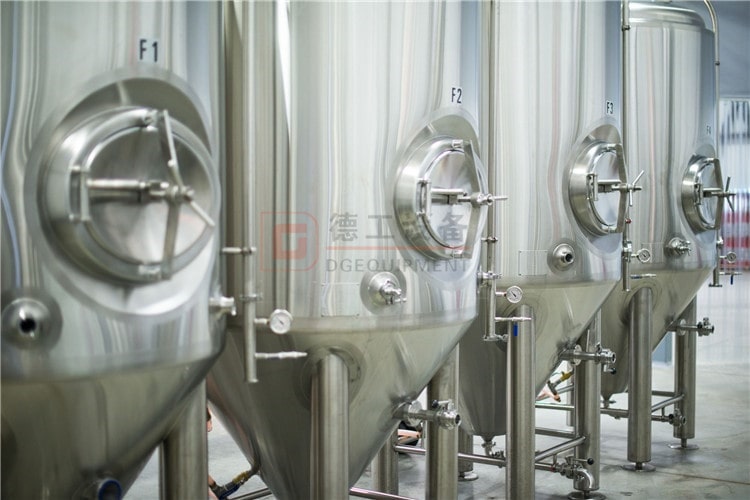

Double jacketed 60º cylindro-conical fermenters
These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.
Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Certification
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
The cargo ready to load
Contact information: |
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
