Product Detail

15BBL Available Turnkey Automated Beer Brewing System Commercial SUS 304 Brewing Equipment for Sale

Share to:

15BBL Available Turnkey Automated Beer Brewing System Commercial SUS 304 Brewing Equipment for Sale

Beer brewing is a technology that has been known for thousands of years. Related brewing knowledge can be found in many places, whether it is a book or on the Internet. These are some basic general processes. Each craft beer has its own unique brewing technology, but for most people, brewing knowledge is not the most difficult place, but the materials and props It takes a lot of effort to get it.

Thickness of material (mm):	Inner:3mm Outer:2mm Jacket:2mm
output:	15BBL/batch
Material:	Stainless steel Copper
Heating method:	Steam heating Electric heating Direct fire heating
Insulation:	Polyurathane:100mm
Availability:

Quantity:



Inquire Add to Basket

Model:
DGET-15BBL
Brand:
DEGONG
Code:
8438400000

Product Description

DEGONG Equipment Technology Co.,Ltd is a professional beer brewing equipment manufacturer.We offer wholeset brewing equipment with the productivity of 1000L (10 hl) to 5000L (50hl) per brew,as well as single tank,such as fermentation tank,mash tank,boiling tank.......Degong will provide full service,which includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more.

81b0645259c842b8b00c1aab7d21d207

Introduction of the brewing equipment component

1.Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash tun

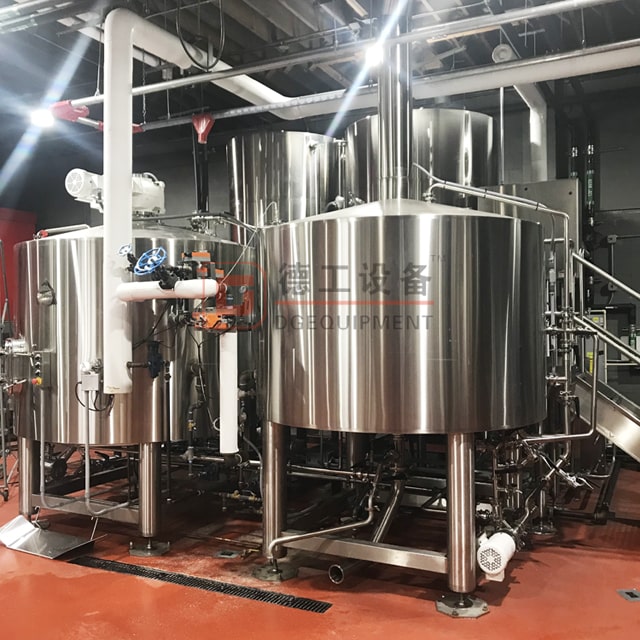

2.15BBL Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

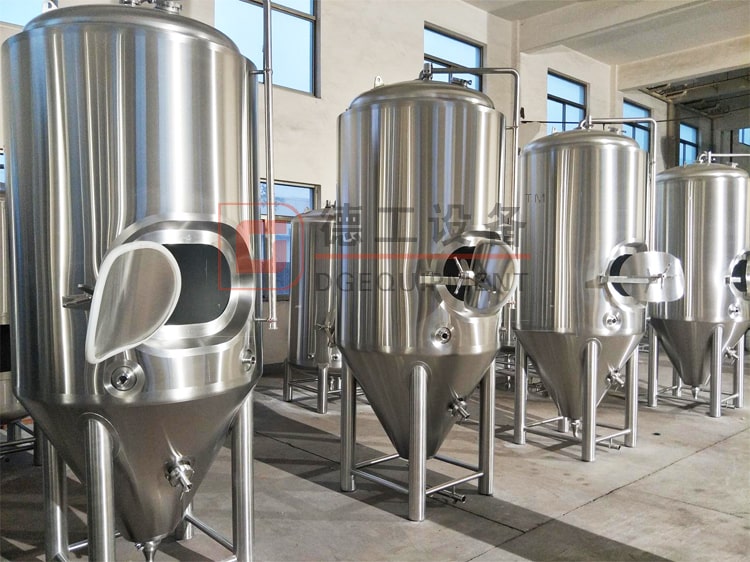

3.15BBL or 30BBL Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included

4.Beer Filter Unit
Craft beer is no need filtration which will keg filling for quickly consumption
Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer

5.Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

6.Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request

7.Beer Dispense
Keg filling and rinsing machine
Semiauto bottling machine with rinsing, filling, capping, labeling etc
Flash pasteurizer or tunnel pasteurizer is available

8.Other Facilities
Portable or fixed CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery lab instruments for beer quality test
