1500L Brewery Used Industrial Beer Brewing Equipment Making Machine in Chile
Home » Brewery Equipment » Beer brewery equipment » 1500L Brewery Used Industrial Beer Brewing Equipment Making Machine in Chile

Product Detail

Share to:

1500L Brewery Used Industrial Beer Brewing Equipment Making Machine in Chile

Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.

Quantity:
  • DGET-1500L
  • DGET
  • 8438400000


Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale breweries.These breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

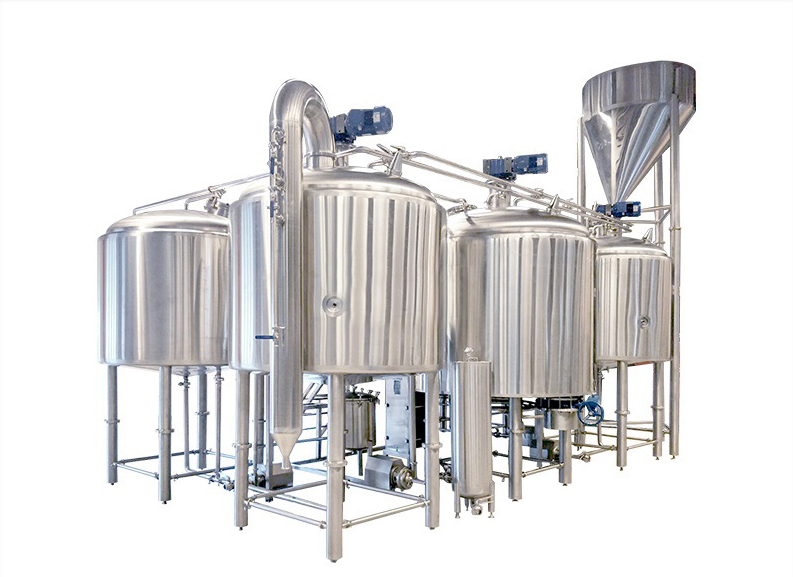

QQ截图20190612154246

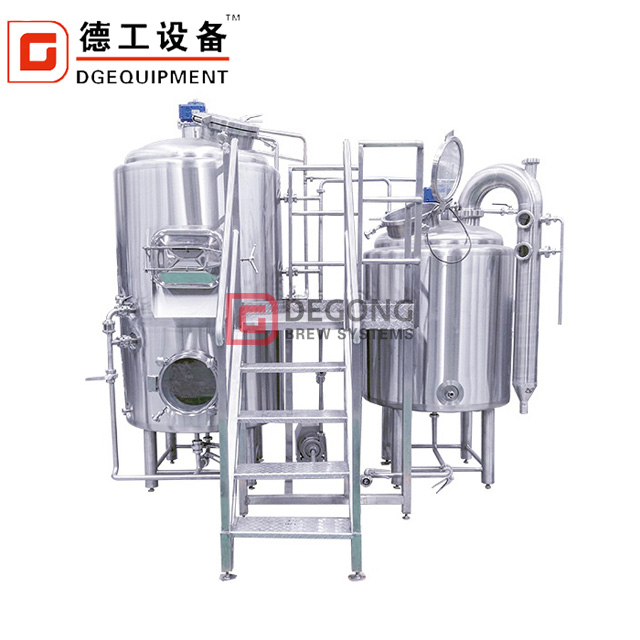

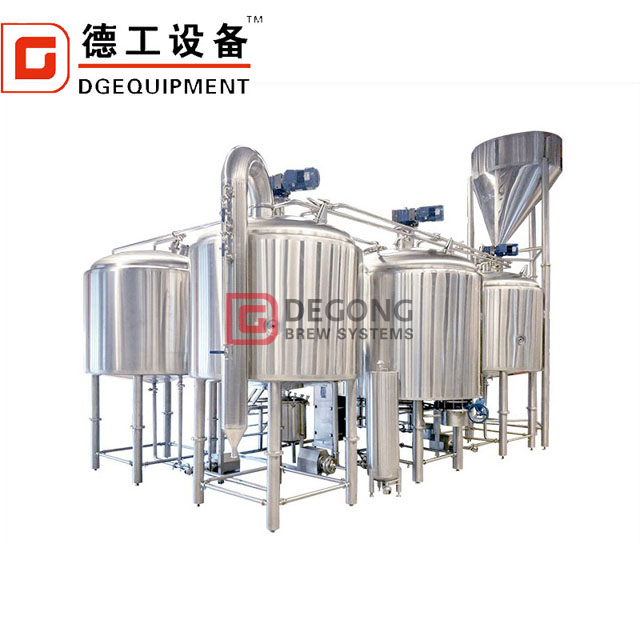

4 vessels 1500L craft stainless steel beer brewhouse brewing equipment



Introduction of 1500L beer mashing equipment


The beer mashing system usually consists of these parts:

1. The malt mash boiling tank – heated vessel for the mixing of the squeezed malt in water and boiling of malt mash

2. The wort boiling tank – the heated vessel for the boiling of wort with hops. This function may be integrated into the malt mash boiling tank

3. The filtering tank – the tank with special sieve for the filtration of malt mash (separation of liquid wort from solid parts of malt)

4. The whirlpool tank – tank equipped with a tangential inlet for centrifugal separation solid rests of hops from wort – this vessel may be situated also as an external device

5. Other tanks – Wort storage tank, Second malt mash boiling tank etc. – only special brewhouse models

You can combined these tanks according to your requirement,such as mash/lauter tank+boiling/whirlpool tank


QQ截图20191203140801


QQ截图20191203140742


Product 1500L Brewery used Industrial Beer Brewing Equipment Making Machine in Chile
Material All of the material of tanks,pipes and accessories are food grade stainless steel 304
Insulated Rock wool/Polyurathane,100mm
Control Automatic/Semi-automatic,PLC Control
Thickness Inner:3mm SUS304;  Jacket:2mm SUS304;  Outer:2mm SUS304 OR Copper
Electric Element Raker motor,Agitator motor,Pumps..All of them are Siemens or ABB Brand,VFD control
Heating method Steam heating,direct fire heating,electric heating
Steam boiler If choose steam heating,it will need a boiler,it can be diesel boiler,electric boiler and gas boiler





Component

Mash/lauter tank+lauter tank/whirlpool tank(You can combine these function freely)

Hot water tank

Plate heat exchanger.It can be single stage(City water) or double stage(Glycol and city water)

Wort aeration assembly

Hops filter

Wort grant

Pumps

Operation platform

Pipes




Features

Volume + ~30% headspace

Internal 2B finishing, welds polishing to 0.4um

Modular 4 parts screen sieve separating the wort bath from lautering area.

Sparge arm; False bottom with 0.7mm gap;

Wort sprinkling provided by sparging semicircle or spray balls.

Grist hydrator with strike water mixing station

Automatic spent grain removable system


Fermentation tank/ Beer fermenting system


Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.

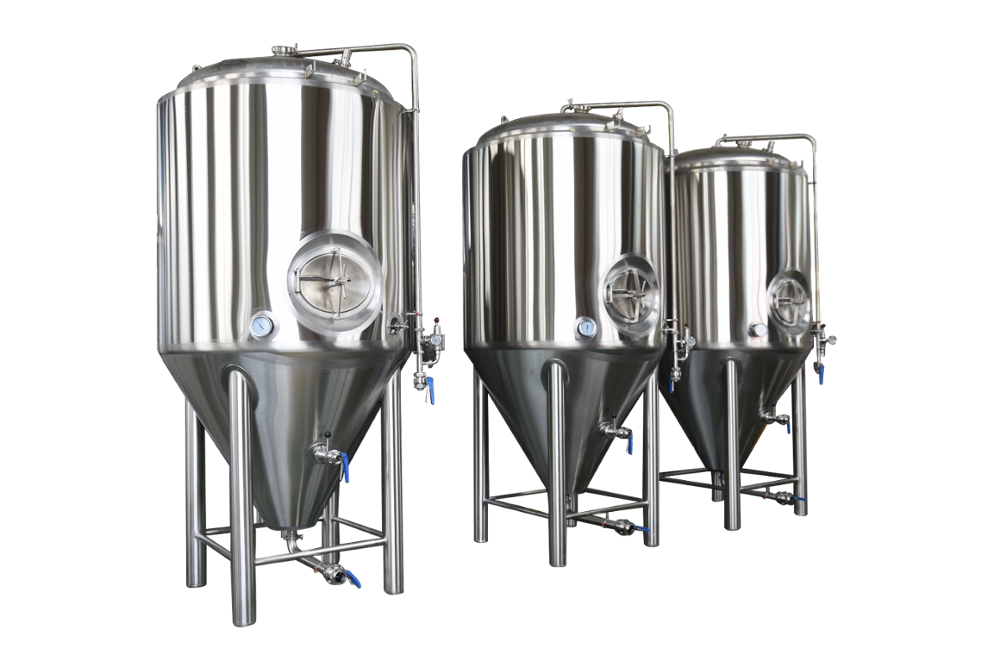

UTB8

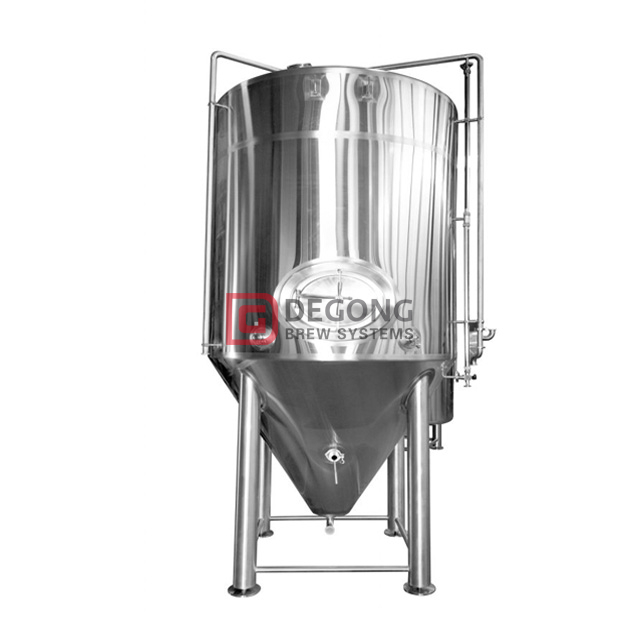

1500L stainless steel beer fermentation tank with cooling jacket


Other capacities available upon request

100% food-grade 304 and 316 stainless steel

All fermenters are rated to 14.7 PSI (1 bar) operating pressure

Two-zone glycol jacketing encompasses the 60-degree conical cone and sidewalls

Top-mount manway (optional side-mount configurations available)

Complete thermal insulation of side walls and cones

All insulation is fire retardant fiber cloth (not foam)

All welds are blended and finished to a sanitary food-grade finish

Every fermenter is equipped with:

racking arm

pressure relief valve

blow-off/ clean-in-place (CIP) tube

CIP spray ball

sample valve

Hops adding port

butterfly valves

TC clamps, gaskets and clamps

90-degree elbows

Carbonation stone

optional rupture disc assemblies available

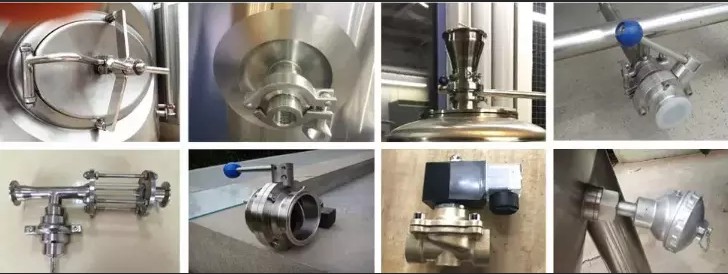

ddfdfd


发酵罐细节图



Brewing progress


the-brewing-process


Certifications

renzheng

CE&TUV&ISO



Equipment shows


图片1eee图片1
