1500L 2,3,4 Vessel Customizable Brewery Equipment Stainless Steel Brewing Machine for Craft Beer Hot Sale in Europe
Home » Brewery Equipment » Beer brewery equipment » 1500L 2,3,4 Vessel Customizable Brewery Equipment Stainless Steel Brewing Machine for Craft Beer Hot Sale in Europe

Product Detail

Share to:

1500L 2,3,4 Vessel Customizable Brewery Equipment Stainless Steel Brewing Machine for Craft Beer Hot Sale in Europe

We manufacture and supply brewhouses that vary in size from 50 to 5000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DGET brewery systems are turn-key and consist of malt mill, heating, controls,installation and training.

Our brewhouses enable you to produce outstanding and full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment. Furthermore DGET online assistance and expansion support for your growing business are included in our all-round service.

Thickness of material (mm):
Material:
Heating method:
Configuration:
Type of Control:
Quantity:
  • DGET-1500L
  • DGET
  • 8438400000

We manufacture and supply brewhouses that vary in size from 50 to 50000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DGET brewery systems are turn-key and consist of malt mill, heating, controls,installation and training.

糖化1_副本

3 vessel brewery equipment with hot liquor tank

Our brewhouses enable you to produce outstanding and full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment. Furthermore DGET online assistance and expansion support for your growing business are included in our all-round service.


Brewery capacities

Starter-brewery

BH 300 (3 HL)

BH 500 (5 HL)



Professional middle sized brewery

BH 1000 (10 HL)

BH 1500 (15 HL)



High capacity craft brewery

BH 2000 (20 HL)

BH 4000 (40 HL)


Brewhouse system configuration:

Brewhouses consist of three to four vessels

Unique appearance through exceptional presentation of the brewing technology within the equipment (piping, valves, motors, pumps)

We offer flexible arrangement of each component, tailored to your individual needs and demands.


Brewhouses consist of:

1 mash tun+1 lauter tun+1 boiling tank+1whirlpool tank

1 hot liquor tank

Wort cooler/plate heat exchanger (2-steps)

Cleaning: internal CIP

Piping

Control panel

Central control cabinet

wort pump and hot water pump

Malt mill


Structure:

1500L mash,lauter tun+1500L kettle tun+1500 whirlpool tun

+2000L hot liquor tank

Capacity:

1500L

Dimension:

Φ1600x2550mm

Material:

Stainless steel 304

Heating Way:

Steam heating/electric heating/direct fire heating

Electric Power:

3 Phase,380V,50 Hz


666

False bottom and raker


212_副本

Pipeline and drain outlet


控制柜_副本

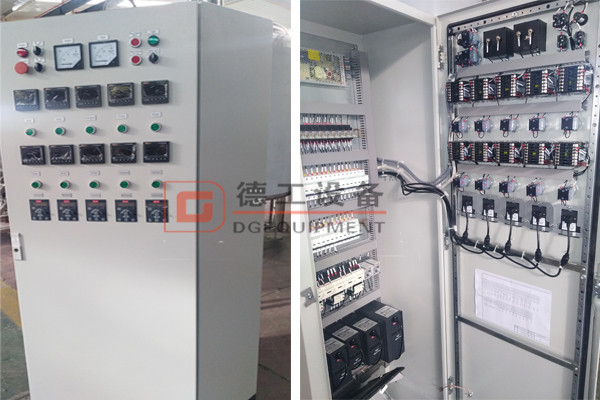

Semi-auto control panel ( Inside and outside)

We have two kinds of controls:

Semi-automated: temperature control for each tank according to fermenting recipe

Fully automated: temperature control and pressure control for each tank, programmed recipe


Fermenting systems

We offers two different fermenting systems:

One-tank system: CCT (cylindroconical tanks) with tank sizes from 10 HL to 200 HL

Each fermenting and storage tank is completely manufactured from stainless steel, operable up to 3 bar pressure and comes with CE certification, PU-insulation, cooling jackets, cleaning nozzles and a safety unit.

Traditional two-tank-combination: unpressurized primary fermenting tanks and horizontal secondary and storage tanks.

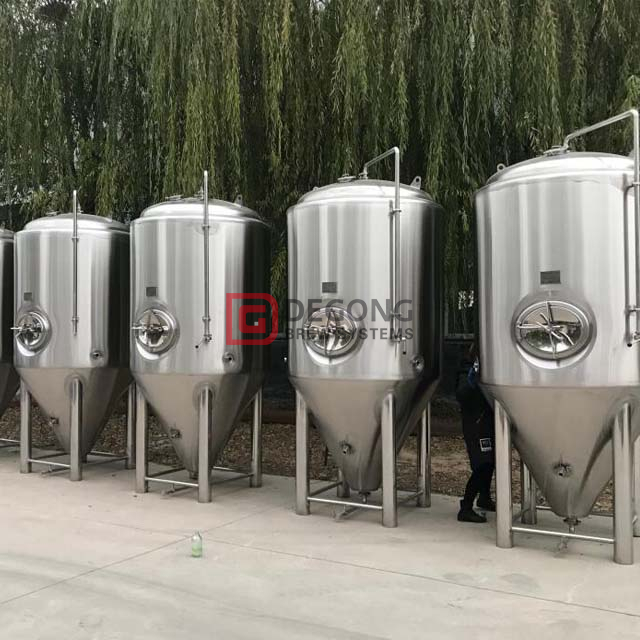

Fermenter-2

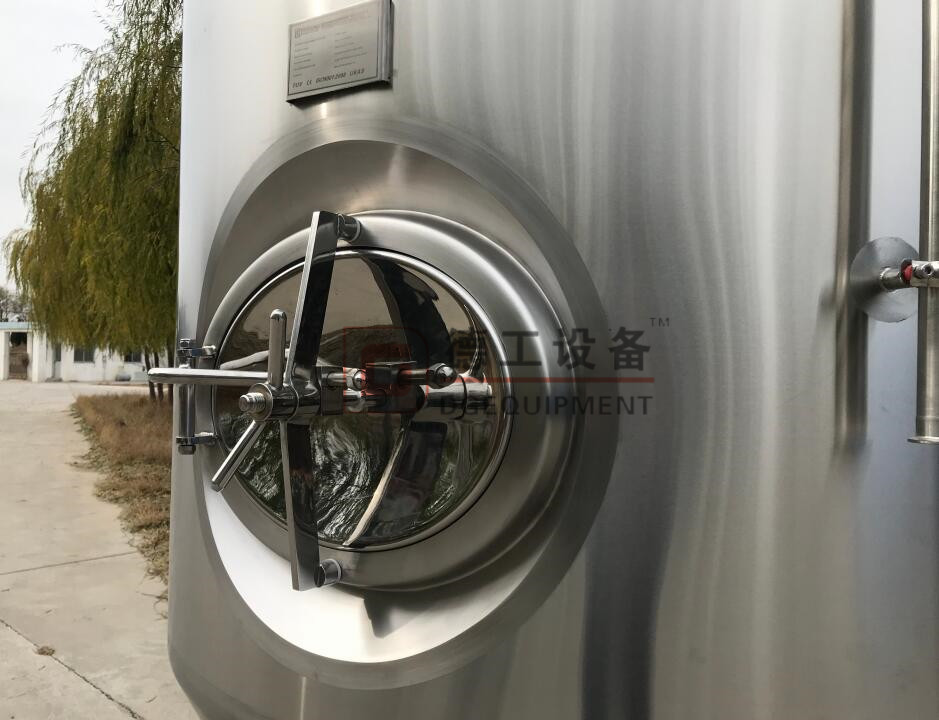

Bright fermentation tank with pressure gauge ,cleaning spray ball and side manhole etc.


Main Features:

Inner Shell: 3mm,  304 Stainless Steel

Outer Shell: 2mm,  304 Stainless Steel

Jacket thickness:1.5mm

Inner cooling jacket design pressure 15psi

25% head space for fermenting process.

Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.

Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.

Tank inner side is polished within 0.6µm sanitary finish.

Tank outside is 2B or #4 (brushed stainless) stainless steel plate

Shell and bottom cone cooling jacket for better temperature control.

Pillow Plate on shell body and cone;

Hook outside on the shell for ladders.

Other customization possibly available upon request.


DGET brief introduction


公司简介


工作间_副本


Cooperator


客户_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment


Contact information:

If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
