Beer fermentation tank is also called CCT, fermenters are made of SUS 304, for fermentation and maturation of beer. We design, manufacture all variety fermenters from 500L to 30000L . With all the necessary valves, connections, microbrewery fermenters are the CE certification.
Fermentation is a process that converts the sugar (long-chain and short-chain molecules) obtained from starch during brewing to alcohol and CO2. The process of fermentation ends when all fermentable sugar has been converted to alcohol. A certain amount of residual sugar is needed to carbonise the beer during maturation (second fermentation). Carbon dioxide is produced during the fermentation of the sugar.
Increasing your fermentation capacity can can be the most efficient and cost effective means of increasing your brewing capacity! We have tanks ranging in sizes from 10HL – 30000HL to suit all processing requirements. Our tanks are fully compliant with all EURO standard including CE and PED certifications.

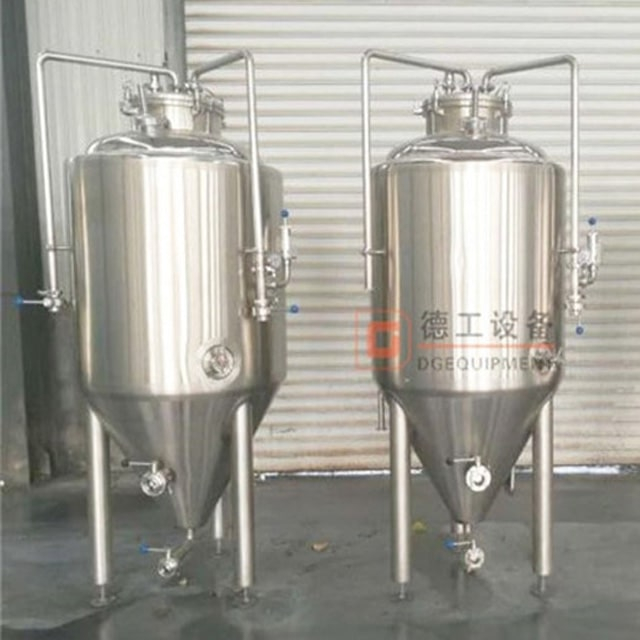

A row of fermentation tank
|Fermentation tank details|

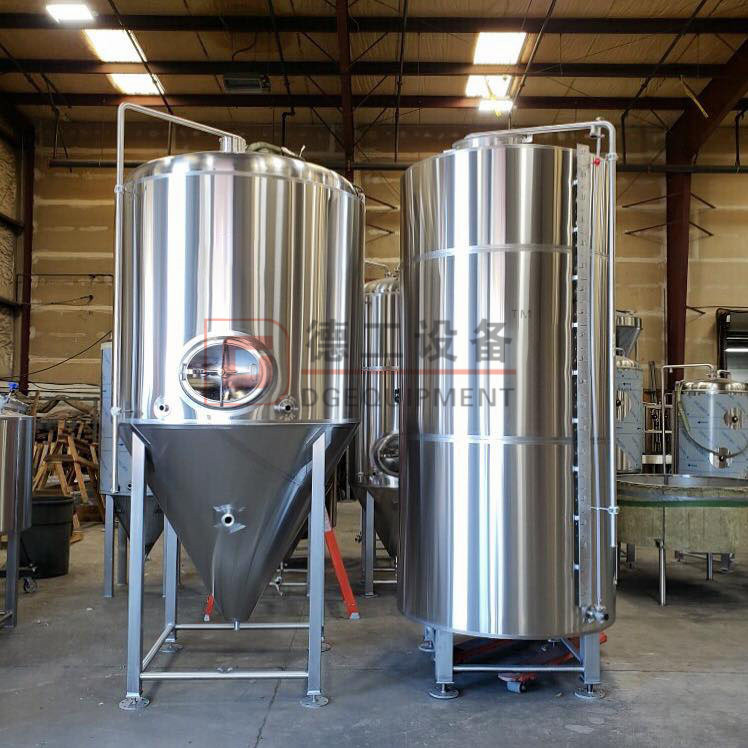

Fermentation tank and Brite beer tank in factory
Safety valve,rotate racking arm,pressure gauge
carbonation stone and raking arm
More Sanitary, never got contaminated.
Rotating racking arm
After accepting many Customer's advice, we improve to the following kind of Rotating Racking Arm.
It can rotate to drain out the beer and reduce the yeast stuck.
Option of top or side manway c/w hand-turn knobs provides fast and easy access to vessel
Rotating cleaning nozzles provides reliable cleaning performance and optimised flow pattern to minimise cleaning time and water usage. Optional Static cleaning ball are also available. External clamped connection permits easy maintenance and replacement of the cleaning nozzle without entering the vessel.
Pour-in polyurethane foam insulation has a high insulation value and expands to fill every corner of the insulation space, achieving a superior performance compared to fiber batts. Insulation foam is specially formulated for use with stainless vessels.
Sanitary sample valve provides convenient location to draw-off wort sample.
Adjustable racking arm allows adjustment of racking level for maximum beer recovery.
Sanitary drain valve is kept close to the bottom of the fermenter to prevent yeast and wort being held in piping at room temperature, resulting in spoilage and off-flavours. Drain sized for low turbulence product transfers without cavitation.
3d model of fermentation tank
Feature Description(horizontal storage tank):
The horizontal tanks mainly for beer storage, which can be stacked with 2-3 tanks, to make full use of the height. Fermentation finished in short time, then we use horizontal tank for storage for longer time.
2-3 tanks stacked with frame. With right beer outlet, carbonation unit etc. All glycol cooling line preassembled. Inside surface to be passivated. All fittings installed with tanks using top brand in China or famous brand from other countries. The tank working pressure up to 3bar to fit the requirement of carbonation when necessary.
Capacity range: 5HL-50HL or 5BBL-50BBL, or customized
Horizontal storage tank
● Horizontal type
● With frame for supporting tanks
● Double heads with domed seal
● Pressure: 2-3 bar / 15-30PSI
● Dimple plate cooling jacket, cylinder, Polyurethane insulation, Thickness: 80-100mm
● All glycol line pre assembled
● CIP arm with pressure gauge, rotating spray ball
● Side manway, sample valve
|DGET brief introduction|
1. How long is your delivery lead time?
A: After 30-45 working days when we receiving your payment.
2. Could you calculate the shipping for me?
A: Yes, please kindly let us know which port is nearest your place.
3. What is your term of payment?
A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.
4. This is the first time I use this kind of machine, is it easy to operate?
A: There are English manual or guide video for showing how to use the machine;
If you still have any questions, we can contact by phone or email, etc;
|Packaging & Delivery|
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
