Beer fermentation tank is also called CCT, fermenters are made of SUS 304, for fermentation and maturation of beer. We design, manufacture all variety fermenters from 500L to 30000L . With all the necessary valves, connections, microbrewery fermenters are the CE certification.
Fermentation is a process that converts the sugar (long-chain and short-chain molecules) obtained from starch during brewing to alcohol and CO2. The process of fermentation ends when all fermentable sugar has been converted to alcohol. A certain amount of residual sugar is needed to carbonise the beer during maturation (second fermentation). Carbon dioxide is produced during the fermentation of the sugar.
10HL stainless steel fermentation tank
|Fermentation tank details|
The conical fermenter is the most common type of beer fermentation equipment, because of the conical design of their bottom can quickly make yeast precipitation. The angle of the fermenter is 60 degrees, you can look at the picture of the below and it was processed fermenter by our company.
Dimple jacket,pressure gauge and mechanical control valve

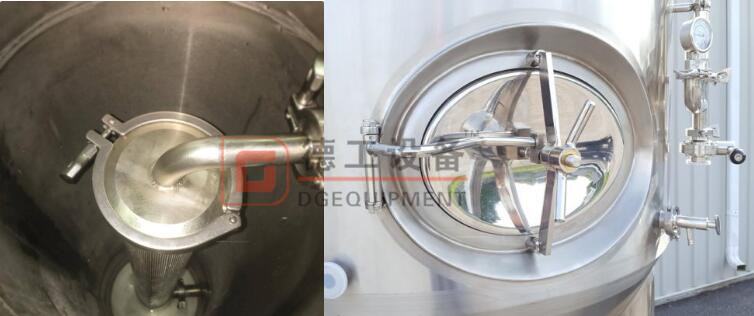

Yeast adding tank and bright stainless steel side manway
From the top to the bottom, L shaped CIP drive pipe, the cleaning process starts from this pipe, spray ball in the washing pipe connection can take it out. Two valves were equipped on the fermenters, one called a vacuum pressure relief valve, and another is the mechanical pressure relief valve. Their functions are balanced the internal and external air pressure, prevent internal pressure too higher, make negative.
Pressure manhole/compression pressure/Elliptical manhole/Side manhole/Top manhole
Sampling valve and temperature sensor are in a same horizontal plane.
Drain tube/Pressure gauge/beer belt/Spray ball/Two-way pressure regulating valve/Temperature control solenoid valve
The tank consists of the following four layers, insulation, inner thickness 3mm, outer thickness 2mm and jacket 1.5mm.
Fermentation vessels side view
Function: Used for keep wort fermentation or maturation.
Standard stainless steel conical cylindrical fermentation tanks
Single, double, triple or more size as brewhouse is common used in commercial breweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Roof walkway is for special request
Cooling method: dimple plate or glycol cooling jacket both bottom and top.
All manhole, valves, pressure gauges, fittings etc are included
Design pressure is 0.3MPa; Working pressure is 0.15MPa. (MPa can be customized).
|Brite beer tank|
The bright beer tank is a tank of store beer, so people also called it a storage tank. They most of apply in the beer industry, Why they call it “bright beer tank”？In fact, after beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine, at last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.
1. Drain port (no port of out of beer )
2. Ice water inlet and outlet
3. The carbon inlet
4. Pressure manhole
5. Breath valve
6. Pressure gauge
7. CIP inlet
8. Sampling valve
9. Temperature sensor: PT100
10. Level gauge, was made of Pu and Plexiglass
3D model brite beer tank
|DGET brief introduction|
1. How long is your delivery lead time?
A: After 30-45 working days when we receiving your payment.
2. Could you calculate the shipping for me?
A: Yes, please kindly let us know which port is nearest your place.
3. What is your term of payment?
A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.
4. This is the first time I use this kind of machine, is it easy to operate?
A: There are English manual or guide video for showing how to use the machine;
If you still have any questions, we can contact by phone or email, etc;
|Packaging & Delivery|
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
