10HL Stainless Steel Microbrewery Fermentation Unitank CCT complete beer brewing system

Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.

BREWHOUSE

Heating options of mash tun( brew kettle )and boiler:

1. (standard option) – steam heating

2. natural gas heating

3. electric heating (electric heater is placed in stainless steel cylinder)

Grinder for grinding malt. Capacity 300 kg per hour

10HL brewery equipment for brewing craft beer

Mash/Lauter tank

Double wall stainless steel  tank with thermal insulation;

Gross capacity: 1400 l;

Outer 1400 mm;

Total height: 2500 mm;

Mechanical Agitator with two blades connected to the bottom

Internal cleaning spray-ball

External glass graduated level

Tangential inlet for Whirlpool

1.Material:Inner(SUS304),thickness:3.0mm; Out(SUS304),thinckness:2.0mm;

2. External-Jacket(SUS 304 thickness: 3.0mm;

3. Cylinder (sharp type, SUS304), thickness: 3.0mm.

4. Inner surface treatment: welds grinded to Ra 0.4µm without dead corner.

5. 100% TIG welding with pure argon gas shield

6.  Insulation: Polyurethane-thickness 100 mm.

7. Dished top and conical bottom

8. Glass top manhole

9. Temperature way：Double metal thermometer

10. Outsourcing surface: Weld polishing processing

11. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

12. Top mounted 360° coverage CIP spraying ball and port

13. Stainless steel laser cutting False Bottom/Filter

14. Thermo well for high accuracy temperature sensor

Glass manhole，raker,side manhole

Boiling /Whirlpool tank

Double wall stainless steel  tank with thermal insulation;

Gross capacity: 1400 l;

Outer:1400 mm;

Total height: 2500 mm;

1.Material: Inner(SUS304),thickness: 3.0mm; Out(SUS304),thinckness:2.0mm;

2. External-Jacket(SUS 304 thickness: 3.0mm;

3. Cylinder (sharp type, SUS304), thickness: 3.0mm.

4.Inner surface treatment: welds grinded to Ra0.4 µm without dead corner.

5. 100% TIG welding with pure argon gas shield

6. Insulation: Polyurethane-thickness 100 mm.

7.Glass top manhole

8. Temperature way：Double metal thermometer

9. Outsourcing surface: Weld polishing processing

10.Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

11.Agitator with VFD controled motor and gear reducer on top.

One set of 10HL fermentation with manhole of on the top

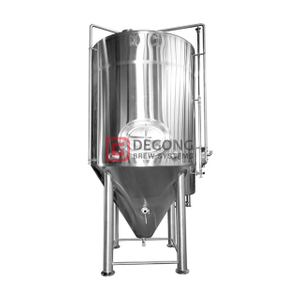

Fermentation&Conditioning Unitank CCT (Fermentation Unit)

Double wall stainless steel tank with thermal insulation;

Gross capacity: 1300 l;

Outer:1300 mm;

Total height: 2550 mm;

- separate temperature control cooling of the cylindrical part of the unitank;

- separate temperature control cooling of the conical part of the unitank;

- separate regulation of cooling with control panels

- cone angle: 60°

Two options (top manhole, side manhole)

Temperature control of unitanks and service tanks is realizing by individual control panels  installed on every tank. Control panel is simple and easy to operate and servicing. Cable is hidden inside the special covers, which are included in the standard set of the brewery

Mobile station for cleaning and disinfection (CIP)  Includes:

– pump

– capacity of the vessel liters for a washing tank is 100 l

– capacity for disinfectant of the vessel is 100 l

– control panel

FILLING UNIT (into keg-barrels)

device for rinsing, washing, disinfection of keg-barrels and filling beer into keg-barrels:

Includes:

rinsing device;

washing device;

filling head;

Key for keg-barrels opening;

COOLING SYSTEM

cooling unit ;

vertical vessel of capacity 2000 l for cooling liquid made of sheet stainless steel

pump for circulation of ice water in the cooling liquid vessel .

Heat exchanger and into fermentation, conditioning and service tanks

cooling pipeline system of the fermentation, conditioning and service tanks

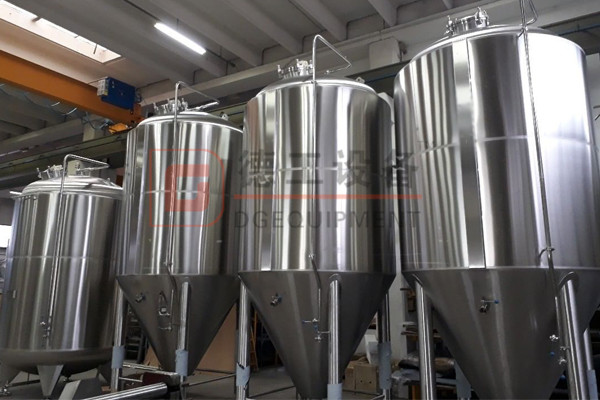

Brewery tanks at the bar

DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

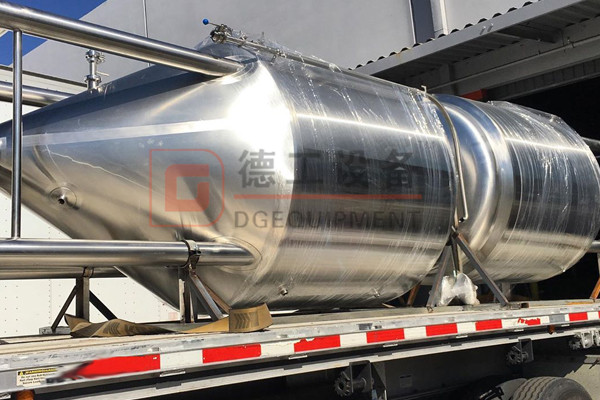

Packaging Details: standard wooden package
