10HL Fermentation Tank Industrial Stainless Steel Beer Craft Beer Brewing Equipment in Scotland for Sale

Beer fermentation tank is also called CCT, fermenters are made of SUS 304, for fermentation and maturation of beer. We design, manufacture all variety fermenters from 500L to 30000L . With all the necessary valves, connections, microbrewery fermenters are the CE certification.

Type:
Material:
Insulation:
Manhole:
Quantity:
  • DGET-10HL
  • DGET
  • 8438400000

Fermentation is a process that converts the sugar (long-chain and short-chain molecules) obtained from starch during brewing to alcohol and CO2. The process of fermentation ends when all fermentable sugar has been converted to alcohol. A certain amount of residual sugar is needed to carbonise the beer during maturation (second fermentation). Carbon dioxide is produced during the fermentation of the sugar.


timg (2)

Fermentation tank for sale


Fermentation tank details:
Sample of 10HL Fermentation tank

Material:

SUS 304

Insulation:

Polyurethane 100 mm.

Net Volume:

1000 L

Total Volume:

1300 L

Dimensions:

Ø 1300 x 2550 mm

Top Bottom Angle of the Tapered Part:

60°

Max. Working Pressure in the Vessel:

2.5 bar

Max. Working Pressure in miller jacket:

1,5 bar

Dish Head:

Domed

Lower Bottom:

Conical

Legs:

Adjustable, 4 pieces

Cooling  jackets:

Independent, in the cylindrical and conical part;

Cooling area

2.8 m

 CIP Arm:

DN 32/40 valve, 1 pc

Drain Outlet:

DN 32/40 valve, 1 pc

Beer Inlet and Outlet:

DN 32/40 valve, 1 pc

Spray Ball:

Screw connected, 1 pc

Man way door:

400/500

Vacuum  Overpressure Safety Valve:

DN 50 at the upper bottom
3 bar 1 pc

Sample Cock:

DN 25

Electronic Temperature Sensor:

PT 100, 1 pcs
Adopted with 1 additional sensor slot in the middle of cylinder part DN25

Bimetal Temperature gauge

DN 25 1 pc

Quick installed level gauge

DN25 1 pc

Bund device with Manometer:

DN 32


bright fermentation tank_副本

 Side view fermentation tank


未标题-1


Carbonation stone

More Sanitary, never got contaminated.

Rotating racking arm

After accepting many Customer's advice, we improve to the following kind of Rotating Racking Arm.

It can rotate to drain out the beer and reduce the yeast stuck.

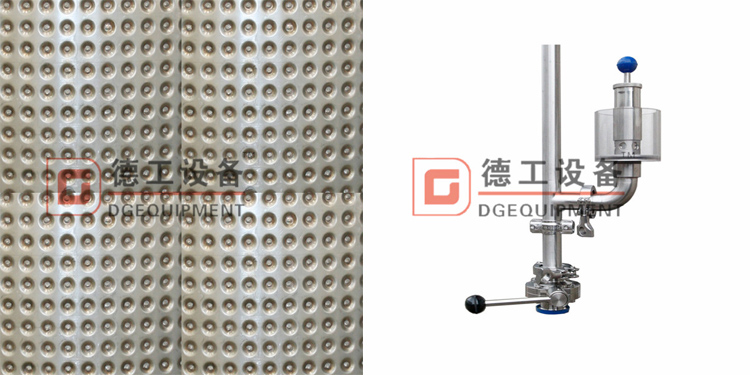

未标题-20


Cooling jacket

Same with steam jacket, use dimple jacket, it will expand cooling ares and makes better cooling effect.

Mechanical control valve

This tank fitting can be used to prevent excessive pressure in the tank. Generally, the valve opening pressure is greater than the operating pressure. When the operating pressure increases to the valve opening pressure, the valve member opens after overcoming the force of the spring.

Due to the increase in pressure and the opening characteristics, the volume of the working fluid flowing after the valve member is opened is related to the maximum allowable operating pressure (see Figure 5).

In order to facilitate the observation and control of the valve member, the glass ring sleeve (7) is filled with liquid (ethanol). Excessive pressure in the tank can be directly observed when discharged from the opening "5".





发酵罐3D_副本

3d model of fermentation tank


DGET brief introduction


公司简介


工作间_副本


FAQ

1. How long is your delivery lead time?

A: After 30-45 working days when we receiving your payment.

2. Could you calculate the shipping for me?

A: Yes, please kindly let us know which port is nearest your place.

3. What is your term of payment?

A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.

4. This is the first time I use this kind of machine, is it easy to operate?

A: There are English manual or guide video for showing how to use the machine;

If you still have any questions, we can contact by phone or email, etc;


Cooperator


客户_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment
