Thickness of material (mm): | |
---|---|
Insulation: | |
Matrial: | |
Heating method: | |
Control panel: | |
Availability: | |
Quantity: | |
DGET-10HL
DGET
8438400000
DEGONG can design and manufacture beer brewing equipment used for any type beer,such as ale,lager,IPA....All of the equipment is customized according to your requirement.If you don't know more about beer brewery machine,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....

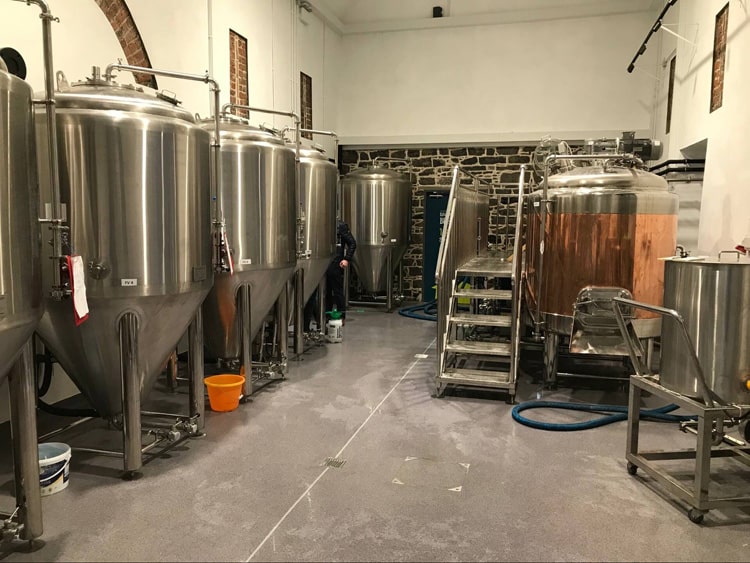

Our beer brewing equipment is customer's brewing bar(Ireland)
Introduction of beer brewing equipment |
The turnkey brewing system includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.For example, the mashing system can be two vessels or three vessels or four vessels, heating method can be electricity, steam and direct fire.The fermenting tank’s quantity is base on customer’s brewing plan,and the fermenting tank parameters can be customized according to your needs, etc..
10HL Complete Copper Beer Brewing equipment Brewing System for Brewpub Restaurant
The brewhouse is 3 vessels beer mashing system,which include mash/boiling tank+lauter tank+whirlpool tank and an additional hot water tank.You can combine the tanks freely according to your requirement.The whole mashing system also includes pumps, heat exchangers, hops filters, platforms, , oxygenation equipment, etc.
Raker,false bottom,VFD wort pump,operation platform,sight glass
Sparging
Sight glass manhole for looking inside of tank, automatic spent grain removable system
Plate heat exchanger,it can be single stage(cold water) or double stages(glycol water and city water)
10HL Stainless steel conical beer fermentation tank/fermenter/Unitank
Fermentation Tanks are equipped with separate cooling zones which can be individually controlled and entirely insulated. CIP tube and a cleaning head included. The materials used and the surface finishing depend on the intended application and the customers’ specifications.
Normally,there are hops hole and vacuum valve on the top,pressure guage and apunding valve on the CIP arm.One-Touch Racking Arm on cone,CIP Spray Ball,temperature sensor and carbonation stone on the tank.
Sample valve
Carbonation stone system
Side manhole,temperature meter,pressure guage
Standard features include |
304 SS or 316LSS or Copper material.
30% head space at least for each tank
Motorized mash mixers, lauter rakes and spent-grain plow
ABB Siemens motors/pumps on the whole system
Stainless steel process piping, work cabinet and control cabinet
Siemens/Schneider/Omron electric element
Oversized heat exchangers,cooling system,heating element(element,steam generator)
Tempered all-glass manways
Grirst hydrator bowl with hot/cold liquor blending
8- to 10-in. steam condensation pipe with cool water jets and drain
Sight level indicators on fermenting system.
Insulated with a minimum of 80mm Chloride-Free PU Insulation.
#4 overall finish; exterior and interior.
Interior Finish: Overall polishing to 0.4 μm without dead corner
The interior of the shell is Professionally Passivated.
Adjustable Levelers provide a level tank regardless of floor slope; (4) total legs with (4) forklift accessible crossbars.
Equipment shows in customer's brewery/brewpub |
1000L stainless steel beer brewing system in Ireland
1000L copper beer brewing system in Sweden
500L copper 2 vessels brewing mashing system in Ireland
Application industrial |
The 10HL brewery system is one of the most popular models among all our equipments. It is mainly used in catering industry, such as bar, hotel, restaurant or a budding industrial brewery.
Engineer install equipment and teach how to brew |
