DGET-10BBL
DEGONGET
8438400000
Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.
Lautertun assembled with rakers and false bottom for grains separation.
Whirpooltun is multi functioned for wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.
| Technical parameters |
Mash Brew Kettle of steam heating brewhouse
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.
– Quick installed Spray CIP balls.
Lauter tun of steam heating brewhouse
Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.
Modular 4 parts screen sieve separating the wort bath from lautering area.
Sieve flutes width- 1 mm.
Sieve loading – 120-160 kg/ m2
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.

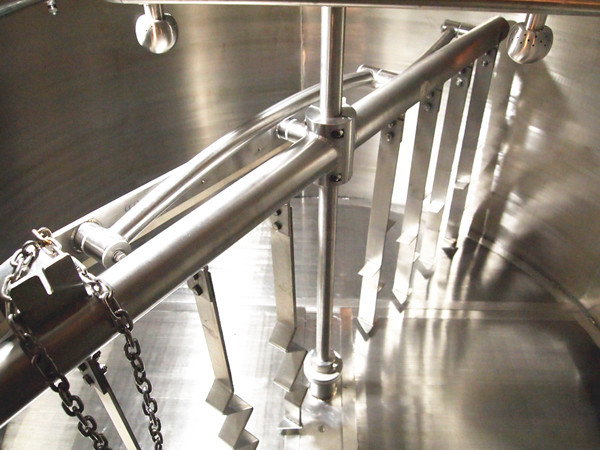

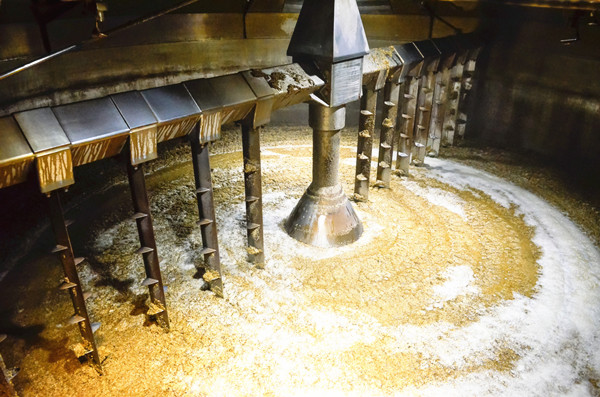

- Auto spent grain out by reversing rakes
- Sparge arm; False bottom with 0.7mm gap;
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Spent grain manway;
- Wort sprinkling provided by sparging semicircle or spray balls.
- Bottom wort outlet.
- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.
- Top dome wort /water inlet.
Whirpool HLT Combi vessel of steam heating brewhouse
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
– PT100 temperautre sensor probe
– Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
– Bottom mash inlet /outlet.
– Middle side wort/water inlet/outlet.
– Top dome wort /water inlet.
– Middle cone wort outlet.

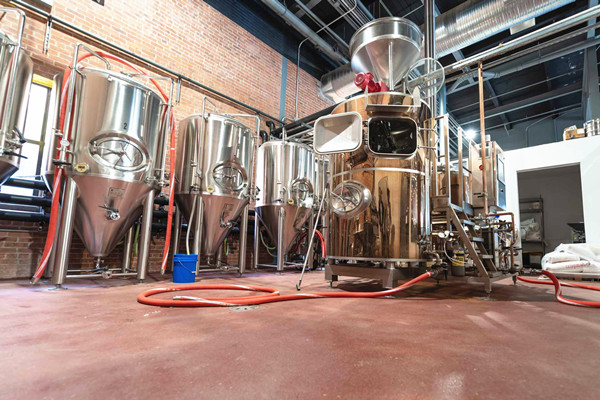

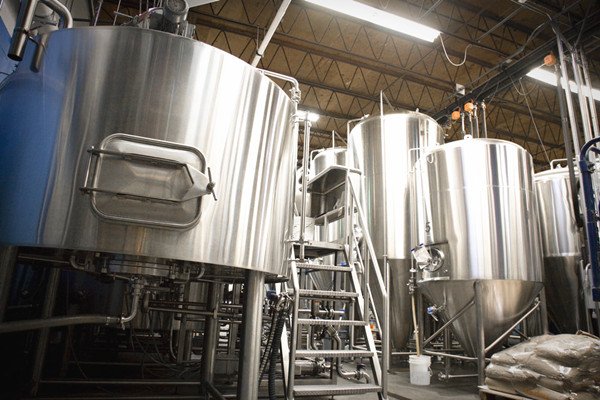

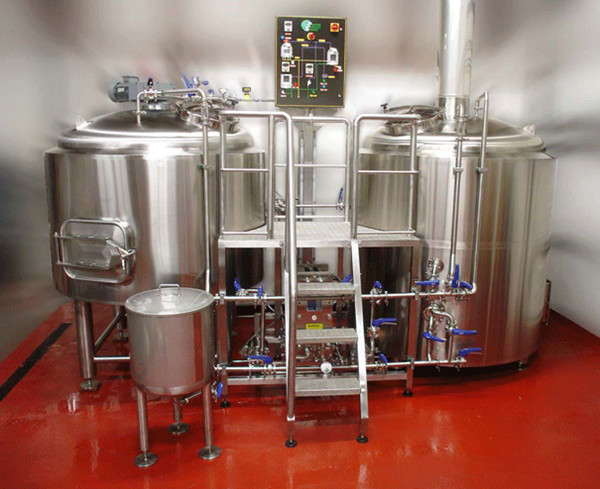

| Customer show |
Guarantees:
All the materials touching with beer directly are all top quality food grade stainless steel
We use the first class valves and manhole for our equipments
All the materials I use is nonmagnetic.
The thickness of the material exact fit in with what shown in our quotation sheet
Most importantly,Our staff is always available for your needs and questions.
After-sale services:
Within the warranty period, any malfunctions caused by the quality issues or material issue, Degong will be responsible to it.
After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.
For the malfunctions beyond the warranty period, Degong will also be responsible to it, but the seller should take in charge of the expenses.
Degong can dispatch technicians to install the equipments for you, but the seller should take charge of the expenses
