10BBL brewery equipment/machinery with full stainless steel in US

We manufacture and supply brewhouse sizes from 1BBL to 150BBL based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.
Thickness of material (mm):
Material:
Configuration:
Heating method:
Quantity:
  • DGET-10BBL
  • DGET
  • 8438400000

We manufacture and supply brewhouse sizes from 1BBL to 150BBL based on customer's demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.


Brewhouse system features

100% 304 stainless steel construction, including all non-product contact and structural steel

2B product contact material finish, with buffed internal welds

Designed with adequate free board above the maximum working volume for safe ingredient additions

Sized for 30 minute knock out

Glass cover manway

Tangential inlet designed to achieve tight trub piles

Insulation polyurethane 100mm

Fully welded 304 stainless steel outer sheathing

Rotary sprayballs to clean vessel

Trub removal system for easy disposal and efficient water usage


详情1-min

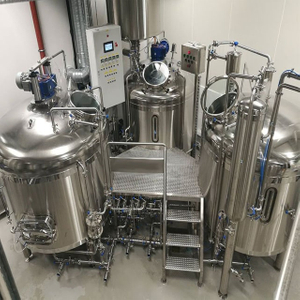

2 Vessel brewhouse system


糖化细节_副本

Brewhouse system details (pipeline,stairs etc.)


Fermentation tank features:

Fermentation is the process by which yeast converts the glucose in the wort to ethyl alcohol and carbon dioxide gas -- giving the beer both its alcohol content and its carbonation. To begin the fermentation process, the cooled wort is transferred into a conical beer fermenter to which the yeast has already been added. Since fermentation produces a substantial amount of heat, the tanks must be cooled constantly to maintain the proper temperature.

brewing beer-min

Standard Features:

60° Cone bottom with an average of 25% head space

Dual zone dimple cooling jackets (3 or more on larger tanks)

Cooling Jacket: 304 stainless steel, thickness 1.5mm

Interior shell: 304 stainless steel, thickness 3mm

Interior shell to finish pickled and passivated/mirror polish

Exterior shell: 304 stainless steel, thickness 2mm

Exterior surface to burshed, #4 finish or satin polish

100mm Polyurethane insulation

Top or Side shadowless manway

Dry hop inlet at top

Carbonation stone(optional)

Adjustable pressure valve

Pressure gauge


brite tank2

Brite beer tanks/Serving tanks/Maturation tanks


When it's time to carbonate your beer, you can rely on DEGONG's beer bright tanks for the job. Made of shiny and super-clean 304 Stainless Steel, you will get the results you want without the worry of external influences. Available in sizes from 1-150 BBLs and in a variety of finishes, these tanks are ready to serve.


FAQ

1. How long is your delivery lead time?

A: After 30-45 working days when we receiving your payment.


2. What is your term of payment?

A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.


3 This is the first time I use this kind of machine, is it easy to operate?

A: There are English manual or guide video for showing how to use the machine;

If you still have any questions, we can contact by phone or email, etc;


QQ截图20191210134201

Apply to bars, restaurants, breweries, etc.


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment


Contact information:

If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
