DGET-500L
DGET
8438400000
The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC's and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.

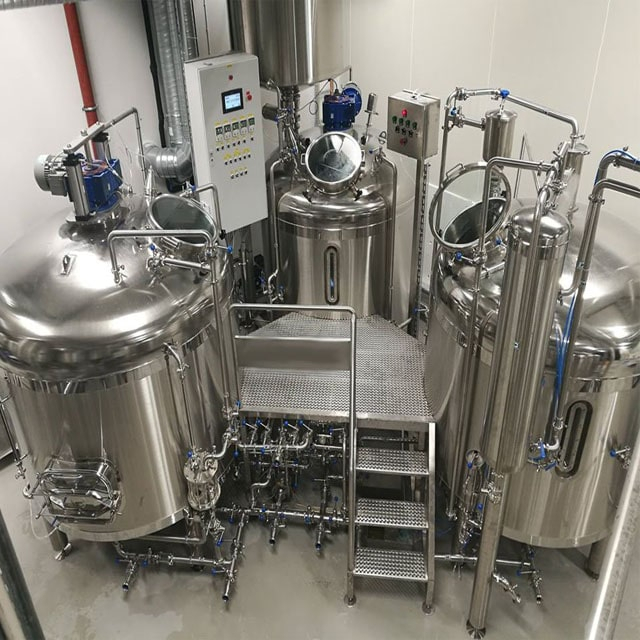

500L brewhouse 2-vessel with HLT
| 500L BREWERY EQUIPMENT configuration: |
| Item | Model | Specification |
| Malt Mill | 200kg/h | Machine Material: Stainless steel |
| Brewhouse | 500L 2 Vessels + HLT | Main equipment:Mash& Lauter tun, kettle&whirlpool, HLT |
| Inner layer material SUS304, thickness: 3.0mm | ||
| External Jacket material: SUS304, thickness: 1.5mm | ||
| The inner surface polishing precision: Ra0.6um | ||
| Heating way: Steam heating,or electric heating | ||
| Tangential whirlpool inlet | ||
| Equipped with hops back | ||
| 100% Stainless Steel suspension type Plate Heat Exchanger | ||
Includes pump, pipeline, heat exchanger, valve, raker, platform, and all other accessories | ||
| Fermentation system | 500L or 1000L Fermentation Tank & Bright Beer Tank. Based on your brewing plan | Inner layer material SUS304, thickness: 3.0mm |
| External Jacket material: SUS304, thickness: 1.5mm | ||
| The inner surface polishing precision: Ra0.6 um | ||
| Cone bottom: 60° | ||
| Design pressure 0.3MPa; Working pressure 0.15Mpa | ||
| Manhole: Top or Side manhole | ||
| Cooling way: Dimple Jacket | ||
Equip with Carbonated Port, Dry Hops Port, Sample Valve, Pressure Release Valve, Pressure Gauge, Racking Arm | ||
| Includes pipeline, yeast adding tank, valve, and all other accessories | ||
| Cooling System | 1000L Glycol Tank & 5HP Chiller | Inner layer material SUS304, thickness: 3.0mm |
| Outer layer material SUS304, thickness: 3.0mm | ||
| External Jacket material: SUS304, thickness: 1.5mm | ||
| The inner surface polishing precision: Ra0.6um | ||
| Pump is Stainless Steel Model | ||
| Cooling media: glycol water | ||
| Includes pipeline, valve, and all other accessories | ||
| CIP system | 100L CIP OR Portable Pump | Main equipment: Alkali tank, Sterilization tank; |
| Equip with control cabinet | ||
| Centrifugal pump | ||
| Control System | PID Cabinet OR PLC Cabinet | Material: Stainless Steel |
| Component has CE certificate | ||
| Optional: CE/TUV Certificate, Siemens component, Omron component | ||
| Others | Filling System, Capping System, Filtering System, Water Treatment System, Pasteurizer and so on |
| 500L brewery equipment details: |
---Brewery Equipment:Brewhouse details:
Spent grains access with slide;
Top-manhole for feeding and checking
---Brewery Equipment:fermenters details:
Three brewery fermentation tank/uni-tanks/CCT
Brite tanks for beer's maturing
| More information: |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Wooden box packaging,Load into container and fix
After-sales service：
After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
Contact information:
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
