Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of
semi-permeable membrane.It is effective with asbestos,taste,colour and odour producting chemicals,
particulates,total dissolved solids,turbidity and radium.RO system is widely used in water supply
treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production,
power stations,electronic industries,and medical treatment.It is capable of removing more than 97%
of total dissolved solids(TDS),about 99% of organic and bacteria in the feed water.
| Material: | |
|---|---|
| Type of Control: | |
| Specification: | |
| Desalination Rate: | |
| Quantity: | |
Water demand increases with the development of industry and cities. At this stage, we can notice the decrease in clean fresh water sources around the world. There are a lot of different technological equipment in the world that perform the function of water treatment. Technological process and technological equipment are selected depending on the pollution of water and hygiene requirements for purified water.

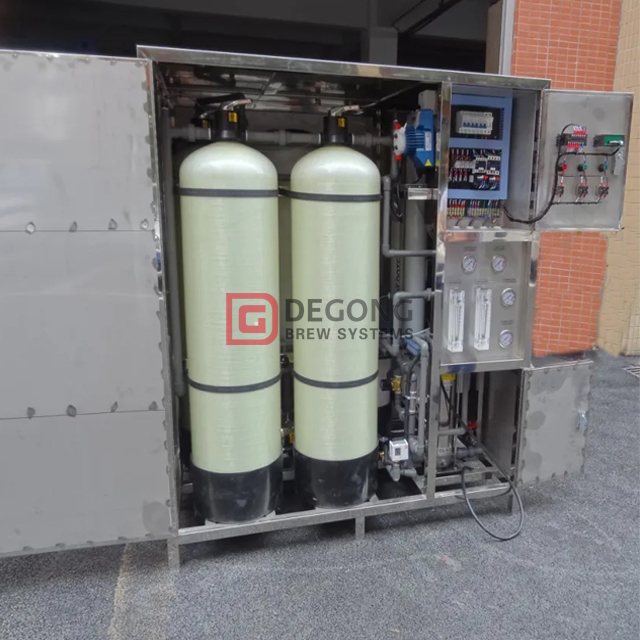

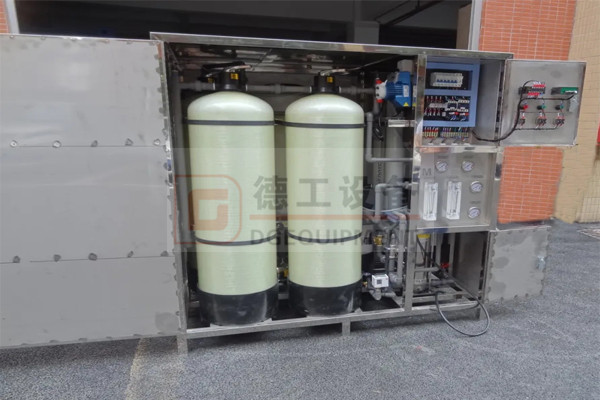

1000LPH water treatment plant
Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi-permeable membrane.It is effective with asbestos,taste,colour and odour producting chemicals,particulates,total dissolved solids,turbidity and radium.RO system is widely used in water supply treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production,power stations,electronic industries,and medical treatment.It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed water.

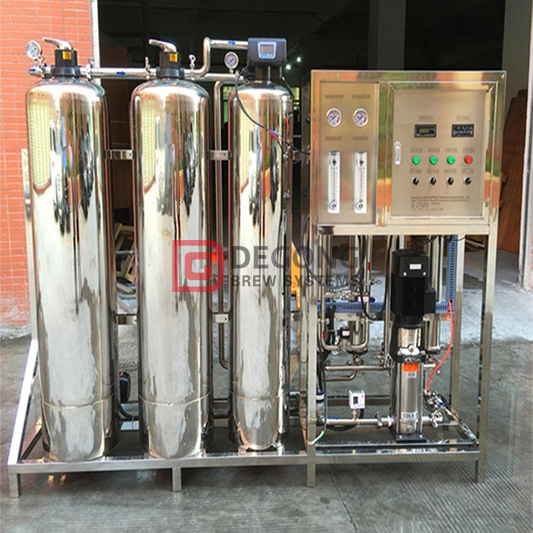

1000L/H RO water treatment plant
| The detailed information of 1000LPH ro water treatment plant |
| Mode | DGET RO-1000 |
| Flow rate | 1000L/H |
| Power | About 2.0KW |
| Voltage | 380V/3ph/50Hz (could be change) |
| Desalination rate | ≥97% |
| Recovery rate | 50%-70% |
| Material | FRP,SS,PVC |
| Configurations | CNP pump&USA membrane |
| Certificate | CE&ISO |
| Warranty | One year |
| Payment | TT or West union(30% deposit in advance,70% blance pay before delivery) |

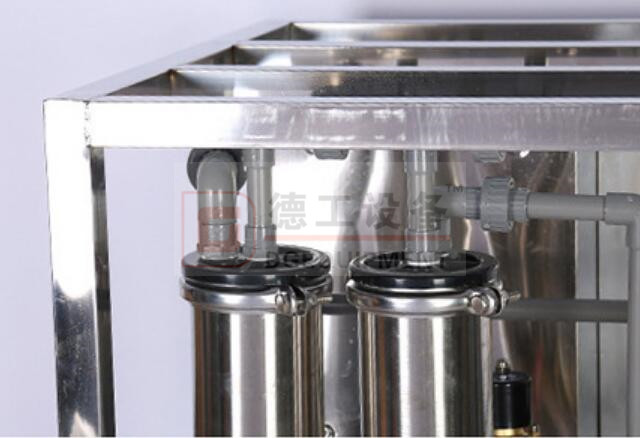

Stainless steel supporting frame

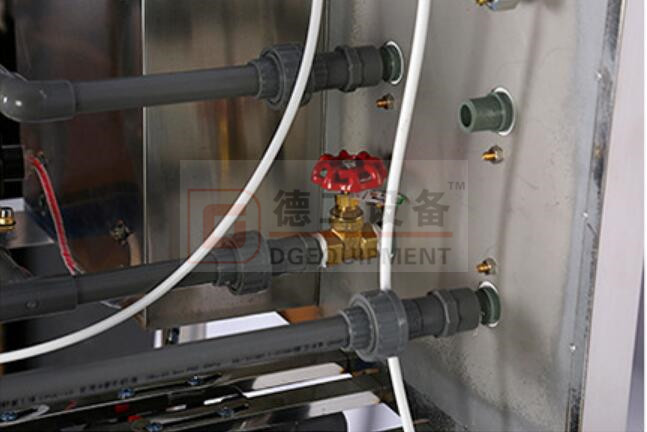

Thickened pipe
| Every parts of the water filter RO system |
No. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | |
6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | |
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes |

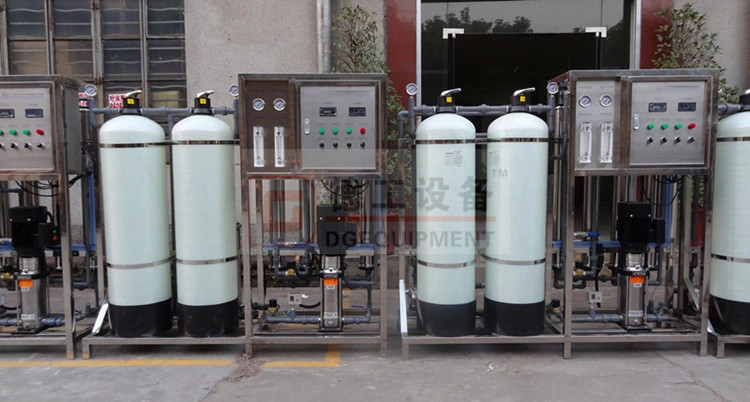

Water treatment equipment in factory

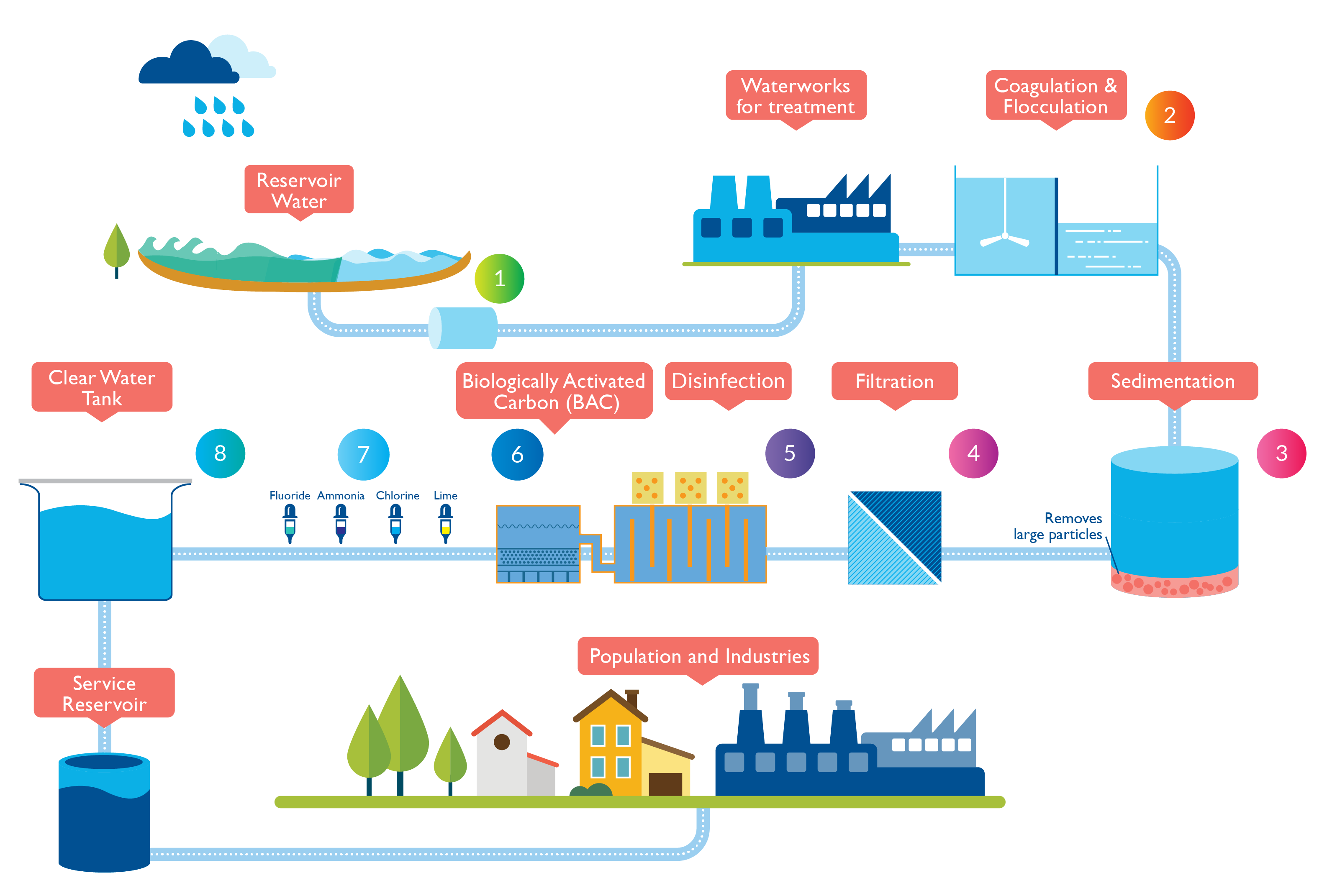

Water treatment process
（Water softener and ozone generator or UV can be added if you need it. It depends on the quality of raw water）
Raw water→raw water tank→raw water pump→sand filter+ carbon filter→ security filter→high pressure pump→reverse osmosis system→ water supply points
| Our advantages: |
1).System can produce water continuously, PLC program controlled, Simple in installation and operation
2).RO system be chosen the import USA membrane
3).Tank level control, automatic stop when the raw water tank without water or pure water tank is full
4).RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.
5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted.
6).Product water quality is continuously monitored by conductivity meter.
| Our company: |
| Warranty period: |
a. For main parts of the equipment such as brewhouse tank, fermentation tank, bright beer tank, hot water tank, glycol water tank,beer keg etc... the warranty period is 24 months.
b. For other components such as refrigeration unit, control components, etc... the warranty period is 12 months.
c. Our equipments have been approved by TUV. Our equipments is accord with the German standard quality.
