1000L Industrial turnkey steel craft beer brewing equipment for sale in Chile
Home » Brewery Equipment » Beer brewery equipment » 1000L Industrial turnkey steel craft beer brewing equipment for sale in Chile

Product Detail

Share to:

1000L Industrial turnkey steel craft beer brewing equipment for sale in Chile

1000L industrial beer brewing equipment, 1000-3000L beer per day, for micro beer brewery and micro brewery factory use, stainless steel made, high quality, automatic control, easy to operate. Supply good after sales services. CE ISO TUV certified. Food grade material. Fully customized.

Heating method:
Maximum pressure:
Brand of components :
  • DGET-1000L
  • 8438400000
Description of commercial 1000L beer brewing equipment

The turnkey 1000l micro beer making equipment generally includs the brewhouse, fermentation tanks, the glycol cooling system for cooling bright beer tanks and fermenters, the controlling unit for temperature setting, and the CIP cleaning system. With more than 10 years of manufacturing experience in beer brewery industry, we can do a variety of brewery equipments based on your specific requirements. And our engineers are always available for you if you require the installation service.

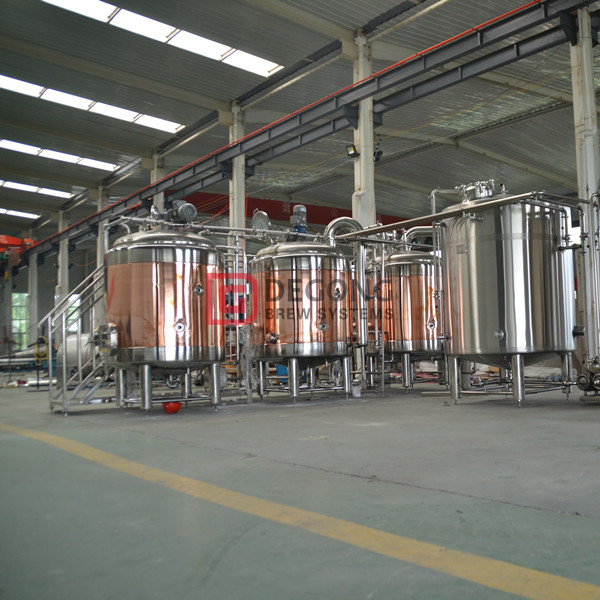

1000L 2-vessel stainless steel beer making system

Standard configuration of the 1000L beer brewing equipment

Grain Milling Unit
Rolling Miller
300 ~500 kg/h

Brewhouse Unit

Mash/Lauter tun

Grain raker with VFD

Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring


Siemens motor for the rake

Kettle/Whirlpool Tun
Steam Jacket on bottom and side/direct gas fired heating/electric heating

Steam vent with condensate ring for kettle stack

Wort blender with VFD

Siemens motor for the blender

Hot Liquor Tank

Steam Jacket heating/direct gas fired heating/electric heating


Stainless steel seamless pipes, Valves, gaskets,

motors, lamps, platform, plate cooler, etc...

Fermentation & Bright Beer Tank Unit

Glycol cooling jacket on cone and bottom;
Side or top manway;
CIP arm and CO2 blow off arm;
Germany import Kieselmann Mechanical relief valve;
Shockproof pressure gauge;
Rotating racking arm;
Dry hopping port;

Carbonation stone; Level meter

Temperature sensor

Vacuum valve

Thermal well

Glycol Chilling Unit
Glycol Tank
Glycol Chiller
Insulated conical top and sloped bottom
Dimple plate on side wall

Control Unit
Brewing and fermetation process Controlling

Manual button control panel or PLC control with touch screen for special

For controlling the temperature of brewhouse and fermenter and bright beer tanks, rotational speed of pump and motor, etc...

CIP Unit
Alkali Tank;  Acid Tank; washing pump;  Transfer & Control panel
Electric heating element inside, double layer structure,

Main features of our beer making machine

1) CE, ISO & TUV Rated Controls and Components.

2) Tanks conform to all ASME pressure vessel ratings and standards.

3) 100% Pressure, leak testing of all tanks, jackets, and hardpiping. All eletronics and brewhouses pre-assembled and tested before shipping.

4) All brewhouse piping is stainless hardpiping. No plastic piping used in the brewhouse for wort or beer.

5) All control panels are pre-wired and pre-tested.

6) PLC Siemens color touch screens control system.

7) Complete mechanical engineering support, on-site installation, start-up and training support for all systems.

Specifications of the beer brewing equipment



Name: Malt miller

Capacity: 300-500Kg/H

Brand: DGET

Material: Stainless steel

Function: Crush malt and make it ready for mashing process

500L brewery equipment (2)_副本

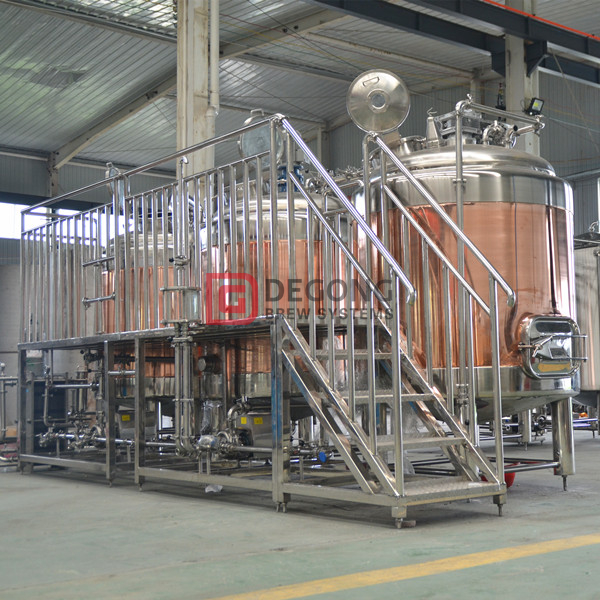

Name: Beer brewhouse system

Capacity: 1000L/batch

Brand: DGET

Material: Stainless steel

Structure: 2-vessel; 3-vessel; 4-vessel based on the requirements

Heating method: Gas; Steam; Electric

Insulation: PU (polyurethane)   Thickness: 100mm

Jacket: Yes. Thickness: 1.5mm

Inner shell: 3.0mm

Outer shell: 2.0mm

Pressure: 3.0 bar

Isobaric: Yes

Process: Mashing - Lauter - Boiling - Whirlpool

Function:  Form the "wort" by mixing the useful matters including sugars, proteins, etc...  extracted from the crushed malt with the help of the enzymes and brewing water.

fermenter (4)_副本

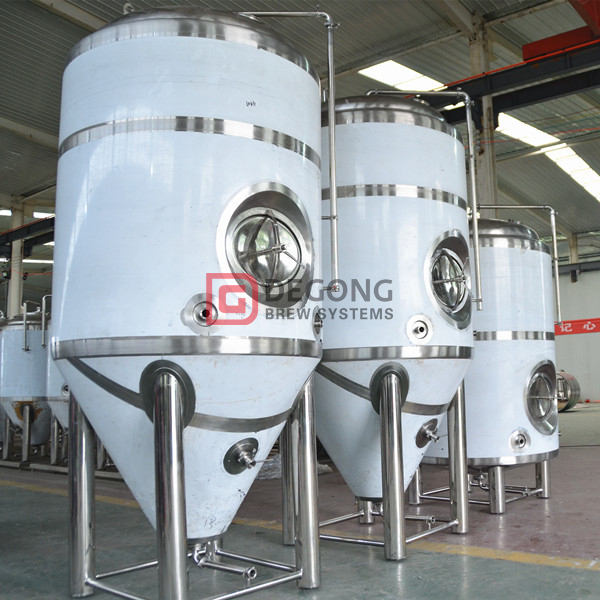

Name: Beer fermentation tank

Capacity: 1000L or 2000L depends on the batch number per day

Brand: DGET

Material: Stainless steel

Insulation: PU (polyurethane)   100mm

Jacket: Yes. Thickness: 1.5mm

Inner shell: 3.0mm

Outer shell: 2.0mm

Pressure: 3.0 bar

Isobaric: Yes

Fermentaion period: 7-10 day for Ale; 2 weeks for Lager beer

Function:  Convert the wort to drinkable beer after a certain period of time (Fermentation period).

CIP system (2)_副本

Name: CIP system (Cleaning in place)

Capacity: 100L

Brand: DGET

Material: Stainless steel

Insulation: PU (polyurethane)

Outer shell: 2.0mm

Isobaric: Yes

Function: For cleaning all the tanks after brewing a batch of beer.

Name:Control system

Brand: DGET

Material: Stainless steel

Type: PLC semi automatic or fully automated type

Components: Siemens; Omron; Schneider; ABB

Function: For controlling all the processes including temperature,pump, motors, etc...


1. Three years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. We will provide the consumable parts at an agency price when you need replacement.

4. Free consultation service before, during, and after sales; Layout plan in 3D or CAD drawings of your brewery


Packaging and logistics

Our usual packing is frame steel or exporting wooden case.

If you want to choose CFR or CIF terms of trade, we can choose the most preferential transportation for you according to the calculation of your goods.







We have already obtained the CE ISO TUV certifications by far. And Degong is the only one that's got the TUV certificate in brewing industry of northern of China.


1.Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in this field for 10 years.


2.Q:What exactly does the 36 month warranty cover?
A:36 month warranty cover all the main tank.one years for the accessories and spare parts.


3.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.


4.Q:Is the 15 day set-up by your engineers mandatory, or can we opt to pass on that service?
A:Yes ,you can,we will offer the manual or video to let you know how to connect the equipment.


5.Q: How to calculate the daily output? How many fermenters do I need?
A: Usually theequipment models such as 300L and 500L are only 300L, 500L wort for mashing capacity. Beer production is according to your fermentation process requirements and the number of fermenters configured.


6.Q: How you pack the products?
A: Normally as the export standard packaging or as you required.

7.Q: What is your available port of shipment?
A: Qingdao port,shanghai etc.
