DGET-1000L
DEGONGET
8438400000

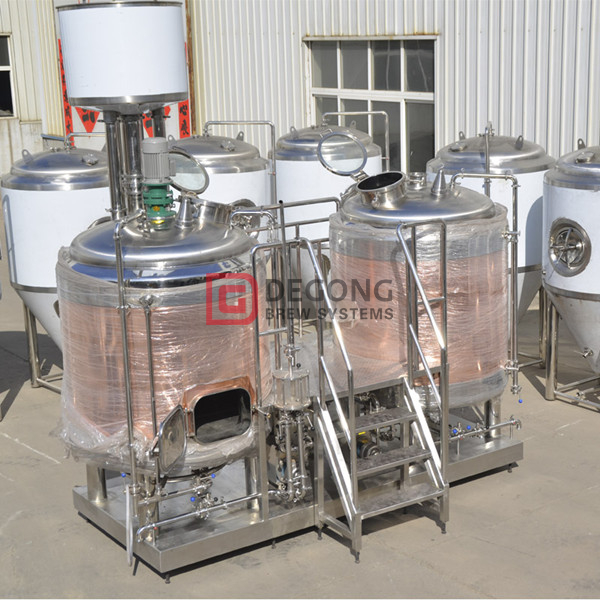

1000L stainless steel brewery system with platform
| Miller system | 200KG/H malt grinder * 1 Malt grist case * 1 Malt conveyor * 1 |

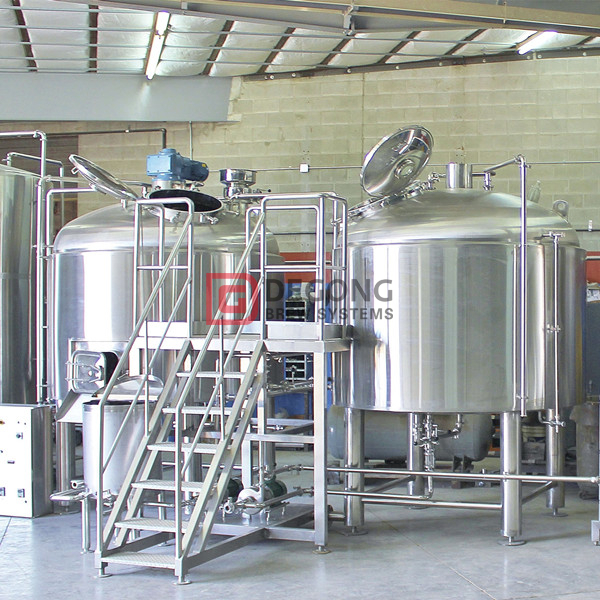

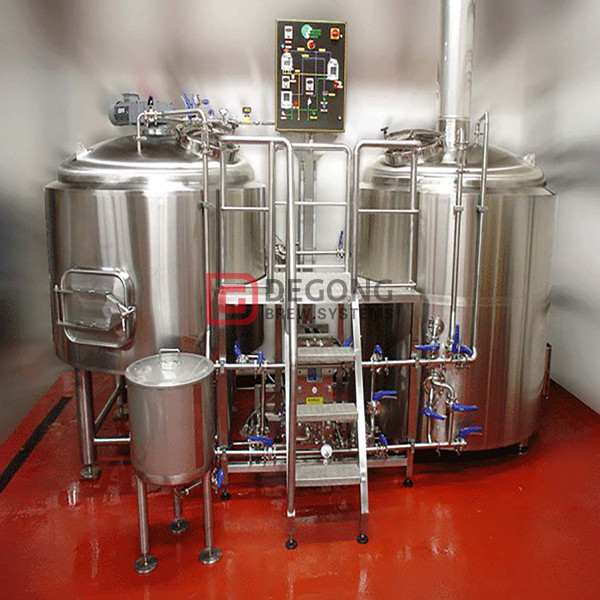

| Brewhouse (Steam heating method) | 1000L mash/lauter * 1 1000L kettle/wrhilpool * 1 2000L hot water tank * 1 Wort pump with ABB motor * 2 10 square meters plate heating exchanger * 1 Working platform * 1 Wort aeration device * 1 Hop back * 1 Individual control box for brewhouse * 1 |
| Fermentation system | 1000L fermentation tank * 2 2000L fermentation tank * 4 10HL bright beer tank * 2 Individual control box for fermentation system * 1 |
| CIP system | 100L alkali tank * 100L acid tank * 1 Washing pump * 1 Control box *1 Wheeled cart *1 |
| Cooling system | 7HP chiller (Copeland compressor) * 2 1500L glycol water tank * 2 Circulation pump * 1 2000L cold water tank * 1 |
| Accessories | Spare parts like butterfly valve, solenoid valve, sight glass, pipes, seals, etc… |
– Food grade sanitary stainless steel 304
– Thickness: 3.0mm for inner, 2.0mm for outer and 1.5mm for jacket
– Tempered glass manhole & Lamp
– VFD wort pump with ABB motor
– Dual stage heat plate exchanger
– SS CIP high-low spraying ball with 360° of coverage
– Fully insulated vessel with PU
– Tangential wort inlet
– SEW/Siemens gear motor for blender and raker
– Wort aeration assembly
– External wort grant
Mashing process inside the tun
Discharging spent grain from side manhole of lauter tun
Pipes integrator
– 100% TIG welded with argon gas protection
– Stainless steel 304 sanitary construction
– Design pressure: 0.3MPa, working pressure: 0.15-0.2MPa
– Interior shell: thickness 3.0mm, mirror polished
– Exterior shell: thickness 2.0mm, 2B-Pickled
– Dimple jacket: thickness 1.5mm
– 4 heavy duty stainless steel legs with leveling foodpads
– Dual cooling zones on the cylinder and cone
– Sample valve
– Thermometer well
– Pressure gauge
– Vacuum valve/ PVRV
– Racking arm
– Side manhole
– SS CIP spraying all with 360° of coverage
– Dry hopping hole
– Lifting lugs
– Carbonation stone well reserved
4 pieces of Stainless steel heavy duty pipes

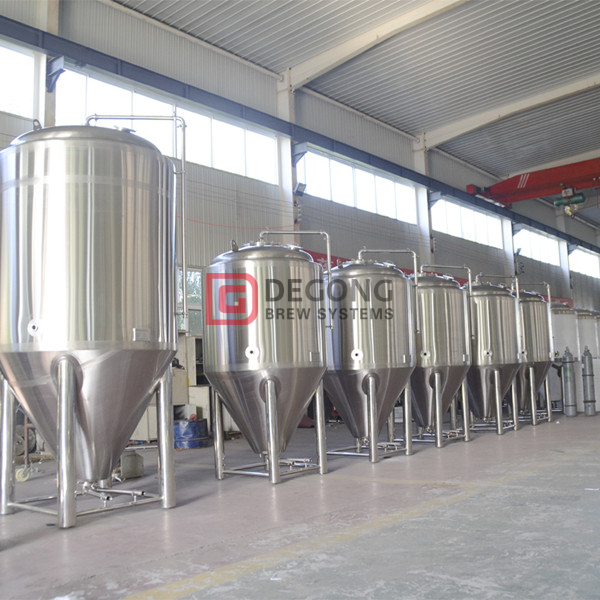

Premium 1000L beer fermentation tank in a row
– It doesn’t begin and end with a quote. DEGONG goes the extra mile before the sale to assist with equipment layouts, utility requirements and other critical information so our “potential” customers can make educated decisions regarding the suitability of a property.
– We provide the potential customer the technical supports like 2D and 3D drawings according to the practical layout
– Once your facility is ready for equipment startup, it is time for commissioning and training. We are responsible to dispatch our engineer to assemble your brewery equipment at site and then train your staff by brewing 1 or 2 batches of pilot brew.
– For the malfunctions beyond the warranty period, Degong will also be responsible to it, but the seller should take in charge of the expenses.
