DGET-1000L
DGET
8438400000
DEGONG is a professional beer brewing equipment manufacturer,which set designing, production, installation, commissioning in one. All equipment is not fixed, we can design the most reasonable equipment according to different needs to meet different customers.
Beer mashing system introduction
The beer mashing system contains 4 functions:mashing,lautering,boiling,and whirlpool.The component of the system contains mash/lauter tank,boiling/whirlpool tank,hot water tank,plate heat exchanger,pumps,wort oxygen system,hops filter,wort grant,and operation platform.Of course this is just one confugeration,you can require other configurations according to your needs,such as mash tank,lauter tank,boiling/whirlpool tank or others.

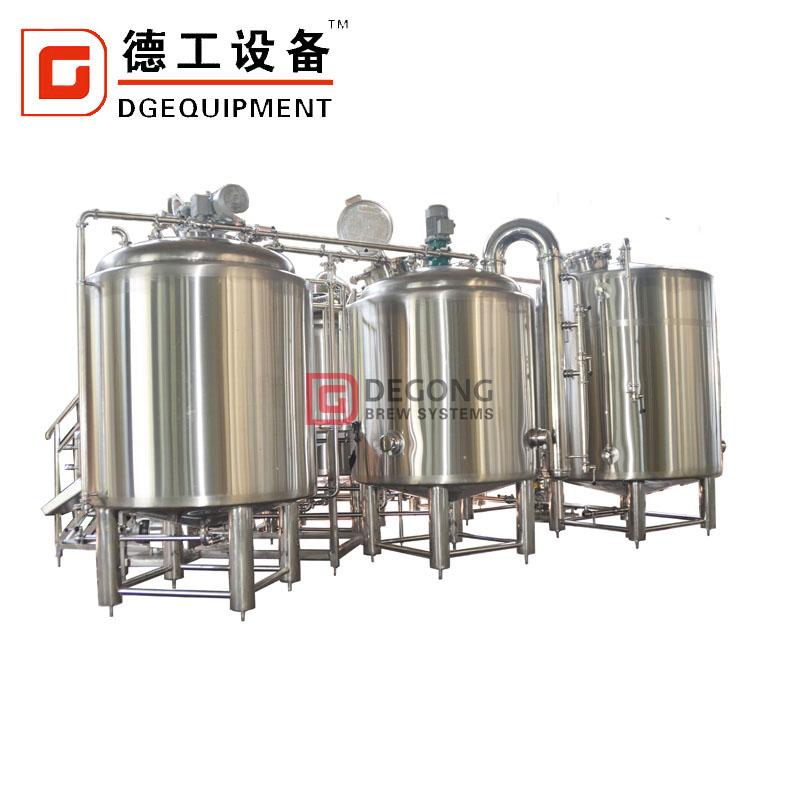

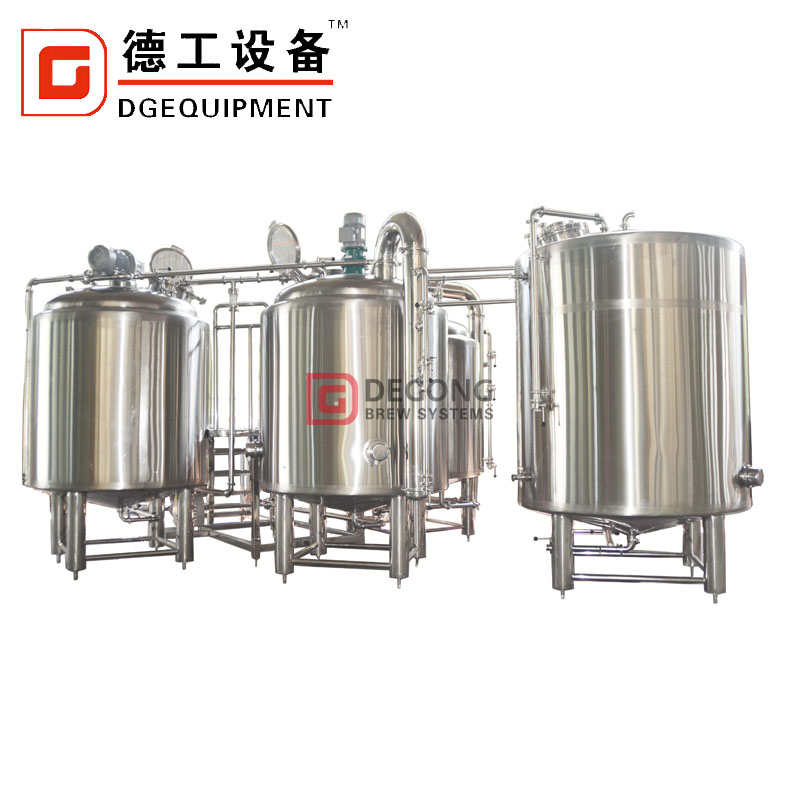

1000L Brewing Equipment Commercial Home Beer Brewing Brewery Equipment for Beer Making(3 vessels brewhouse/mashing system)
Other Supporting equipment
– Basic frame with work platform (excluding the smallest brewing machines)
– Pipe system with pumps
– Wort cooler (may be used as external part)
– Wort aeration candle (may be used as external part)
– Electric system for measuring working parameters and manual or automatic control system of the wort brewing process.
– Waste steam outgoing system
A hot steam generator, a hot water tank and a tank for treated cold water are usually an external accessories of the brewing machine.
Design backflush pipe to avoid blocking filter plate
Automatic spent grain removable system
Glass manhole,hydrator,cleaning ball
Plate heat exchanger,you can choose single stage(ice water)or double stage(city water and glycol water)

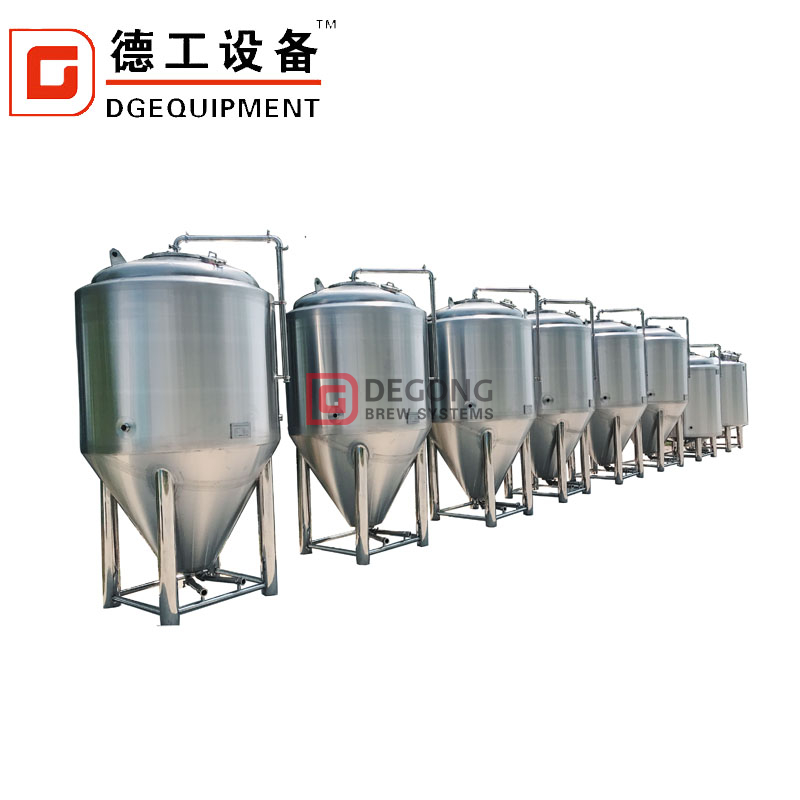

Fermentation system introduction
Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.
Inner Shell: 4mm, 304 Stainless Steel Outer Shell: 2mm, 304 Stainless Steel Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar), designed to suit all types of craft breweries. Inner cooling jacket design pressure 29psi (2 bar). 25% headspace for fermenting process. Tank inner side is polished within 0.6µm sanitary finish. Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish). Shell and bottom cone cooling jacket for better temperature control. |
Manhole on the top head (standard). Level Indicator (standard) for inner tank. Vacuum/Pressure combined valve. Tank top fittings, pressure gauge. Pressure keeping valve with sight glass for controlling and monitoring fermenting process. Built in rotary spray ball within the inner tank for cleaning. Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable. Manual ball valve for easy glycol changing over thus temperature control. Other customization possible upon request. |
If you have interest,please get in touch with me
