1000L Brewhouse for Beer Brewery Equipment Professional Brewing Systems Beer Maker Machine

DEGONG brewery equipment advantage

• Complete, new, and high quality configuration.

• Auxiliary systems selection of leading and imported brand.

• The auxiliary systems are long life, high-performance, high-quality, low-loss.

• Certified stainless steel(304,316) material for all tanks.

• Electrical accessories reach CE, PED, export standards.

•


  Supporting auxiliary system voltage and frequency match your standard exactly.




• New production technics.

• Stable quality, high performance, strict quality control.

• All the equipment are adopted 100%TIG welded joints, mirror Polishing.

• Installation assistance, assembly, training.

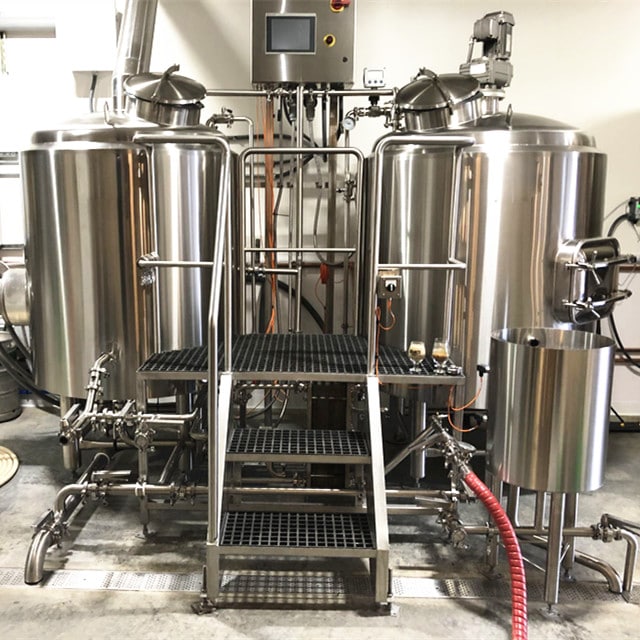

beer brewery equipment brewhouse

For 1000L brewhouse, we recommend 2-vessel or 3-vessel

2-vessel:mash/lauter tun+boiling/whirlpool tun+hot water tank

3-Vessel:mash tun+lauter tun+boiling/whirlpool tun

              mash/lauter tun+boiling tun+whirlpool tun

You can choose according to your own needs.

Mash/lauter tun:

Material:SUS304/SUS316/red copper

Interior Shell: 2B/mirror plate; TH=3.0mm

Exterior Shell:2B/mirror/brushed plate; TH=2.0mm

Dimple, coil jacketed for steam heating,electric

heating tube,combustion chamber

ABB stirring motor

80mm polyurethane for insulation

Round glass manhole, dish head,with temperature sensor,cleaning tube, standard Washing ball, cleaning pipeline

Boiling/whirlpool tun:

Material:SUS304/ SUS316/red copper

Interior Shell: 2B/mirror plate; TH=3.0mm

Exterior Shell:2B/mirror/brushed plate; TH=2.0mm

80mm polyurethane for insulation

Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass

Lauter plate: milling

Racking device,positive turn cultivating spent grain,reverse discharging spent grain

Tangential whirlpool inlet

With cleaning tube, with standard washing ball,cleaning pipeline

Hot water tank:

Material:SUS304, SUS316, red copper

Interior Shell: 2B/mirror plate; TH=3.0mm

Exterior Shell:2B/mirror/brushed plate; TH=2.0mm

80mm polyurethane for insulation

Top dish head, bottom conical head, round glass manhole

Dimple, coil jacketed for steam heating,electric heating tube

With a cleaning tube, with a standard wash ball, cleaning pipeline, overflow port,temperature sensor

1000L brewhouse accessories:

Plate heat exchanger, wort pump, hot water pump, sight glass, glass manhole etc.

brewhouse accessories
