DGET-1000L
DGET
8438400000
Fermenting vessel 1000L/batch(per tank)
Medium Beer Fermentation Tank
All parts of beer fermentation tanks are made in premium grade certified stainless steel materials (2B or precise polish for available surface).We are always attaching high importance to be in line with international standard and fortunately, DEGONG has taken up main markets in the Europe,Africa and America. We also can custom fabricate any tank to meet your brewery's space and height restrictions.

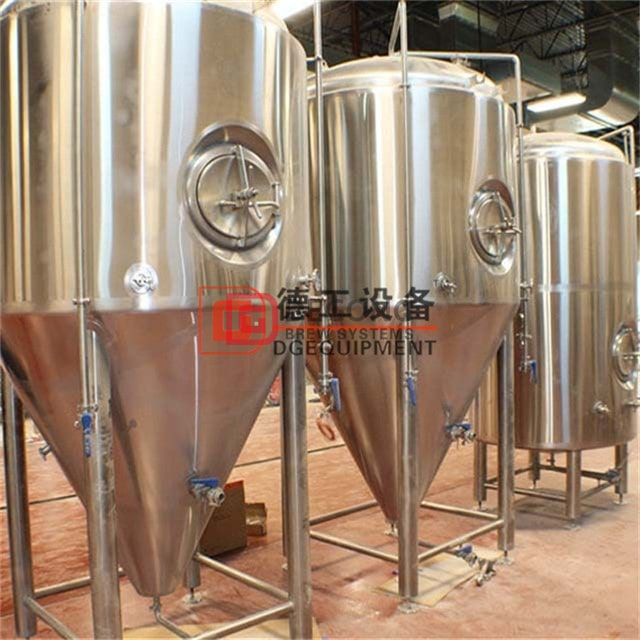

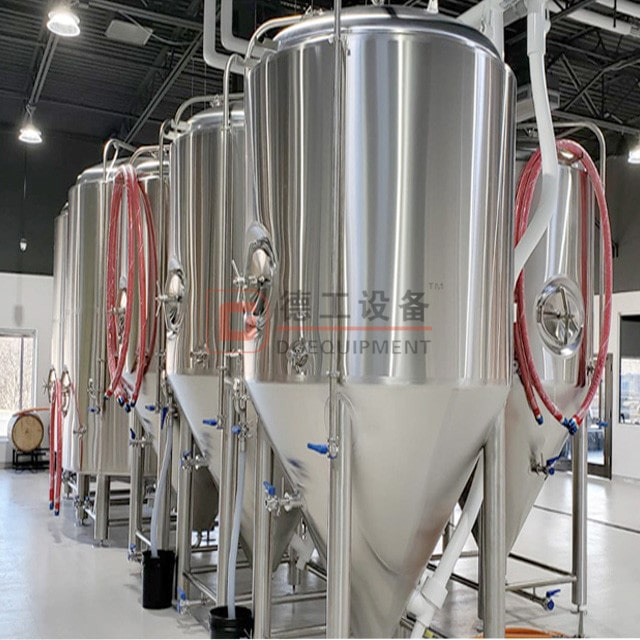

Conical beer fermenting vessel(top or side manhole)
| 1000L beer fermenting vessls | |
| Net Volume | 1000 L |
| Total Volume | 1300 L |
| Dimensions: | Ø 1300 x 2500 mm |
| Bottom Angle of the Tapered Part: | 60° Conical |
| Design pressure | 0.3Mpa |
| Working Pressure | 0.15-0.2Mpa |
| Dish Head | Domed |
| Legs | Adjustable, 4 pieces |
| Cooling jackets | Independent, in the cylindrical and conical part |
| Cooling area | 2.68 m |
| CIP Arm | DN 32/40 with DN 32/40 valve, 1 pc |
| Drain Outlet | DN 32/40 with DN 32/40 valve, 1 pc |
| Beer Inlet and Outlet | DN 32/40 with DN 32/40 valve, 1 pc |
| Spray Ball | Screw connected, 1 pc |
| Manway door | 350/400/500 |
| Safety Valve | At the upper bottom |
| Sample valve | |
| Electronic Temperature Sensor | PT 100, 1 pc |
| Bimetal Temperature gauge | DN 25 1 pc |
Breather valve with Pressure gauge;side manway;drain outlet
Specification of fermentation tanks/unitanks:
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.4~0.6 μm, hygiene surface
All Interior welds ground to a smooth 0.4~0.6 μm sanitary finish
Flanged and dished head top and bottom
Over 20% headspace unless a different volume is requested
Combined drain extensions and beer port are standard
Top manway or side manway door
Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Welding CIP arm and rotating 360 degree reach spray ball
Carbonation system with micron stone
Solenoid valve, pressure relief valve (safe valve) are standard.
Pressure gauge
Temperature sensor well
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
We can arrange the tanks reasonably according to your plant. After you purchase, we have a dedicated engineer to install it for you, if you need. Currently we have many projects in operation, you can contact or check the quality of our system.
DEGONG introduction
