| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Matrial: | |
| Control panel: | |
| Conical bottom: | |
| Quantity: | |
DGET-1000L 1500L 2000L
DGET
8438400000
Bright beer tank introduction
Beer is filtered and pumped into another tank known as a secondary fermentation or brite tank after the fermentation process is largely complete.
BBT Often called a “brite” beer tank, serving tank or secondary tank.Bright beer tank is usually has two types: vertical brite tank and horizontal brite tank. Vertical fermenter generally adopts cylindrical and cone bottom structure.The upper head is a cone seal or a dish. The horizontal fermenter is a cylindrical cylinder and a dish head structure. The inner is made of high-quality stainless steel. The cladding can be brushing/mirror/copper. It is equipped with breathing safety valve, sample valve, temperature probe, CIP interface, wort interface, top or side manhole etc.

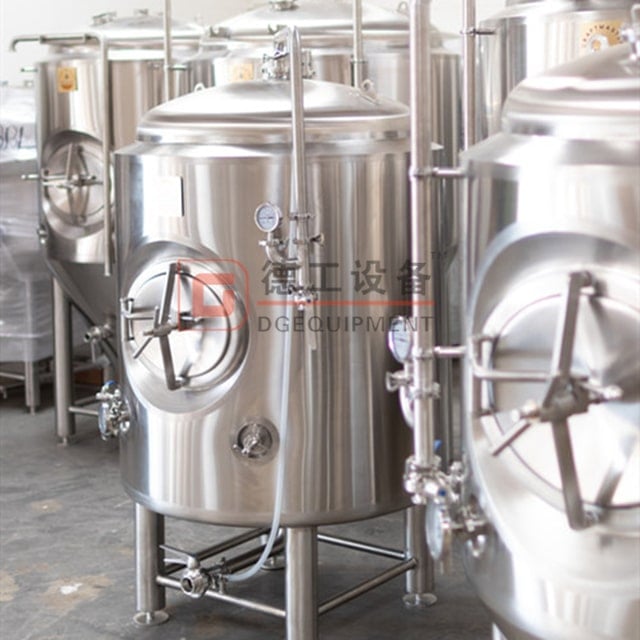

Vertical bright beer tank
Horizontal bright beer tank
Main features of bright beer tank
- All tanks are made of food grade stainless steel 304.
- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm
- Insulation: Polyurethane thickness: 100mm
- Working pressure: 1.5-2.0 bar Design pressure: 3.0 bar
- Cone 150° resist compression design
- Pressure controlled by pressure gauge automatically.
- 100% TIG welding with pure argon gas shield.
- Glycol jacket: dimpled plate on cone and side
- Heat exchange area: 2.69 square meter
- Interior surface: mirror polishing
- Exterior surface: oil bushed finish
- Interior full polished to Ra0.6µm without dead corner

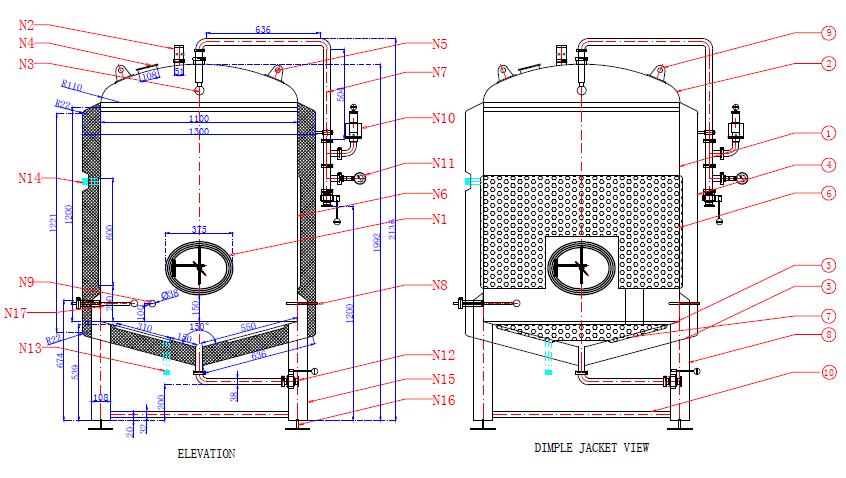

N1.Side manhole N2.Breathing valve N3.Cleaning ball N4.Dry hops adding port N5.Lifting lug N6.Cooling jacket N7.CIP Pipe N8.Temperature sensor N9.Sample valve N10.Mechanical regulation valve N11.Pressure gauge N12.Drain outlet N13.Cooling inlet N14.Cooling outlet N15.Legs N16.Base plate N18.Carbonation stone
Service
Delivery&Packing
The packing will be wooden case or iron frame according to the LCL OR FCL,to asure the tanks will not be destroyed during shipment.
Contact us
If you want to know more knowledge about beer brewing or you want to buy beer equipment,welcome to get in touch with me.
