10 BBL 2/3/4 vessel available brewery equipment fermentation vessel beer brewing equipment plant

The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC’s and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.

We manufactures brewhouses ranging from 1bbl up to 100bbl. Brewhouses are available in 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 stainless steel.

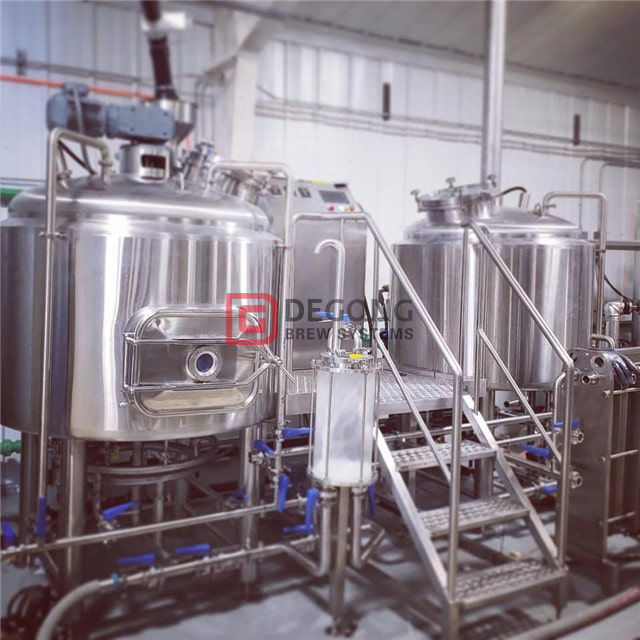

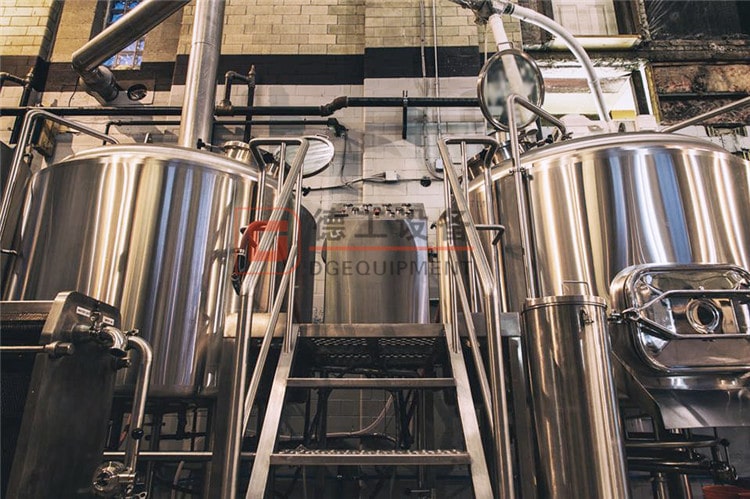

2 Vessel Brewhouse

2 Vessel Brewhouse details（Sample）

• Mash / Lauter Tun with side grain out access

• Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

• Semi-Automated Controls (Manual, Semi-Automatic, or Fully Automated)

• Sanitary Pumps with VFD Controls

• Stainless Steel Plate Heat Exchanger integrated temperature controls

• Manual Sanitary Butterfly Valves

• Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions

• Continuously welded, heavy-duty type 304 stainless-steel construction

• Shallow conical bottom cone for complete liquid run off

• Integrated and Internal CIP

Glass manhole and grain raker

False bottom filter,transfer pump;stainless steel platform and sight glass

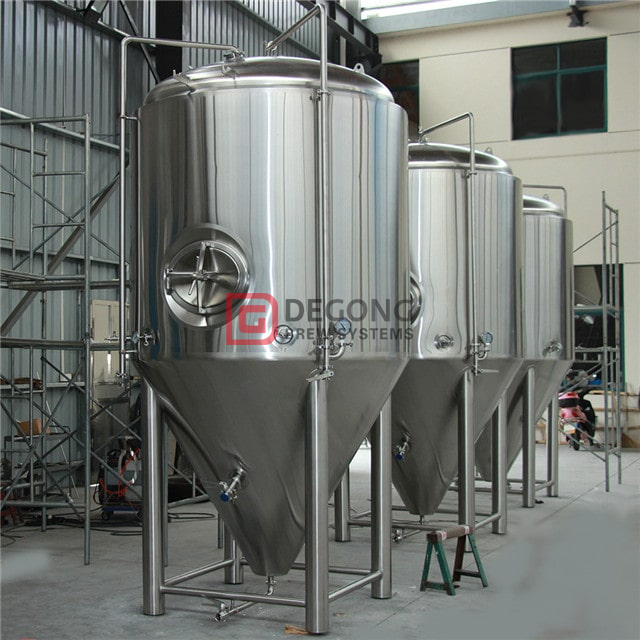

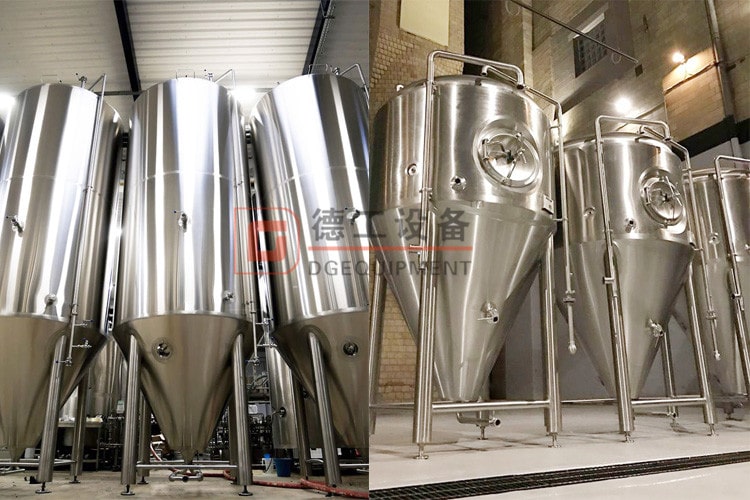

Cylindro-conical tank(brewery fermenter)

Fermentation tank details:

• 304 stainless steel, TIG weld construction

• Reinforced stainless steel legs, leveling foot pads

• Shadowless manway

• 25% headspace

• Cylindro-conical design

• Multi-zone glycol dimpled cooling jackets

• Rotary spray-ball CIP 360° coverage

• CO2 blow-off arm

• Hop dosing port, easy-access ladder hooks

• Rotating racking arm, DIN fitting & easy-grip handle

• Sanitary thermowell

• Sample valve

• Pressure / vacuum relief valve (PRV)

• All butterfly valves included

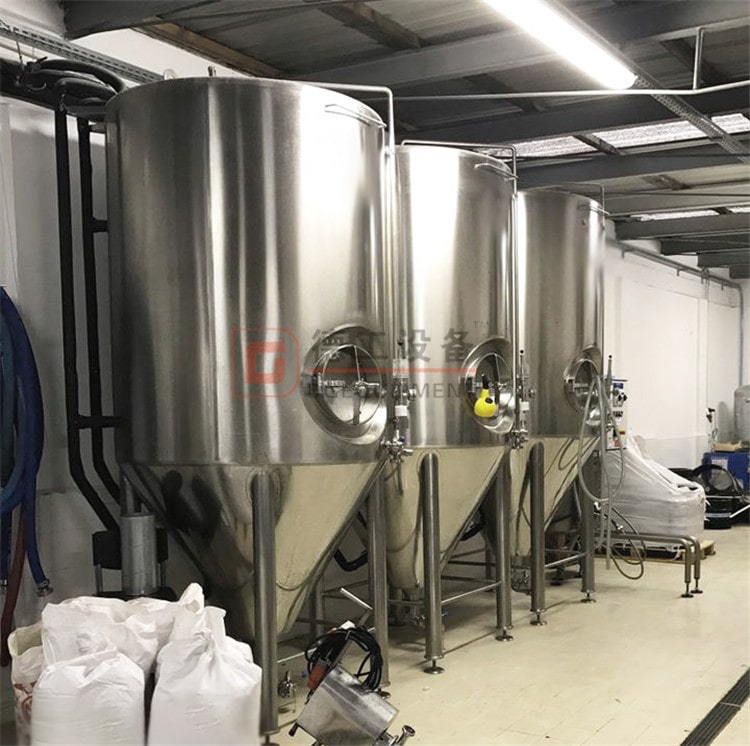

10BBL fermentation tanks in brewery

Horizontal lagering tank

Lagering Vessel stackable details：

• Stackable design for space saving

• 304 stainless steel, TIG weld construction

• Reinforced stainless steel legs, leveling foot pads

• Shadowless manway

• Multi-zone glycol dimpled cooling jackets

• Rotary spray-ball CIP 360° coverage

• Rotating racking arm, DIN fitting & easy-grip handle

• Sanitary thermowell

• Sample valve

• Pressure / vacuum relief valve (PRV)

• All butterfly valves included

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

Brewery equipment can be used in restaurants, bars and hotels etc.

After-sales service：

• After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.

• Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.

• For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.

Our certification

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

Wooden box packaging,Load into container and fix

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
