| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Matrial: | |
| Heating method: | |
| Control panel: | |
| Quantity: | |
DGET-10 Barrel
DGET
8438400000
The 10 barrel brewing equipment is a popular model for customer.It is not too big and not too small, it can be used for both commercial used and private brewery. In addition,10 barrel brewing equipment’s production range is wide and the output can be controlled according to the number of fermentation tanks.The complete brewing system includes miller, mashing system, fermentation system,cooling system, control system and CIP system. Each system can be customized according to customer's needs, such as 2 brewhouse or 3 brewhouse, steam heating or electric heating, etc. . . . .

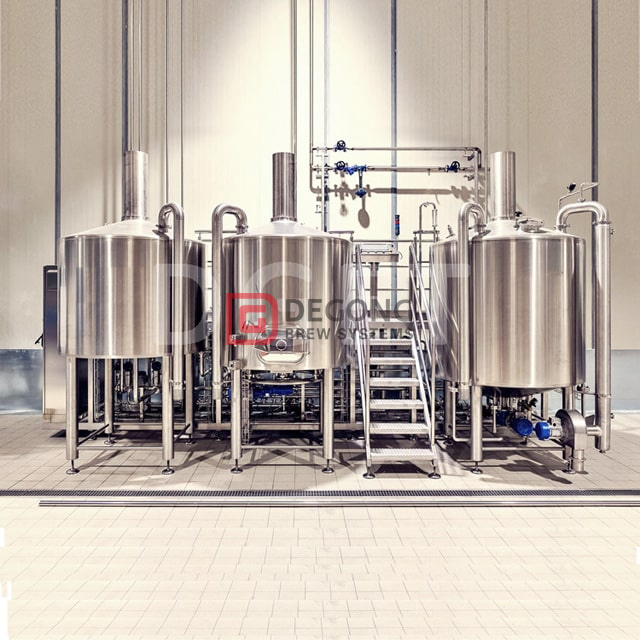

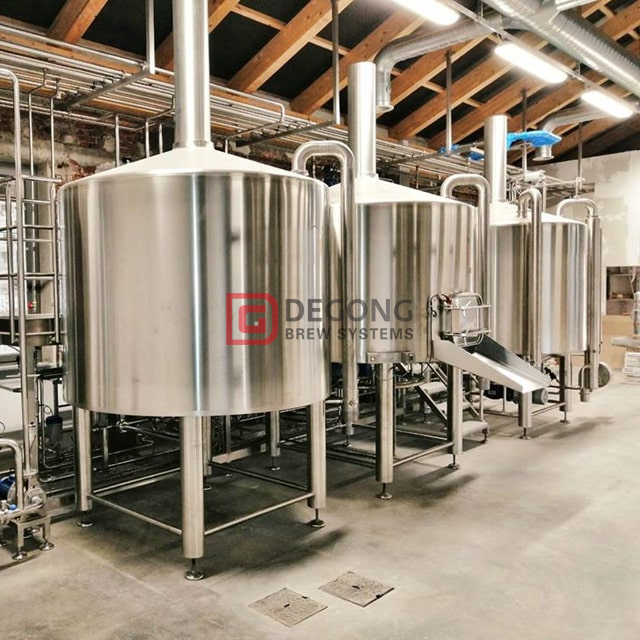

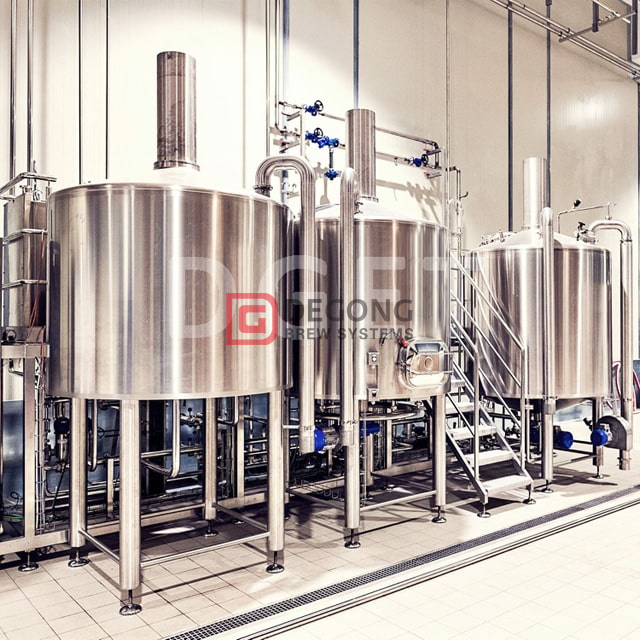

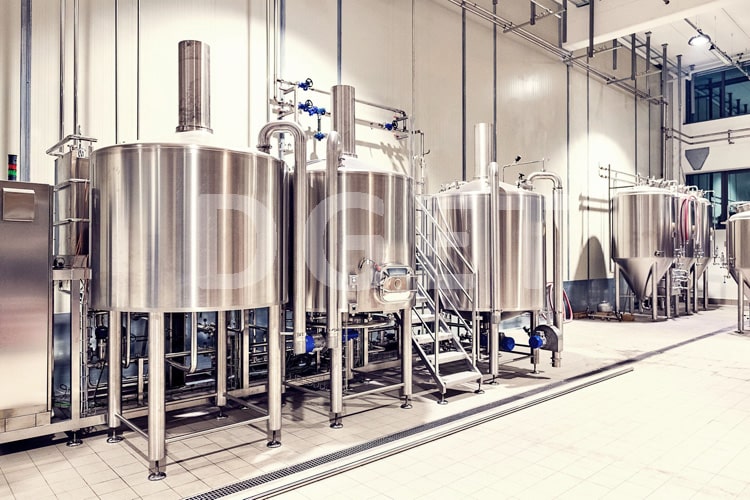

| What is a beer brewhouse/beer mashing system |
Brewhouses/beer mashing system are comprised of several key pieces of brewing equipment. The whole brewhouse has four function,which is mash,lauter,boiling,whirlpool. In the skilled hand of the brewmaster, convert grain that has been milled through a specialty grain mill, into sweet liquid called “wort”. Wort is subsequently fermented and finished in specialized beer tanks called fermenters and brite tanks.
| Configuration of brewhouse/mashing system |
Configuration:
Milling: 2-roller or simplified 4-roller

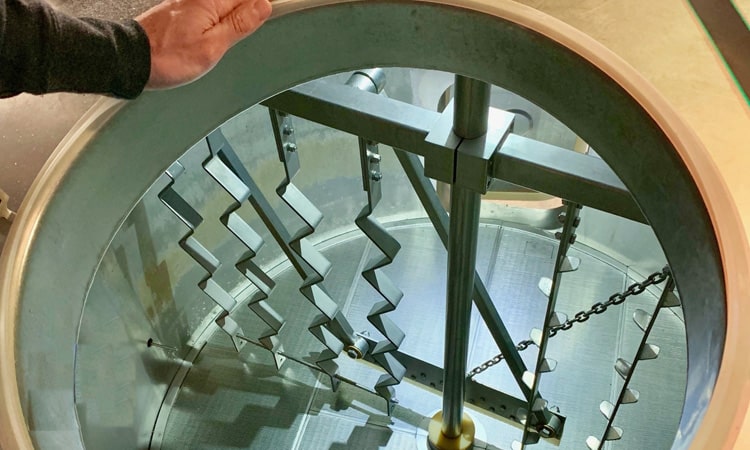

Mash &Lautertun: Brewing &sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
Hot Liquor Tank: Steam heating, direct burning or immersion electric heating.
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
| Specifications |
SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm
Optional heating style of steam, electric and direct fire for brewhouse tanks
PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard
VFD controlled reducer and wort pump

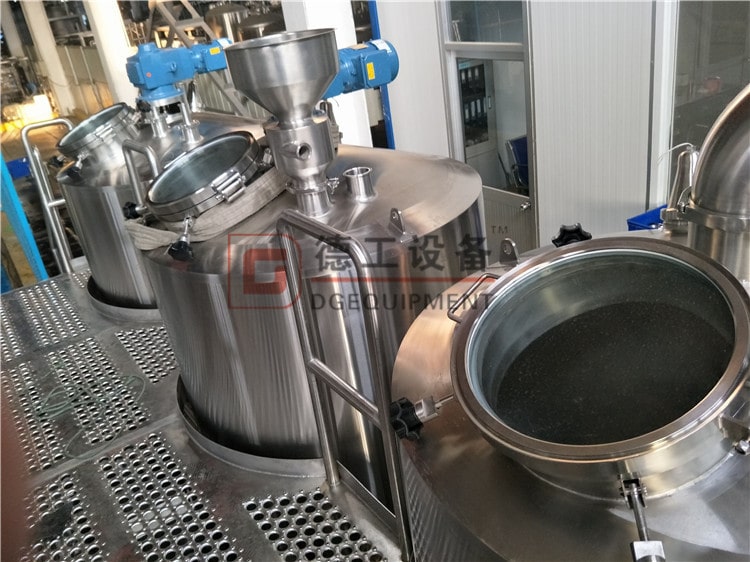

Grist hydrator with strike water mixing station
Plate heat exchanger for cooling wort
Grant /hop guns for filter or storage first wort
Independent hot liquor tank or combine with brewhouse tanks
Independent cold liquor tank
Top glass manhole for checking mashing condition
Sight glass to check if the wort is clean
Wort oxygen system
2D/3D engineering for brewery set up simulation
| Engineer install equipment and teach how to brew |
| Contact us |
