DGET-1000L
DGET
8438400000
Brewhouse system 1000L/batch
Beer equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned, but larger than breweries for the restaurant, bars etc., as it distributes beer to local restaurants and bars, parties etc.
To run a microbrewery and get a suitable margin from this kind of business model, we suggest starting from 1000L/brew capacity minimum that concerning both the budget limitation and expanding capacity in future. Also, 2000L-3000L beer equipment is common to see for a little larger business. Craft beer equipment is more professionally functional and concerns more details to brew in a more smart way, trying to decrease the factors that may affect the brewing speed or beer flavors.
Premium 2 vessels with hot water tank brewhouse system
High quality Spare Parts For Brewhouse：
Tri-Clamp Type PT100 for all the tank transmit temperature signal more precise.
Equip with hop filter before wort into pleat heat exchanger
Laser cutting sieve plate with the gap 0.7mm and thickness is 4mm
Rake knife/Agitator motor use Siemens brand,Wort pump and water pump motor use ABB brand, for stable using.
Two stage heat exchanger, stainless steel type.
Side mounted grain outdoor with grain chute
Glass type wort grant to make sure wort more clear during lautering. ( optional)
Wort gravity testing plateform
Lauter tank with the function of grist remove auto device.
Stainless steel butterfly valve for all tank,several level to adjust, easy to control the flow.
Tempered Glass top manway for brewhouse LED Sight glass on the top. ( optional)

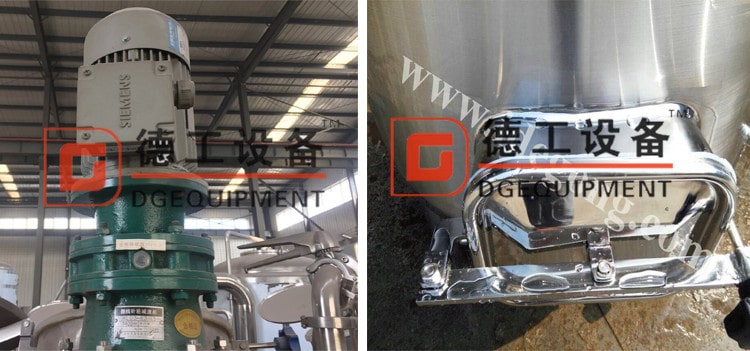

Simons motor & grain hatch outdoor
| Beer Brewhouse unit | |
| Components | Main specification |
| Mash/lauter/Whirlpool tun | 1000L |
| 30% headspace | |
Steam heating with insulation | |
| False bottom | |
| Rake&motor | |
| Spent grain outlet | |
| CIP, sight glass | |
| Tangential inlet | |
| Kettle tun | 1000L |
| 30% headspace | |
| Steam heating with insulation | |
| Steam condenser | |
| Wort outlet and trub outlet | |
| Wort pump | 3T/hr, Sanitary |
| Hot liquor pump | 3T/hr, Sanitary |
| Plate heat exchanger | 10m2 Two stage Connected with wort aeration device Disassembles |
| Work platform | Disassembles |
| Optional | Wort gran Hopbackt Hopper Pneumatic valve Wort flow meter Sterile air compressor |
