DGET-300L
DGET
8438400000
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
| Fermentation vessel description: |
300L Fermentation Vessel contains excellent insulation performance, effective chilling system and complete functions. With 100% passed pressure and leakage test .
The 300L craft beer tank is fully TIG welded and ensures 3 years quality warranty. Depend on its humanized design and brand new components.DGET offers this customized beer fermentation machine with customized design, production and competitive price.
Side or top manhole fermentation tank available
Fermentation vessel features:
Effective volume: 300L
Gross volume:370L
Vessel Style: Ellipse top & Conical bottom
Inner Shell thickness=3mm
Dimple Jacket thickness=1.5mm
External Shell thickness =2mm
Insulation: Polyurethane 70mm
Design Pressure: 0.3Mpa
Construction with TIG welding.
All pipe lines and vessels should pass tightness and pressure test before delivery.
Nozzles, inlets, outlets and connections should be sealed before delivery.
All medium connections are Tri Clamps.
Top hatch;Thermometer;Pressure gauge.
60 degree cone bottom
Note: Photo of equipment is subject to change.

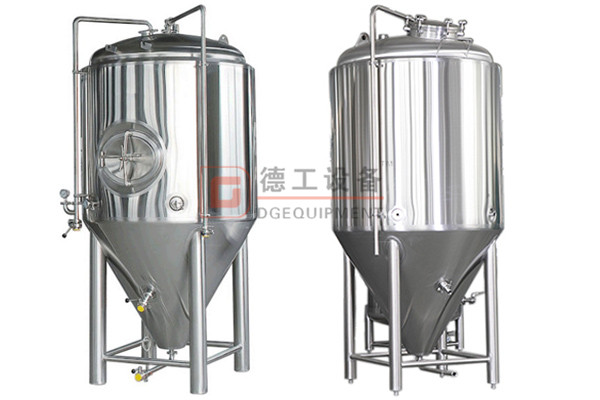

A set of fermentation vessel with top manhole
This 300L commercial beer fermentation machine is designed and produced for the use of beer fermenation application, with chilling jacket and body insulation. Users can acquire pressure and temperature paramenters with the installed indicator or gaugesp; The specially designed top manhole is very convenient for adding and remove hops; The CIP spray ball makes cleaning easily and completely; Beside fermetation performance, it can also be used as bright beer storage tanks; It is very suitable for small brew occation like pubs and restaurants.

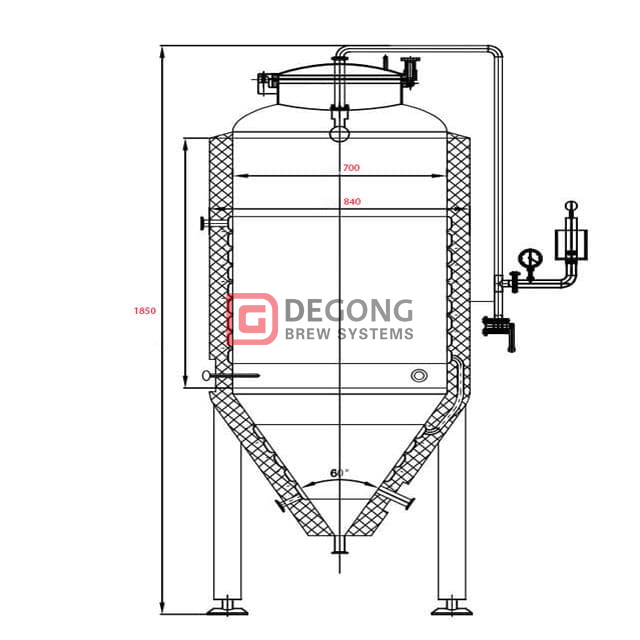

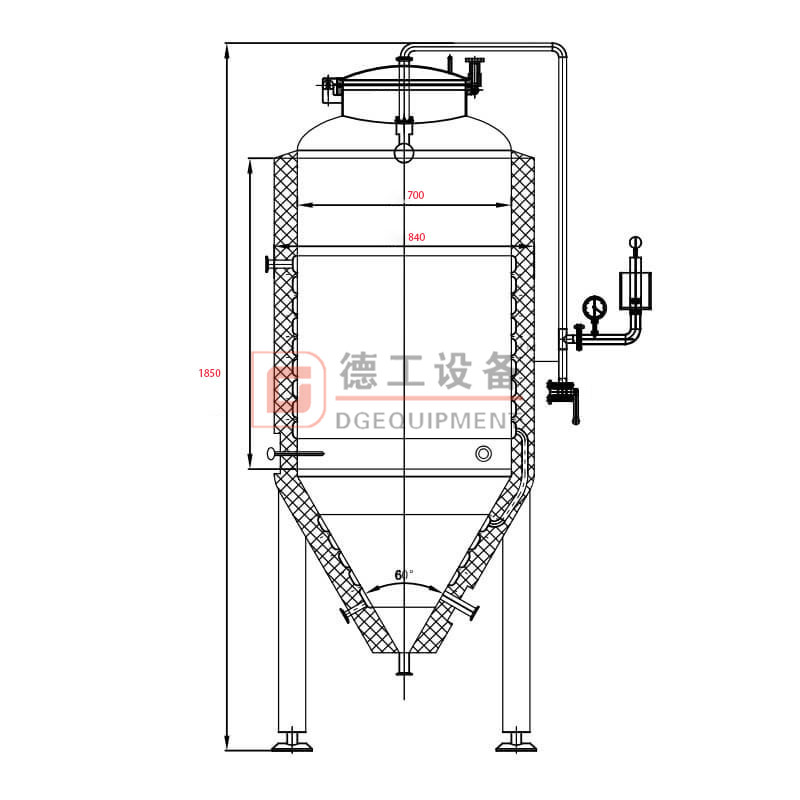

300L Fermentation vessel drawing
| Our company: |
At DGET we want to be sure that each tank we fabricate is specific to the production and display needs of each customer we serve. Our beer fermenters are no exception. Our polished, ground smooth, and passivated welds ensure quality sanitation characteristics.

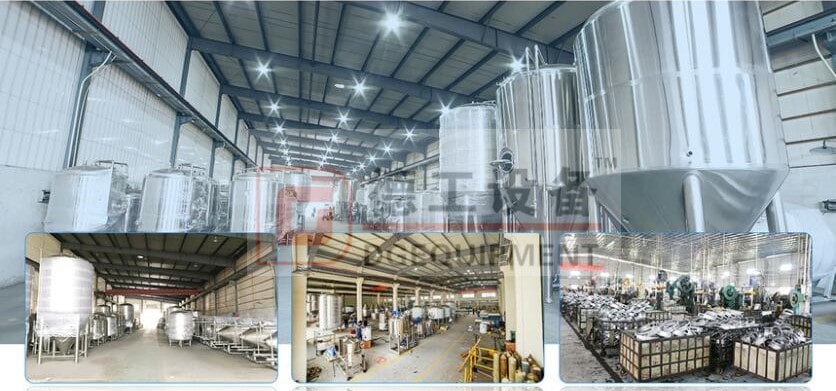

Workshop
Certification
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

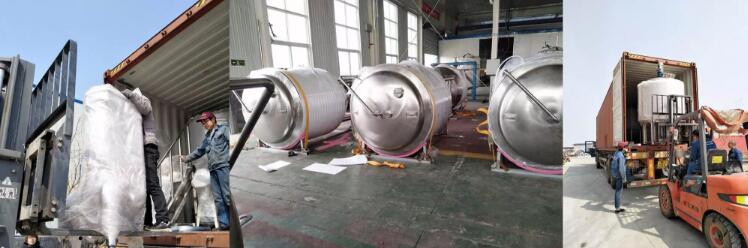

Ready for shipment
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
