DGET-10BBL
DGET
8438400000
2-VESSEL brewhouse system |
2-Vessel Brewhouses offer brewers a simple and cost effective brewing solution. By combining the Mash Tun & Lauter Tun, and the Kettle & Whirlpool into our typical 2-Vessel solution, we provide space and cost savings without compromising brewing quality and control.
2-Vessel Brewhouse systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility.
Typical size range: 2 BBL, 3 BBL, 5 BBL, 7 BBL, 10 BBL, 15 BBL ,20 BBL (custom sizing & configuration available)
2 vessel brewhouse system mash lauter tun
Mash / Lauter Tun with side grain out access
Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control
Semi-Automated Controls
Stainless steel Sanitary Pumps with VFD Controls
Stainless Steel Plate Heat Exchanger
Manual Sanitary Butterfly Valves
Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
| 3-VESSEL brewhouse system |
3-Vessel Brewhouses are designed to deliver best-in-class brewing quality, efficiency, yield and simplicity for today's rapidly growing craft breweries. Standard configuration of 3-Vessel brewhouse design consists of an individual Mash Tun and Lauter Tun with an integrated Brew Kettle & Whirlpool. Utilizing automation & controls to maximize efficiency and versatility, these 3-Vessel systems are the perfect solution to meet your brewing needs.
3-Vessel Brewhouse systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility.
Typical size range: 5 BBL, 7 BBL, 10 BBL, 15 BBL, 20 BBL, 30 BBL (custom sizing & configuration available)

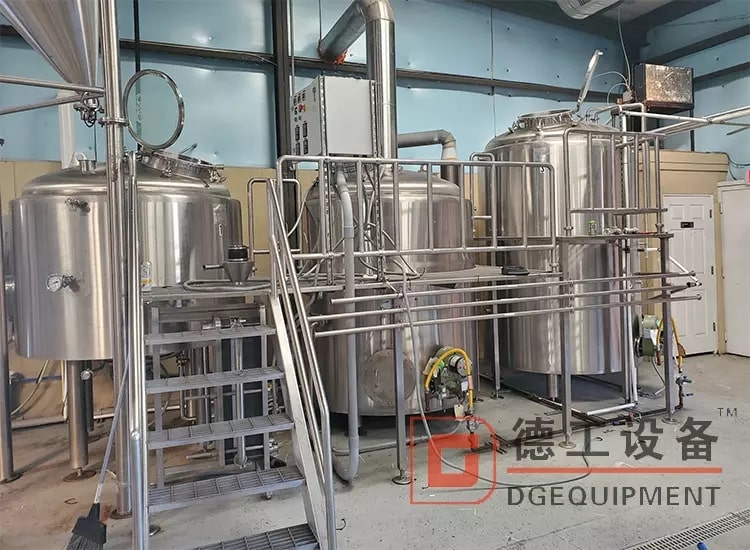

3 vessel brewhouse system
High Gravity Mash Tun
Low pressure steam jacket with PLC controlled temperature control for optimum profile capability
VFD speed and function controlled, custom engineering mash mixer for low sheer, efficient mash mixing designed to handle high gravity brews
High Gravity Lauter Tun designed to handle larger grist loads
Integrated, VFD speed and function controlled rake system designed to cut and lift grain bed to maximize extract yield, reduce lautering time and automate grain out processes
Custom designed wedge wire false bottom designed to maximize yield and minimize grain pass-through
Grain out access manway for easy and efficient grain out processing
Wort collection design for uniform bed formation and high yield extract collection
Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control
Custom designed vessel optimized for rapid boiling and efficient and high yield trub separation
Low pressure steam jacket with PLC controlled temperature control for efficient and vigorous boil control
Tangential inlet for proper centrifugal force for efficient trub separation
Semi-Automated Controls
Sanitary Pumps with VFD Controls
Stainless Steel Plate Heat Exchanger
Manual Sanitary Butterfly Valves
Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
Some elements in brewhouse system
Heat exchanger; Brewhouse pump
Transfer pipelines for pumped wort into another tank
ABB motor;Siemens motor;welding
| Get a quotation for your brewery |
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
