| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Heating method: | |
| Quantity: | |
Components of Commercial Beer Brewing Equipment
Brewhouse, Pumps & Heat Exchanger.
Beer Fermenters & Brite Tanks.
Carbonation, Control & Monitoring.
Beer Kegs, Dispensing & Packaging.
Filtration.
Fittings & Valves.
Ingredients, Yeasts & Additives.
| 300l Brewhouse system: |
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. Our company accepts special design for these variations.

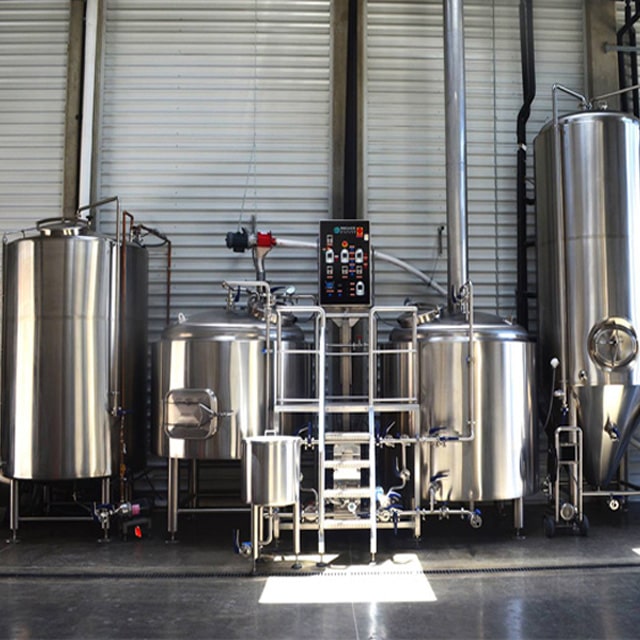

2 Vessel brewhouse with grain chute
Mash Brew Kettle/Lauter tank
Use – mashing, mixing and wort boiling.
Appearance - Cylindrical, top domed with conical inner bottom.
Insulation- polyurethane 70 mm
Complete pre-piped, pre-wired and test run prior to shipment.
Lauter tank equipped with plow knife (raker knife), ABB motor, 2.2KW, with motor cover and polished
Side mounted grain outdoor with grain chute
Easy clean and detachable sparging spray ring
Laser cutting T-wires false bottom (filter), plate gap: 0.7; Material is Stainless steel 304.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-Top domed lighted sight glass.
-Quick installed termo sensor PT100 connected to multi segments programmable controller
-Quick installed modular steam outlet condensator assembled with 0.5kw centrifugal water recycling pump for energy and water saving.
-Top domed cylindric hops grant for online hops insertion, adopted with wort circulation for effective mixing.
- Sanitary centrifugal mash pump with VDF controller.
- Quick installed Spray CIP ball.
- Outlet/darainage connections
- Inlet connections
Boiling/whirlpool tank
Heating method: electri heating
Tangential whirlpool inleta
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad
Our brewhouse system separated to 2 vessels, 3 vessels and 4 vessels, capacity from 100L to 20000L, use electric or steam heating. Semi-automatic control and easy to operate.
| Fermentation Tank (with top manhole) |
Dimple jacket fermentation tank
Net capacity: 300L, Gross capacity: 370L;
Material: Stainless steel 304
Inner thickness:3mm
Extenal cylinder – 2 mm; Jacket:1.5mm
H = 1850mm, d = 840mm, Thermal insulation (polyurethane foam) – 70 mm;
Configuration:
Glycol jacket: dimpled plate on cone and side
Cooling media: glycol water or alcohol water
60° degree cone bottom
CIP arm with 360°coverage CIP spraying ball
Dry hops port on the top of tanks with solid end cap
Full sanitary sample valve
Mechanical relief valve 2bar on CIP arm
Shockproof pressure gauge on CIP am
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
PT100 Temperature sensor for high accuracy temperature control
Design pressure 0.3MPa
Working pressure 0.15Mpa
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad and legs support
Complete valves, fittings and all parts
Fermenters and beer keg
| More information: |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Wooden box packaging,Load into container and fix
Our certification
After-sales service：
After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
Contact information:
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
