Craft Brewery Equipment 10HL Stainless Steel And Exterior with Red Copper Commercial Automatical Beer Brewing Machine for Sale

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Our automation options range from semi-auto to what we call our “full-auto” package. Our Semi-auto control system is a clean and simple control panel needed to regulate temperature and control pumps and motors.

Thickness of material (mm):
Insulation:
Material:
fermentation tank Manhole:
Quantity:
  • DGET-10HL
  • DGET
  • 8438400000

We outfit 2, 3, 4 vessel and combination “combi” systems. Tank design, platform design, automation features and process piping are a few of the multiple ways in which DGET designs for space,for budget and for expansion.


QQ截图20200407153328_副本-min

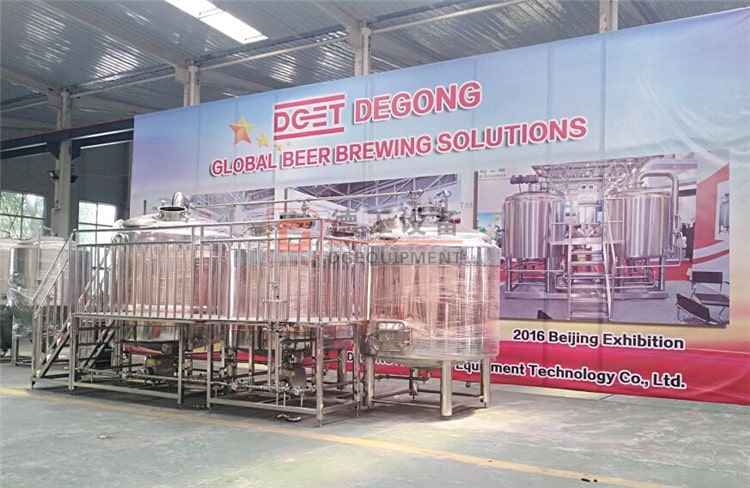

Stainless steel brewery equipment and outer with red copper


Work platform with staircase and guardrails. The central layout provides easy access to all workstations and connections, as well as great control and supervision over the entire work process. The anti-slip and washable surface provides a safe work environment and easy maintenance.


Brewhouse system:


MILLER_副本-min

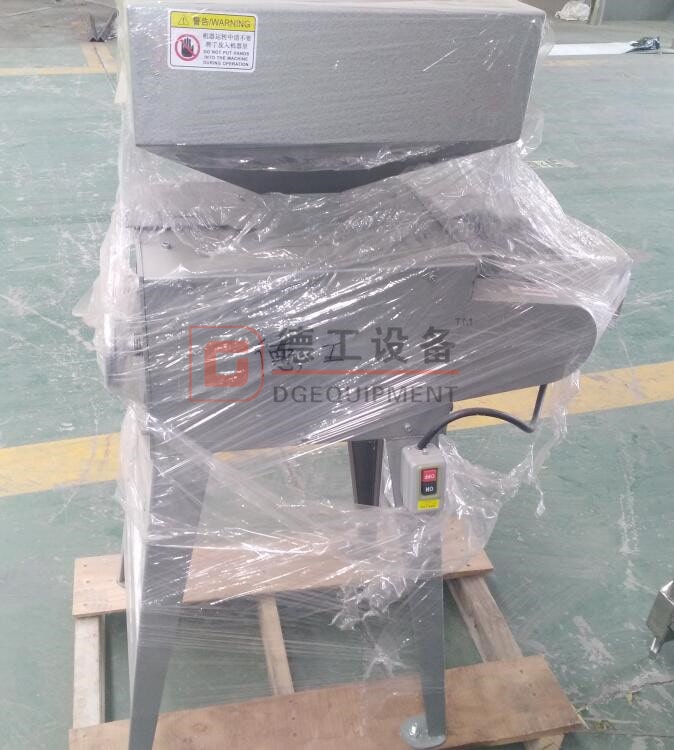

Miller:

300Kg/h-500kg;

Breaker Roll Type;Adjustable mill degree;

Power:0.75kw;Voltage:380V; Model:Fm-011;

Faster Roller Speed: 700rpm

Crushing Particle Size: Adjustable

Ratio of Magnetic Metal Material:≤0.003g/kg

Temperature of Rollers after Production:≤56℃


Features of brewhouse:

- All tanks are made of food grade stainless steel 304.

- Adopting advanced world famous brand components in electric parts and operation parts.

- ABB motor for wort pump

- ABB/Siemens motor for raker and blender

- PLC automatic control method

- The structure of brewhouse: 2-vessel, 3-vessel or 4-vessel (Optional)

- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm

- Insulation: Polyurethane   thickness: 100mm

- Working pressure: 1.5-2.0 bar      Design pressure: 3.0 bar

- Inner surface treatment: welds grinded to Ra0.4µm without dead corner

- Outsourcing surface: weld polishing processing

- Heating method: steam; electric; direct fire (Optional)

- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.

- TC connected CIP arm with 360° coverage spraying ball

- Filter board gap is less than 0.7mm

- Dished top and conical bottom

- Stainless steel top mounted manhole and door

- 4pcs completely SUS304 heavy duty legs with leveling

- Two stage plate heat exchanger


004_副本-min

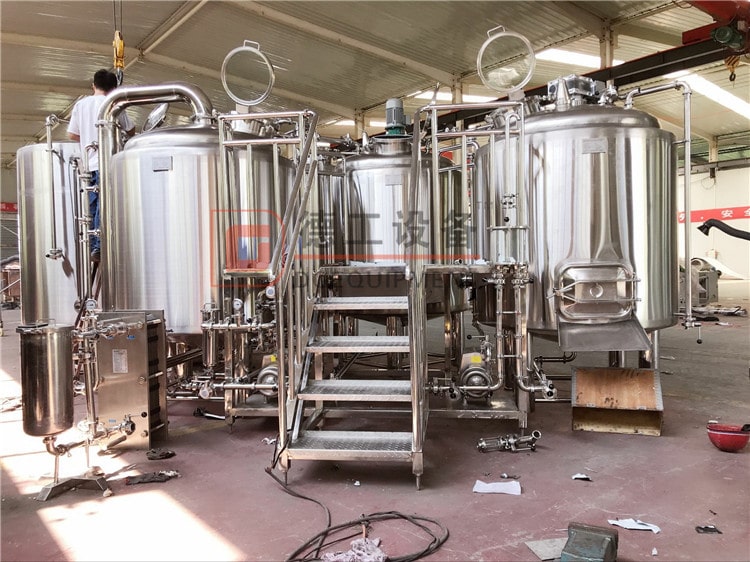

2 vessel stainless steel brewhouse system


- Mash & Lauter tun: Brewing & sparging water blending port, VFD rake, with wort grant, mash hydrator, etc

- Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating

- Hot water tank: Steam heating, direct burning or immersion electric heating.

- Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc

- Cellars: Singe, double or multi-time brew size fermenters and BBT

- Cellar Control: Automatic Temp. control with solenoid valves

- Portable CIP cart: with an electric immersion Heating alkali tank and a sterilization tank, automatic Temp. control and a washing pump, etc

- Customized design of tanks, production flow, etc as per customers’ brewing process and beer features.

- Customized arrangement of brewhouses’ vessels, in rows, angle or square to fit the customers’ existing buildings.

- Dismountable basic frames with operators’ platform and pre-built piping for convenient site installation.


糖化上出糟_副本-min

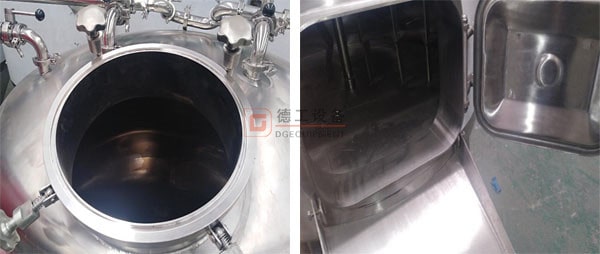

Top manway and spent grains hatch


管道泵_副本-min

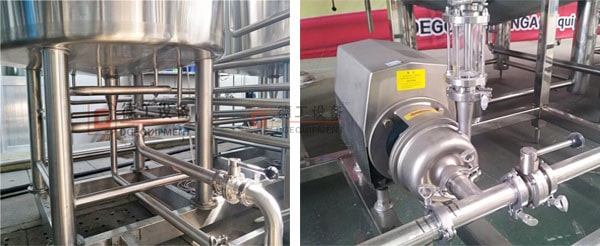

Pipeline and trasfer pump


控制面板楼梯_副本-min

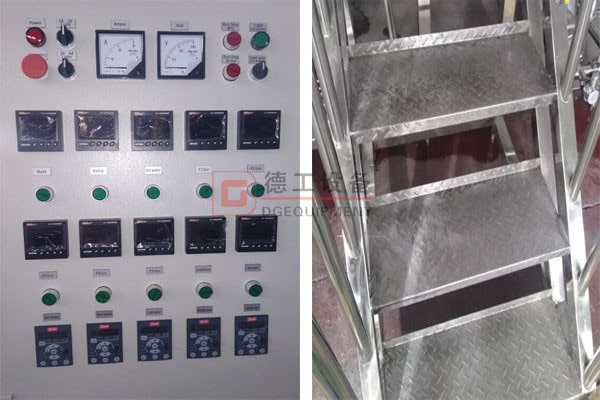

Control panel and stairs


Fermentation system:

FA_副本-min

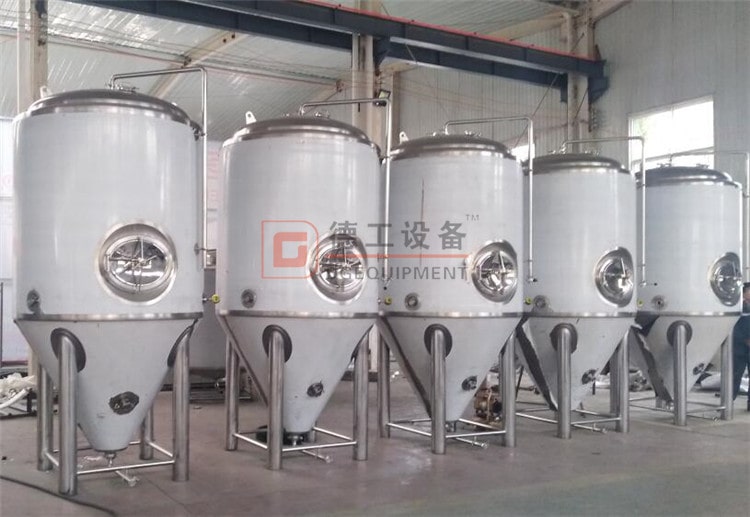

1000L fermentation tanks

Fermentation tank features:

- All tanks are made of food grade stainless steel 304.

- Certified stainless steel material

- Adopting advanced world famous brand components in electric parts and operation parts.

- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm

- Insulation: Polyurethane   thickness: 100mm

- Insulated with high efficiency polyurethane foam

- Working pressure: 1.5-2.0 bar      Design pressure: 3.0 bar

- Cone 60° resist compression design

- Fermentation pressure controlled by pressure gauge automatically.

- 100% TIG welding with pure argon gas shield.

- Quality TIG welding: for piping, quality TIG welding with sanitary interior shapes

- Glycol jacket: dimpled plate on cone and side

- Heat exchange area: 2.08 square meter

- Interior surface: mirror polishing

- Exterior surface: oil bushed finish

- Interior full polished to Ra0.6µm without dead corner

- TC connected CIP arm with 360° coverage spraying ball

- Sanitary side mounted manhole with pressured door

- Sanitary construction seams with sanitary interior polish

- Main accessories: mechanical type safety valve, sampling valve, pressure gauge, temperature probe, racking arm, leveling tube, solenoid valve

- Hop port on top, PVRV and pressure relief valve, qualified butterfly valves, height adjusting foot pads

- The fermenters and bright beer tank with PU as cooling jacket to keep cool.

- Name-brand, high-quality valves and fittings included with every tank


QQ截图20200407153408_副本-min

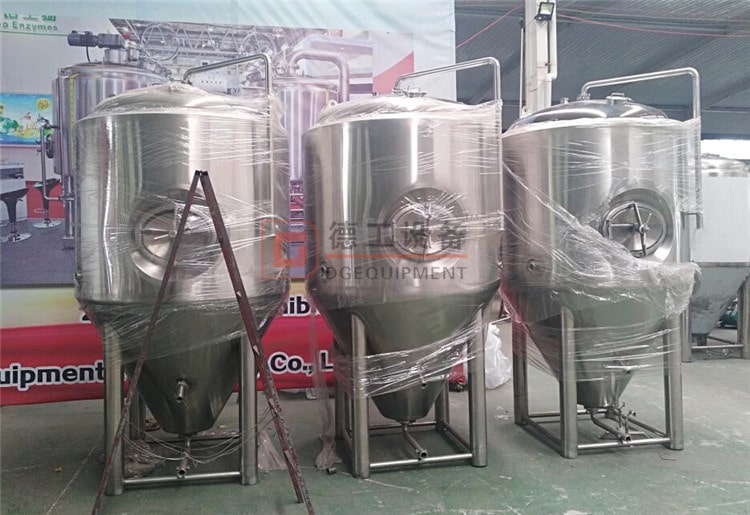

Fermenters in factory


QQ图片20190927111701-min-min

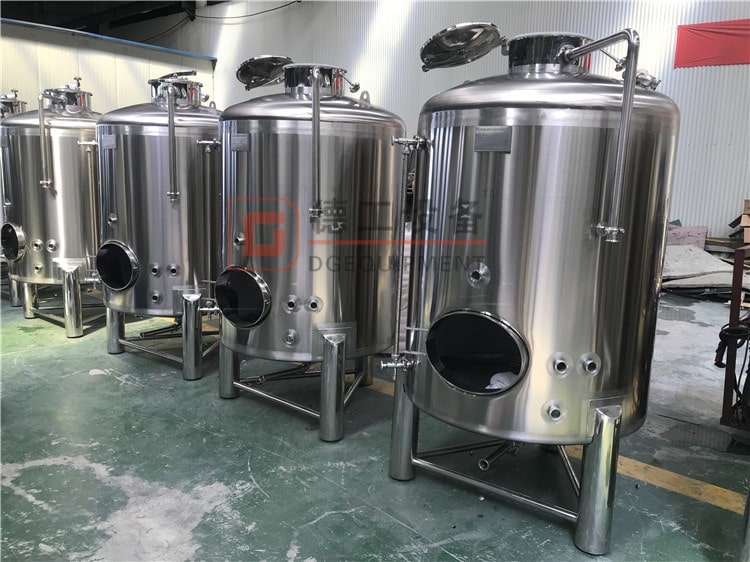

Stainless steel brewery


Our company:

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

证书2-min

Certification


working-min

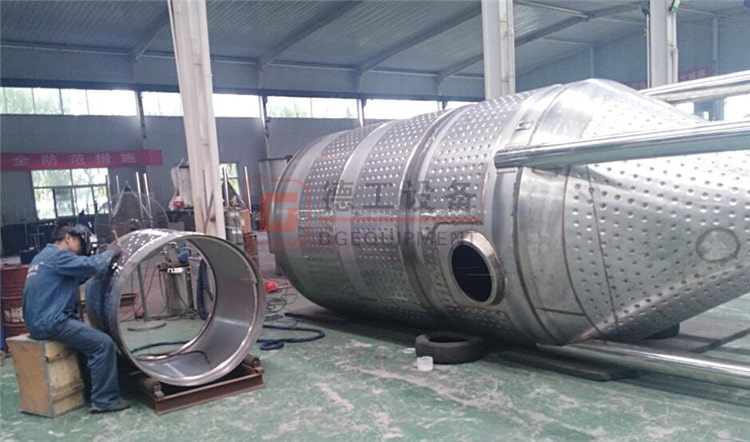

Technician at work


装集装箱-min

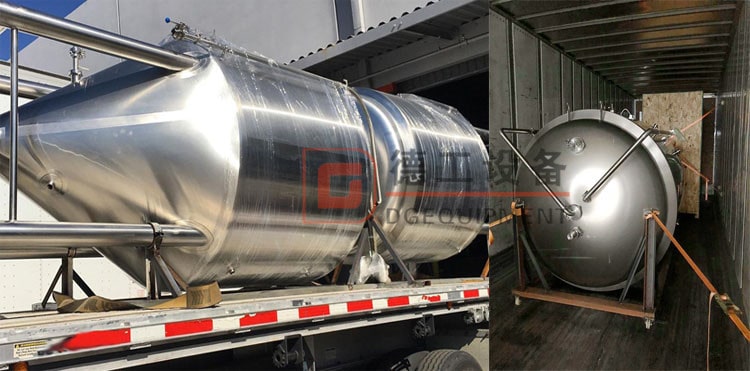

Beer brewery equipment is preparing to load
