Thickness of material (mm): | |
---|---|
Insulation: | |
Material: | |
fermentation tank Manhole: | |
Availability: | |
Quantity: | |
DGET-1000L
DGET
8438400000
We outfit 2, 3, 4 vessel and combination “combi” systems. Tank design, platform design, automation features and process piping are a few of the multiple ways in which DGET designs for space,for budget and for expansion.

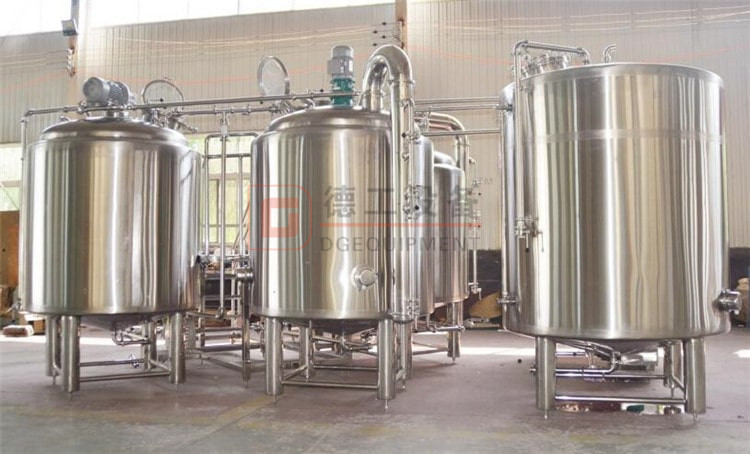

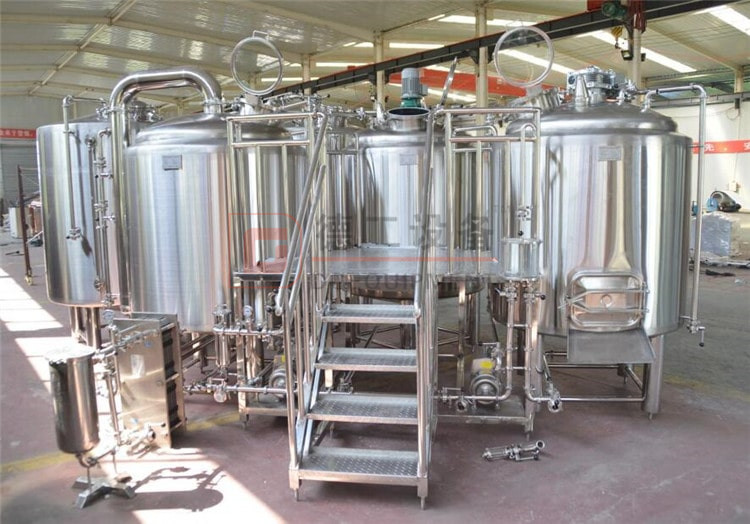

2 vessel brewhouse with hot water tank
Work platform with staircase and guardrails. The central layout provides easy access to all workstations and connections, as well as great control and supervision over the entire work process. The anti-slip and washable surface provides a safe work environment and easy maintenance.
Material: Stainless steel 304
Brewhouse system 2 vessel : |
Combined mash/lauter tank .
Net capacity: 1000L, Gross capacity: 1400L
Stainless steel 304 thickness:Inner = 3mm; External = 2.0mm
Dish heads on top (Stainless steel 304), mirror polished outside
TH=3.0mm (the head outside is mirror polish).Н = 2500mm, Ø = 1400mm
Thermal insulation (polyurethane foam) – 100 mm;
Laser cutting T-wires false bottom (filter), plate gap: 0.7; Material is Stainless steel 304.
Top manhole: Round glass manhole, print the customers logo(optional), Diameter: 350mm;
Heating method: steam heating
Filter method: Suction filtration by speed controlled filter pump.
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
Grain rake with VFD controlled motor and gear reducer .
The use of advanced inverter control of motors, energy-saving mute.
The Motor speed can be controlled and adjusted by transducer.
4pcs completely Stainless steel 304 heavy duty legs
Brewery equipment back
Kettle/ Whirlpool tank
Net capacity: 1000L, Gross capacity: 1400L
Stainless steel 304 thickness:
Inner = 3mm; External = 2.0mm
Dish heads on top (Stainless steel 304), mirror polished outside
TH=3.0mm (the head outside is mirror polish).Н = 2500mm, Ø = 1400mm
Thermal insulation (polyurethane foam) – 100 mm;
Top manhole: Round glass manhole Diameter: 350mm .
Heating method: steam heating
Tangential whirlpool inlet
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
Steam condenser with spray nozzles
Side tangential whirlpool inlet TC
4pcs completely Stainless steel 304 heavy duty legs
Two stage plate heat exchanger and yeast add tank

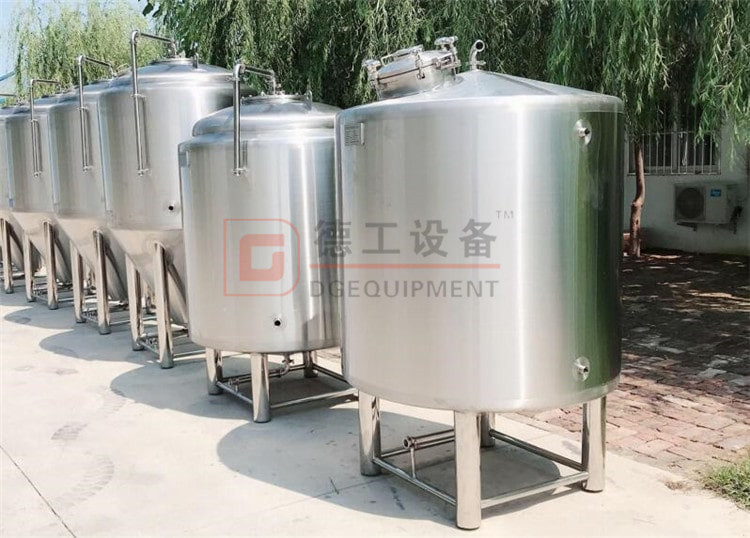

Hot water tank
Gross volume =2000L,
Pump for hot water and wort
Material: Inner(SUS304),thickness: 3.0mm; Out(SUS304),thinckness:2.0mm;
External-Jacket(SUS 304 thickness: 3.0mm;
Cylinder (sharp type, SUS304), thickness: 3.0mm.
Inner surface treatment: welds grinded to Ra0.4 µm without dead corner.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Glass top manhole
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
Thermowell for high accuracy temperature sensor
Nano brewery equipment for sale

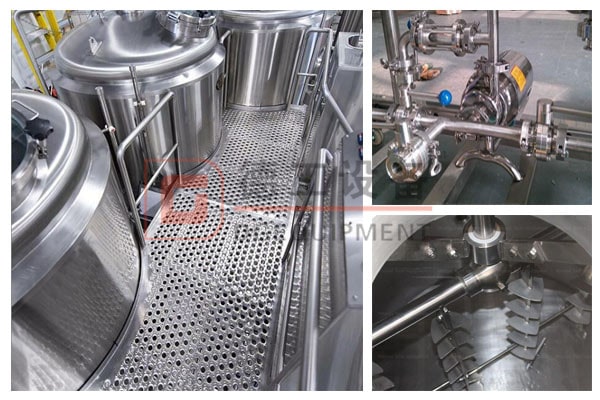

Stainless steel work platform,transfer pump and grain raker
Fermentation tank features: |
High quality stainless steel beer fermentation tanks
304 SS construction
sanitary polish SS exterior finish
Jacket pressure:design pressure:0.3Mpa;working pressure 0.15Mpa
Reinforced stainless steel legs with adjustable height for leveling
Side and cone cooling jackets
Sample valve
Pressure/vacuum relief valve
Temperature gauge port
Temperature sensors
Side man way door (top manway optional)
Racking arm
Dry hop port
CIP arm and rotating spray ball 360° of coverage
Gas arm with pressure gauge
Lifting Lugs
Ladder hooks
Butterfly valves included
Uni-tank option available for carbonation stone assembly

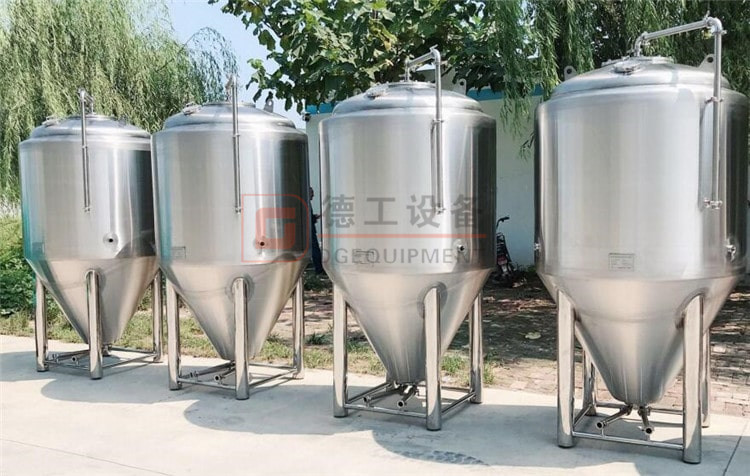

Cylindrical-cone fermentation tank and Glycol tank
Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Certification
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Beer brewery equipment is preparing to load
Contact information: |
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
