Complete 10 BBL Microbrewery System used in brewpub beer equipment

We are not catalog prices - all quotes are customized based on your specific requests and needs.

From the very first drawings and engineering up to fabrication, quality control and finishing, we work collaboratively with our customers to help them find ways to improve their existing plans and get the very best out of our products.

We look at every aspect of your project including measurements, shapes and materials used to unlock more value and offer you the best protection for achieving your time and budget goals. We continuously challenge ourselves and raise the bar to engineer solutions that make our stainless-steel pressure vessels even more functional and efficient. You can count on us to make strong, corrosion resistant and lasting pressure vessels that reflect the beauty of stainless steel, in any part of the processing industry.

10BBL brewing system

Plate heat exchanger;wort pumps;false bottom

10 BBL 2 Vessel  Semi-Automatic all Stainless Brew House Complete with Wide Mash/Lauter Tun with Top Mounted Grist Hopper, Boil Kettle/Whirlpool, Rake System.Semi-automatic Control Panel, Frequency Drive, False Bottom, Sparging System, Over-Sized Heat Exchanger

(1)  10 BBL Stainless Hot Liquor Tank by steam, Top Manhole, CIP Spray Ball,  Centrifugal Pump

(1) 10 BBL Stainless Cold Liquor Tank by steam, Top Manhole, CIP Spray Ball,  Centrifugal Pump

 (6) 10 BBL Jacketed Cone Bottom Fermenters, Side Manholes, RTD Ports, CIP Spray Balls It can equipped 20BBL fermentation tanks

(3) 10 BBL Stainless Severing Tanks, Side Manholes, RTD Ports, CIP Spray Balls

Stainless  Centrifugal Transfer Pump, Variable Speed Control,

Grist Mill, Dual Rollers,

Multi Stage Package Chiller, Glycol Pump

1000L/H Water Filter

Temperature Control Panel

Flexible Auger Feeder, Glycol Valves, Flow Meter, RTD Sensors, Thermometers, Brewery Hose and Fittings

20BBL fermentation tanks

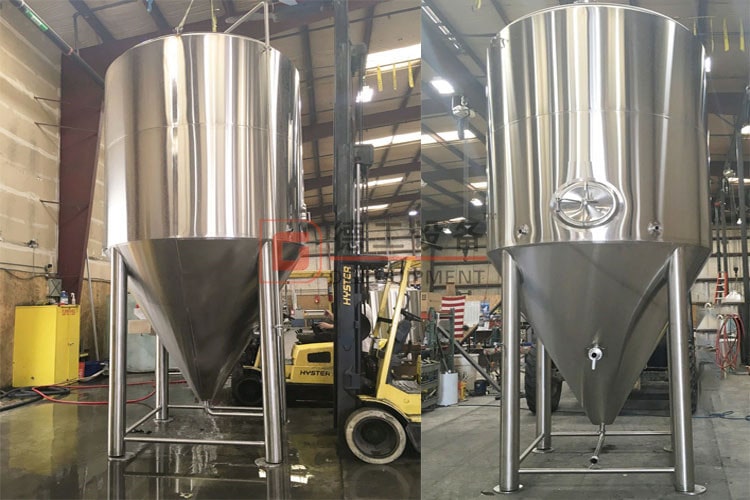

Fermentation  tank features

Fermentation tank is made of high-quality stainless steel (optional 2B or high-precision surface polishing),exterior with 2mm high quality stainless steel (2B or optional high-precision surface polishing),the intermedium insulation is made of high-performance polyurethane. It can also be designed and manufactured as per user's request.

Dish head/ Cylinder/60° cone bottom(can be adjusted)/ shell jacket(one or two sections)/insulation both on shell and bottom / with adjustable legs.

Connections:PVRV / CO2 outlet / coolant inlet and outlet / Pt 100 interface / sample valve / side manhole/

CIP interface / wort inlet and yeast outlet / elbow beer outlet / add dry hops dozing(filling) pipe.

Volume: 1 BBL- 200 BBL

Dish head;discharge;heavy duty legs

Brite beer tanks

Our bright beer tanks – (BBT)  (are also known as conditioning tanks/vessels) can either be horizontal or vertical standing tanks built according to ASME pressure vessel standards. They are designed and polished thoroughly to hygienic standards to allow complete cleaning. We equip our tanks with dimple jacket and insulate with polyurethane, exterior cladding in stainless steel.

We have has supplied numerous craft brewers with bright beer vessels, as well as large international brands.

All pressure equipment is tested at DEGONG FACTORY's premises, using certified equipment.

Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
