Commercial 2000L Brewery equipment stainless steel Beer Production Line for Sale

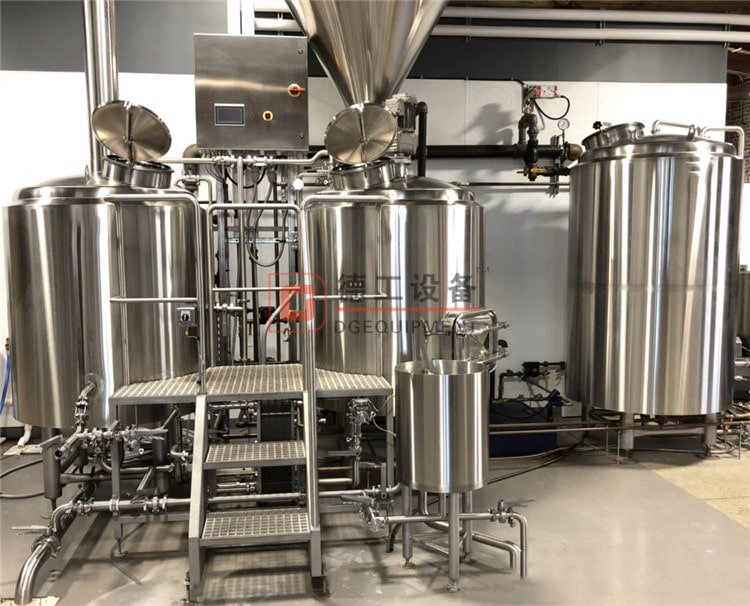

Commercial brewing equipment with hopper

Consistently producing high quality beer must be the first goal of any brewer, and the equipment you purchase has to be able to provide that. 2-vessel brewhouse mostly in the volume from 100L to 20000L,which is suitable for a restaurant .The vessels, process, volume and configuration are custom-designed to satisfy the client usage and fit the client site.2-vessel brewhouse is most widely commercial-used and with high performance-price ratio.

The system can be heated by steam,electricity or gas;and controlled by manual,semi-automatic or full automatic;and equipped with rake system or not.The mainstream of two-vessel brewhouse is steam heated and manual controlled system.

Spent grains port

Brewhouse Details:

. 2,3,4 and 5 vessels can be avaiable

. All the tanks materials are made by 304 Stainless steel

. 304 stainless steel operate platform and stairs

· Mash / Lauter Tun Rakers

Boiling/whirlpool tank with whilpool port and stir blades

. Glass manways

. 100L-20000L volume system can be available

· Integrated CIP System

· Hot Liquor Tank –Designed and Sized for Double Brew efficiency

· Cold Liquor Tank –Fully insulated and integrated

. Grain mill and screw conveyer (optional)

. Plate heat exchanger

. Stainless steel 304 pump with ABB or Siemens motors

. Automatic and Semi-automatic control for choice,PLC or mobile control can be available

. All brewhouse pipelines are used automatic argon protect welding.

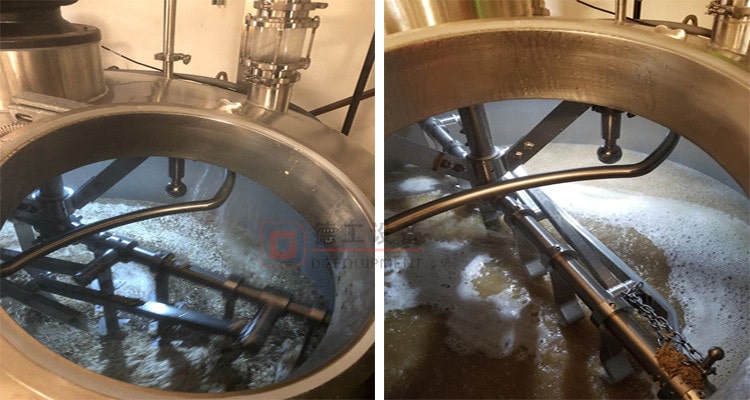

View the mashing process through the manhole

These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.

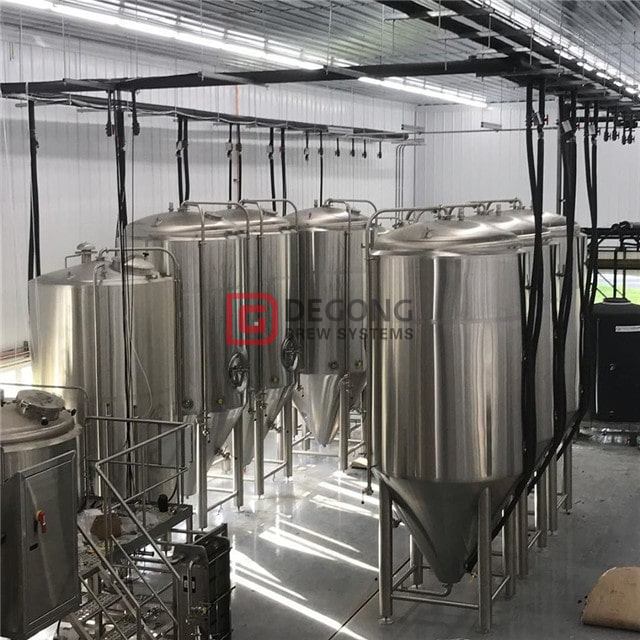

Fermentation tanks in brewery

Stainless steel fermentation tank

Cylindro-conical fermentation tank details:

-Food grade 304 stainless steel construction, interior/exterior

- Dual zone dimple cooling jacket with glycol inlet and outlet

- Sanitary interior finish with all welds ground and polished

- Fully welded exterior

- Polyurethane insulation for cooling jacket on sidewall and bottom

- Side shadowless manway door (optional top manway)

-60 degree conical bottom with 25% free head space

- CIP arm and spray ball

- Racking port with Rotating racking arm

- PRV

- Pressure gauge

- Sample valve

- 4 legs with cross braces and adjustable feet

- 3 bar design pressure

- Tank valves and fittings

Beer keg(20L,30L,50L) for sale

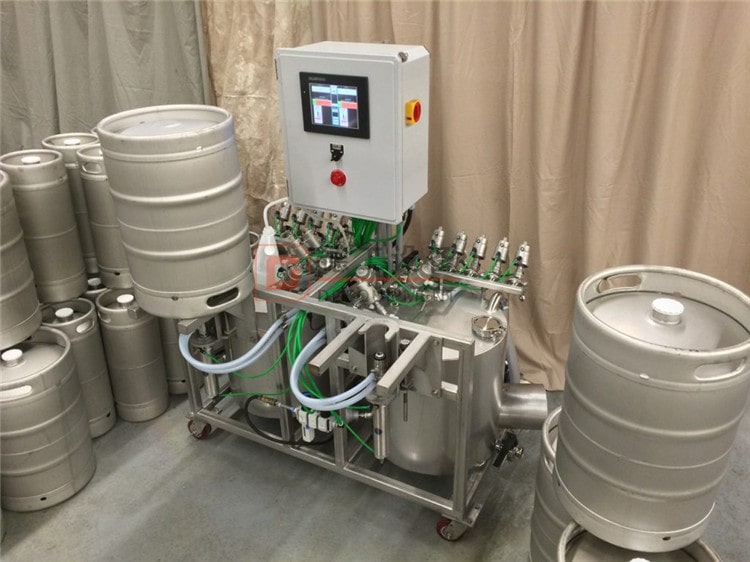

Keg washer

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

Our certification

3000L brewery case(Iranian partners)

Suitable for breweries, restaurants, bars, etc.

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

The cargo ready to load

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
