| Insulation: | |
|---|---|
| Material: | |
| Heating source: | |
| capacity: | |
| Quantity: | |
DGET-500L
DGET
8438400000

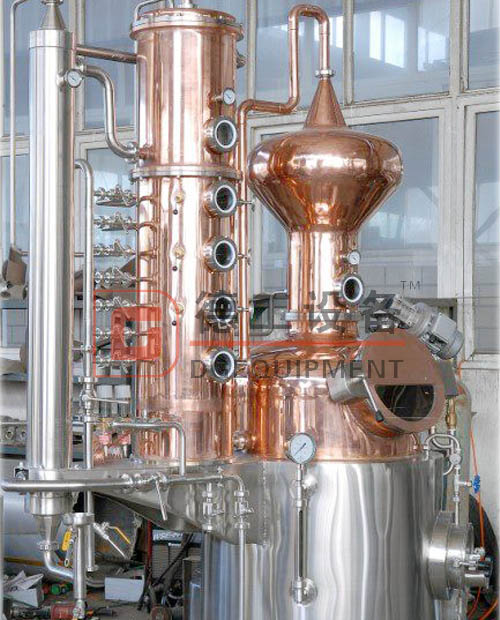

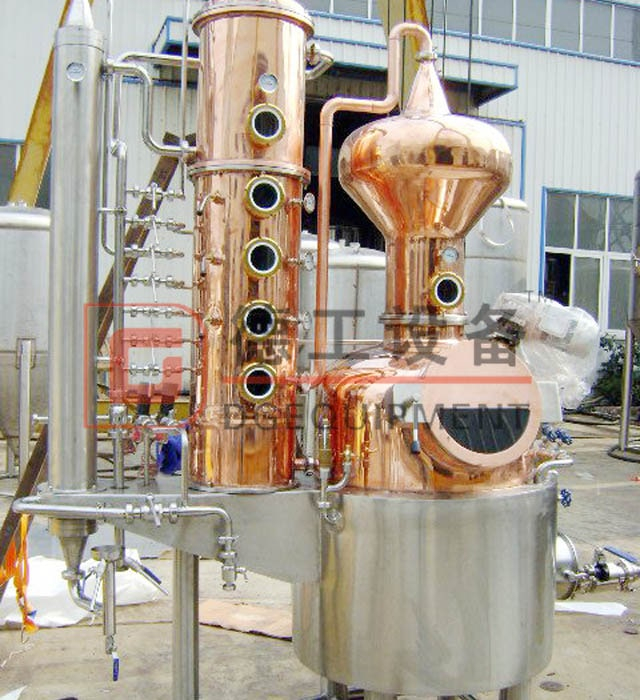

Have height restrictions? We can customize the still to fit your building. Customization is no problem. We can make this still with any size boiler or column diameter. The columns & condensers can be made with copper or stainless steel 500 L (132Gallon) copper whiskey,brandy distillation unit. Design and capabilities is for small to medium scale production of vapor infused spirits at maximum proof.
Structure: with jacket layer and insulation;
Material: red copper/SUS304 for choose
Heating method: by steam/electrical heating elements
Accessories: Top of pot with whole glass manway,inlet,safety valve,thermometer,pressure gauge and liquid return back hole.
Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.

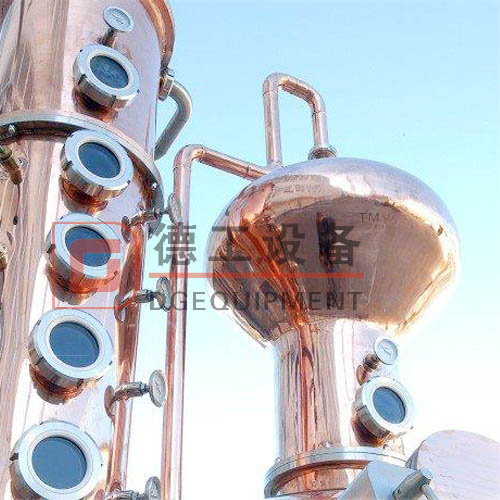

It is technically an expansion chamber,and it is usually a nearly spherical dome that sits directly on top of the boiler,it passes through a comparatively narrow passage way into the larger volume of helmet.This results in a sudden reduction in pressure,which helps hold back higher~boiling compounds while allowing desirable aromatics and flavors to continue up the column.this is the key to producing a truly excellent spirits.
The vapor from the helmet rises into the column, the column is positioned beside the boiler, the reason is the still would stand too high for most facilities if the column were stacked on top of the helmet,or even on top of the boiler.within the column are bubble cap trays,the vapor rises up the tube under the bubble caps and bubbles out from under the cap and through the standing liquid on each tray.The standing liquid overflows at a certain depth to the next tray bellow.
Normally,just a column support, no other function. If you want to support with more function.we can do tank type support,which be put at bottom of column as CIP tank and at bottom of condenser as spirit storage tank.inside of spirit storage tank,there also can make two small tank to storage head and tail,total 3 storage tank for head,heart and tail.
Have height restrictions? We can customize the still to fit your building. Customization is no problem. We can make this still with any size boiler or column diameter. The columns & condensers can be made with copper or stainless steel 500 L (132Gallon) copper whiskey,brandy distillation unit. Design and capabilities is for small to medium scale production of vapor infused spirits at maximum proof.
Structure: with jacket layer and insulation;
Material: red copper/SUS304 for choose
Heating method: by steam/electrical heating elements
Accessories: Top of pot with whole glass manway,inlet,safety valve,thermometer,pressure gauge and liquid return back hole.
Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
It is technically an expansion chamber,and it is usually a nearly spherical dome that sits directly on top of the boiler,it passes through a comparatively narrow passage way into the larger volume of helmet.This results in a sudden reduction in pressure,which helps hold back higher~boiling compounds while allowing desirable aromatics and flavors to continue up the column.this is the key to producing a truly excellent spirits.
The vapor from the helmet rises into the column, the column is positioned beside the boiler, the reason is the still would stand too high for most facilities if the column were stacked on top of the helmet,or even on top of the boiler.within the column are bubble cap trays,the vapor rises up the tube under the bubble caps and bubbles out from under the cap and through the standing liquid on each tray.The standing liquid overflows at a certain depth to the next tray bellow.
Normally,just a column support, no other function. If you want to support with more function.we can do tank type support,which be put at bottom of column as CIP tank and at bottom of condenser as spirit storage tank.inside of spirit storage tank,there also can make two small tank to storage head and tail,total 3 storage tank for head,heart and tail.
