DGET-1000L
DGET
8438400000
Customization service
Technology&drawing support
Swirl finish,satin finish or mirror finish
CIP pump and fittings are available
With beautiful appearance and high sanitary level.
with CE, UL,PED, SGS,TUV,ISO certificates

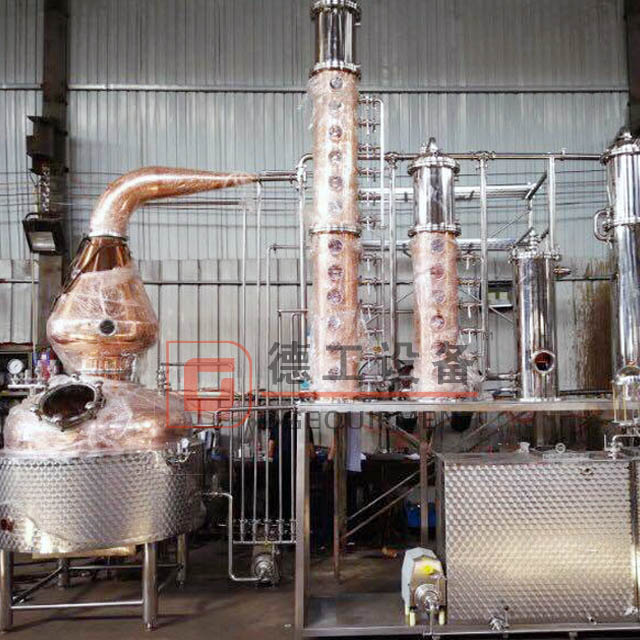

Still pot
Structure:with heating jackat and PU foam insulation
Material: red copper/SUS304 for choose
Heating method: by steam/electrical heating elements
Accessories:Top of pot with whole glass manway,inlet,safety valve,thermometer,pressure gauge and liquid return back hole etc.
Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
Helmet(Goose Neck and Lyne arm)
It is technically an expansion chamber,and it is usually a nearly spherical do me that sits directly on top of the boiler,it passes through a comparatively narrow passage way into the larger volumn of helmet.This results in a sudden reduction in pressure,which helps hold back higher boiling compounds while allowing desirable aromatics and flavors to continue up the column.this is the key to producing a truly excellent spirits.
Columns
1. All Copper Column/Stainless Steel Column
2.Fully adjustable bubble plates.
3.Sight Glass,CIP and Therm ometer at every plate.
4.Stainless Product Condenser
-The agitator makes our still pot ideal for distilling thick mashes, or on grain without scorching
-We can tailor the height and plate number for your specific application.
-Adjustable dephlegmator temperature for reflux control.
-Botanical Basket for making Gin, Schnapps, etc.
Bubble Caps in Distillation Column
The trays of distillation column we have improve it like photo,if the trays be full welded on column,there will have welding scar around of column,it's not good looking.All bubble caps and screw are made of red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.
