| Material: | |
|---|---|
| Heating method: | |
| Control system: | |
| Quantity: | |
DGET-300L
DGET
8438400000

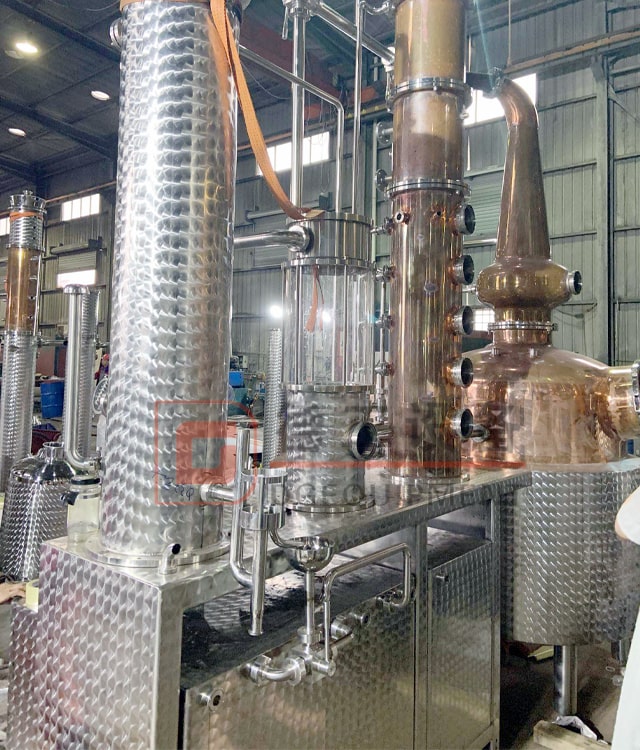

Distiller pot:
Still Pot Column
1.Stainless steel/Red Copper insulated steam kettle.
2.Copper dome and helmet for optimal vapor contact.
3.High pressure clean-in-place system throughout.
4.Agitator and drain.
5.All Copper Column/Stainless Steel Column
6.Fully adjustable bubble plates.
7.Sight Glass, CIP and thermometer at every plate.
8.Stainless Product Condense
Whisky head
1.Material: red copper
2.Thickness: 3mm
Gin basket
1. Material: Stainless Steel 304
2. Thickness: 3mm& 2mm
Dephlegmator
1. Tank materials: Stainless Steel 304
2.Thickness:3mm
3. shell and tube type
Column
1. Material: red copper
2. Thickness: 3mm
3. Red copper tubes,bubble caps, CIP cleaning balls, sight glass, clean valve, etc
4.copper bubble column
Together with:
Condenser
Collecting tank
Electric control cabinet
CIP system
copper distillation equipment accessories
Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form. Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.
Distiller pot:
Still Pot Column
1.Stainless steel/Red Copper insulated steam kettle.
2.Copper dome and helmet for optimal vapor contact.
3.High pressure clean-in-place system throughout.
4.Agitator and drain.
5.All Copper Column/Stainless Steel Column
6.Fully adjustable bubble plates.
7.Sight Glass, CIP and thermometer at every plate.
8.Stainless Product Condense
Whisky head
1.Material: red copper
2.Thickness: 3mm
Gin basket
1. Material: Stainless Steel 304
2. Thickness: 3mm& 2mm
Dephlegmator
1. Tank materials: Stainless Steel 304
2.Thickness:3mm
3. shell and tube type
Column
1. Material: red copper
2. Thickness: 3mm
3. Red copper tubes,bubble caps, CIP cleaning balls, sight glass, clean valve, etc
4.copper bubble column
Together with:
Condenser
Collecting tank
Electric control cabinet
CIP system
copper distillation equipment accessories
Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form. Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.
