Cellar tanks fermenting vessel brite tanks for beer fermenting and maturing 500L-200HL

Whether you are looking for a complete system or a single tank to expand your present operation, DEGONG builds equipment solutions tailored to meet your budget, your layout, and your investment goals.
Thickness of material (mm):
Material:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000

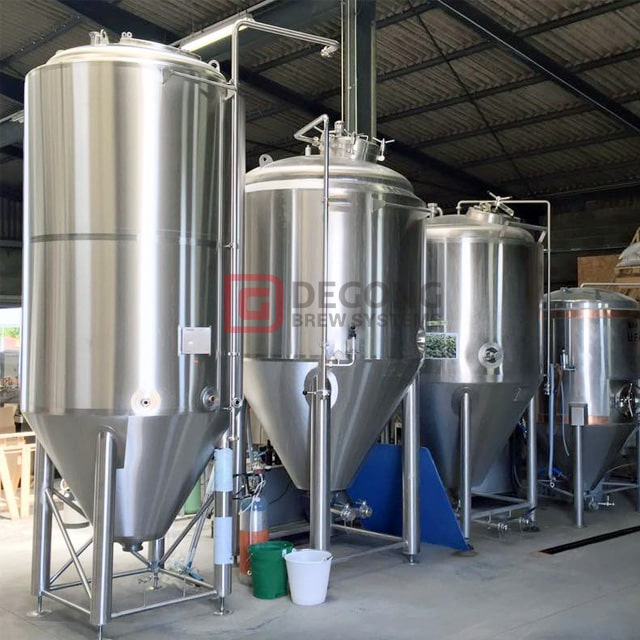

2000L Cellar tanks fermenters & brite tanks

750 套图3-min750 详情-min

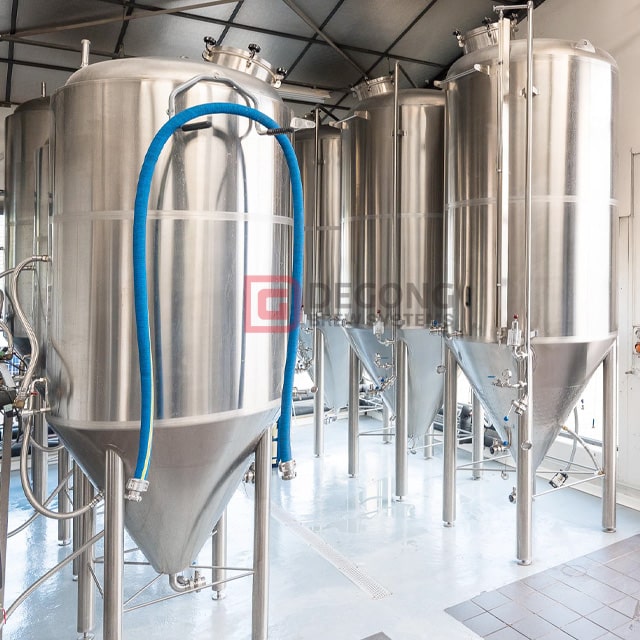

Excellent qualitu beer fermenters 2000L 1000L Medium size


Fermenters

Features Specification
Effective volume: Customized (from 500L to 20,000L)
Inner-Jacket(SUS304) thickness: 3mm
External-Jacket(SUS304) thickness: 2mm
100% high accuracy TIG welding
4xstainless steel legs with leveling foot pads
Design pressure 0.3MPa(3bar);
Working pressure 0.15Mpa(1.5bar)
Insulation layer: PU-thickness: 80-100mm
60 degree cone bottom
20% head space
Cooling jacket: Dimpled plate on cone and side

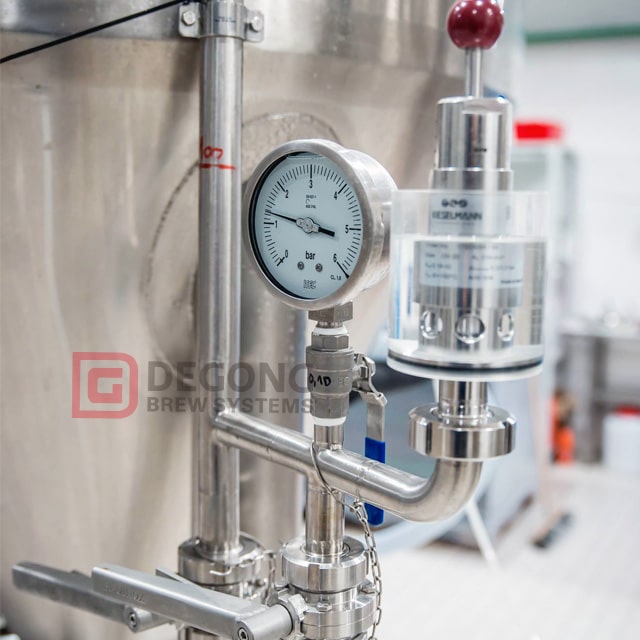

CIP Arm with Pressure Gauge
CIP 360°Spray Bal
Dry Hops Adding Port
Pressure Relief Valve
CO2 Blow-off Arm with Spunding Valve
Sample valve
Temperature Gauge
Carbonation Stone(Unitank)
Beer outlet+Racking Arm
Drain Port


brite tank2

stacked largering tank

Vertical and horizontal brite tanks can available


Brite tank:

Features Specification

Effective volume: Customized (from 300L to 100HL)

Inner shell(SUS304) thickness: 3mm

External shell(SUS304) thickness: 2mm

100% high accuracy TIG welding

4 x stainless steel legs with leveling foot pads

Insulation layer: PU-thickness: 80-100mm

150 degree cone bottom

20% head space

Cooling jacket: Dimpled plate on cone and side.

Design pressure 0.3MPa(3bar);

Working pressure 0.15Mpa(1.5bar)

Side Manway
CIP Arm with Pressure Gauge
Spunding Valve

CIP 360'Spray Ball
Level Tube
Sample valve
Carbonation Stone
Drain Port
Glycol water inlet/outlet
Options: Temperature Gauge, Horizontal type Brite tank

 750 详情9-min

 Tasting beer from Fermenters
