DGET-10HL
DGET
8438400000
We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
A set of brewhouse system
Part 1 | Malt grinder | 300 KG/H | 2 Roller |
Part 2 | Mash/boil tun | 10HL | With mechanical stirrer |
Lauter tun | 10HL | Filtration bottom | |
Whirlpool tank | 10HL | Separate vessel | |
Hot water tank | 10HL | Connect to plate heat exchanger | |
Plate heat exchanger | Hops filter in advance one/two grade exchanger | ||
Pumps | frequency | ||
Part 3 | Fermenter | 20HL | Follow drawing |
BBT | 20HL | Follow drawing | |
Yeast adding tank | 30L | ||
Part 4 | Control cabinet | For fermentation system and cooling system | |
Part 5 | Glycol water tank | 20HL | |
Chiller | 10 HP | ||
Part 6 | CIP system | 300L | With pump and controler moveable or not |
| Brewhouse system configuration: |
2 Vessel (Mash/Kettle/Whirlpool + Lauter)
3 Vessel (Mash + Lauter + Kettle/Whirlpool)
4 Vessel (Mash + Lauter + Kettle + Whirlpool)
Hot water tanks are equipped according to customer needs.
Combining the tun functionality into a single tank unit increases your efficiency and reduces your brewing equipment costs.
Brewhouse system deatils(weld,surface treatment and dish head )
False bottom and raker
Plate heat exchanger （two stage）
Brewhouse tank features:
1.Material: Inner(SUS304),thickness: 3.0mm;
2.External-Jacket(SUS 304 thickness: 1.5mm;
3.Cylinder (sharp type, SUS304), thickness: 2.0mm.
4. Inner surface treatment: welds grinded to Ra 0.4µm.
5. Insulation: Polyurethane-thickness 100mm.
6. Temperature way：Double metal thermometer
7. Outsourcing surface: Weld polishing processing
8.CIP 360 degrees Omni bearing cleaning
| Fermenter technical parameters |
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.
A row of conical stainless steel fermentation tank
Fermentation tank | Material:SUS 304 1.Inner thickness:3.0mm;outer thickness:2.0mm 2.Jacket thickness:1.5mm 3.Inner surface treatment:welds grinded to Ra 0.6um 4.Mirror surface finish inside. 5.Insulation: Polyurethane-thickness 100mm 6.cone 60 degree resist compression design,dripping 7.Heat exchange area: 5.1 m2 8.Vessel pressure:1.5 bar/3.0 bar |
Yeast adding tank | Adopts sus 304 stainless steel fine polished process,outer stainless polishing. Adding yeast sight glasses,aseptic air mouth,and wort pipe connection mouth. |
Fermentation tank with pressure gauge

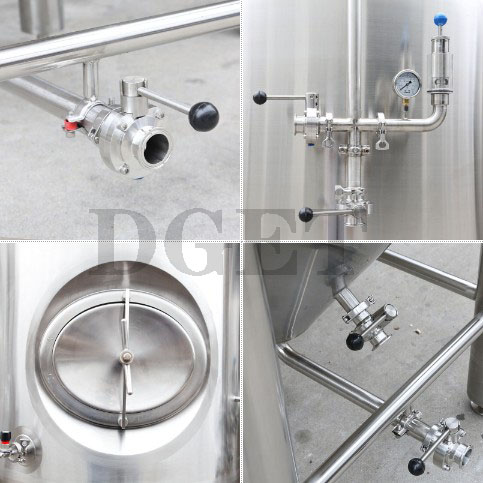

Drain outlet,pressure gauge,side manhole and raking arm
Our advantages:
Semi-automated or fully automated beer Brewing Craft systemModular construction for ease of planning an installation
Up to 10 brews per day dependent on configuration
Cost-effective production and simple commissioning
Many successful brewery installations globally
Support from Master Brewers throughout the entire project
Brewery tailored to your production needs, space and budget
| Our company: |
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
