Brewery 1000L Brewhouse 3 Vessels with Steam Steam Generator Superior Stainless Steel Construction

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.

A set of brewery equipment in cellar

Mash tun/Lauter tank

Net capacity: 1000L, Gross capacity: 1400L

Stainless steel 304 thickness:

Inner = 3mm;External = 2.0mm

Dish heads on top (Stainless steel 304), mirror polished outside

TH=3.0mm (the head outside is mirror polish).

Н = 2500mm, Ø = 1400mm

Thermal insulation (polyurethane foam) – 100 mm;

Configuration:

Lauter tank equipped with plow knife (raker knife), ABB motor, 2.2KW, with motor cover and polished

Side mounted grain outdoor with grain chute, size is 430*330mm

With semi-automatic grains removing plate

Easy clean and detachable sparging spray ring

Laser cutting T-wires false bottom (filter), plate gap: 0.7; Material is Stainless steel 304.

Top manhole: Round glass manhole, print the customers logo(optional), Diameter: 350mm;

Heating method: steam heating

Filter method: Suction filtration by speed controlled filter pump.

360° coverage CIP spraying ball

Temperature measurement way: PT100

100% TIG welded joints;

4pcs completely  Stainless steel 304 heavy duty legs with leveling pad

The two tanks height is same

Kettle/ Whirlpool tank

Net capacity: 1000L, Gross capacity: 1400L

Stainless steel 304 thickness:

Inner = 3mm;External = 2.0mm

Dish heads on top (Stainless steel 304), mirror polished outside

TH=3.0mm (the head outside is mirror polish).

Н = 2500mm, Ø = 1400mm

Thermal insulation (polyurethane foam) – 100 mm;

Configuration:

Top manhole: Round glass manhole, print the customers logo(optional), Diameter: 350mm .

Heating method: steam heating

Tangential whirlpool inlet

360° coverage CIP spraying ball

Temperature measurement way: PT100

100% TIG welded joints;

4pcs completely Stainless steel 304 heavy duty legs with levelling pad

Hot water tank

• Gross volume =2000l,

• Heating elements P= 4,5 kW*2 = 9 kW

• Pump for hot water

Wort pump

• Flow 5m3/h, lift 24m

• Sanitary Stainless steel 304

• Rev: 2880r/min Capacity:5000L/h

• Centralized hard-piped manifold for liquid flow

• Easily controlling

• Power: 1.5KW

• Speed controller, open impeller

• Ttri-clamp quick-installed

• Complete valves, fittings and all parts

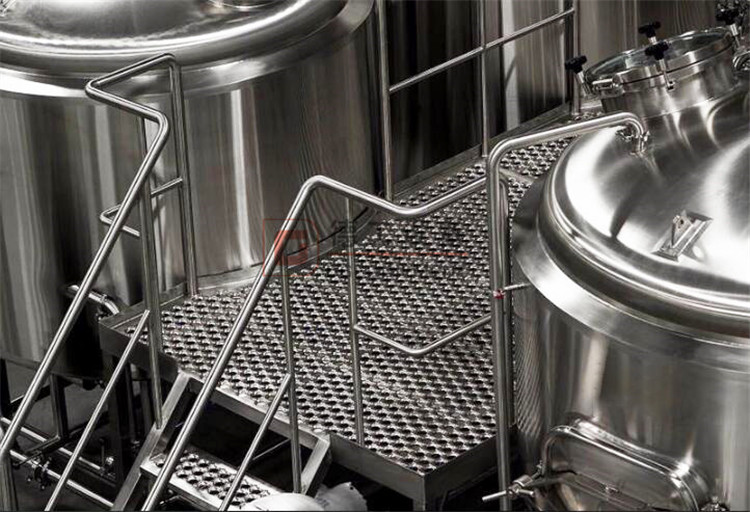

Work platform

• Material: Stainless steel 304

• Platform, stairs, handrails

Work platform

Hops filter

• Material: Stainless steel 304

• Filter net inside

Malt miller

• P = 300 kg /hour,

• Two adjustable rollers

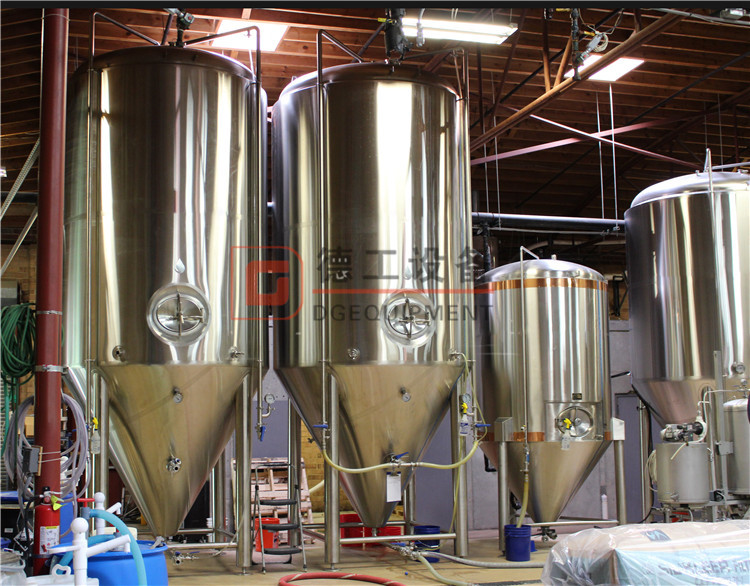

 Cylindrical-conical tank

Cylindrical-conical Tank

Net capacity: 1000L, Gross capacity: 1300L;Material: Stainless steel 304: Inner cone and head – 3 mm; Inner cylinder – 2 mm;  H = 2550mm, d = 1300mm,  Thermal insulation (polyurethane foam) – 100 mm;

Configuration:

Glycol jacket: dimpled plate on cone and side

Cooling media: glycol water or alcohol water

Stringent tank leakage test by water and pressured gas

Stringent jacket leakage test by water and pressured gas

60° degree cone bottom

CIP arm with 360°coverage CIP spraying ball

Side manway: 280*380mm.

Dry hops port on the top of tanks with solid end cap

Full sanitary sample valve

Mechanical relief valve 2bar on CIP arm

Shockproof pressure gauge on CIP am

Rotating racking arm and port on cone with butterfly valve

Tri clamp discharge arm with butterfly valve

PT100 Temperature sensor for high accuracy temperature control

Design pressure 0.3MPa

Working pressure 0.15Mpa

100% TIG welded joints;

4pcs completely Stainless steel 304 heavy duty legs with levelling pad and legs support

Complete valves, fittings and all parts

Brewery equipment at the bar

DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

Equipment Design and Coordination

DGET will size the boiler and chiller system to ensure they match each individual brewery layout. Piping schematics will be developed for construction by DGET or local contractors. We can also assist the architect and building engineering team with calculations and documentation during the permitting phase of construction.

Installation, Commissioning, Startup

DGET can be involved as much as needed in the installation process of the brewing equipment. A full crew can be on site to perform the full installation or a representative can be on site to oversee a local crew. After installation of the brewing system, DGET can be on site to provide start-up assistance of all the equipment and walk the brewers through the complete brewing process with a water boil. If needed, we would even be happy to assist with the initial batches of beer produced on your new system.

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

Loading cargo

DGET-brewing equipment for launching your own facility or private brewery for selling beer in selling points.

Warmly welcome your visit, please contact me quickly for more brewery equipment information.
